Flat angle cover, smooth

Item no. 6274491 | EAN 4012195656708

Item no. / Types

Width	76.5 mm

Product description

Product description

PVC flat angle cover, smooth surface.

Technical data

Technical data

Colour	Cream; RAL 9001
Cover mounting type	Internal
Halogen-free	no
Height	12 mm
Length	400 mm
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-15 °C
Protection rating	IP30
Protection rating IK code	IK08
Protective film	yes
Version for	Smooth
Width	76,5 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
GK-OTGFRW	76.5 mm	6274490	piece	1 piece
GK-OTGFCW	76.5 mm	6274491	piece	1 piece
GK-OTGFLGR	76.5 mm	6274492	piece	1 piece
GK-OTGFGR	76.5 mm	6274496	piece	1 piece

Downloads

Data sheet GK-OTGFCW / 6274491 , 0.15MB , pdf

Catalogue Geräteeinbaukanäle und Säulen , 28.91MB , pdf

EU declaration of conformity GK-OTGFCW / 6274491 , 0.13MB , pdf

UK Declaration of Conformity GK-OTGFCW / 6274491 , 0.14MB , pdf

Download

Label approval VDE symbol approval, Rapid 80 plastic device installation duct systems , 0.11MB , pdf

Download

Selection aid Overview, Rapid 80 device installation duct, plastic , 2.00MB , pdf

Safety data sheet PVC_Material data , 0.02MB , pdf

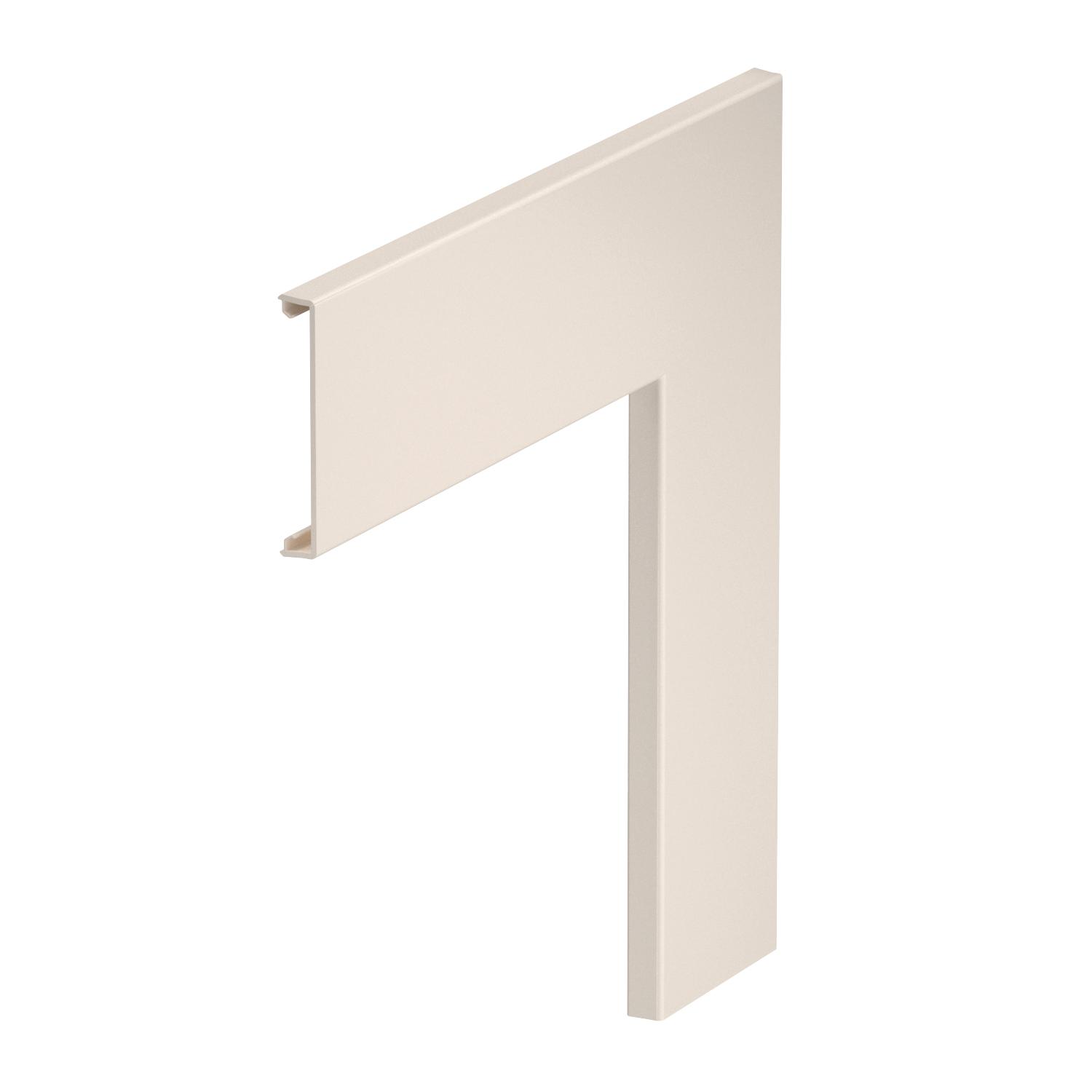

Product graphic GK-OTGFCW / 6274491, 29.80 kB, jpg

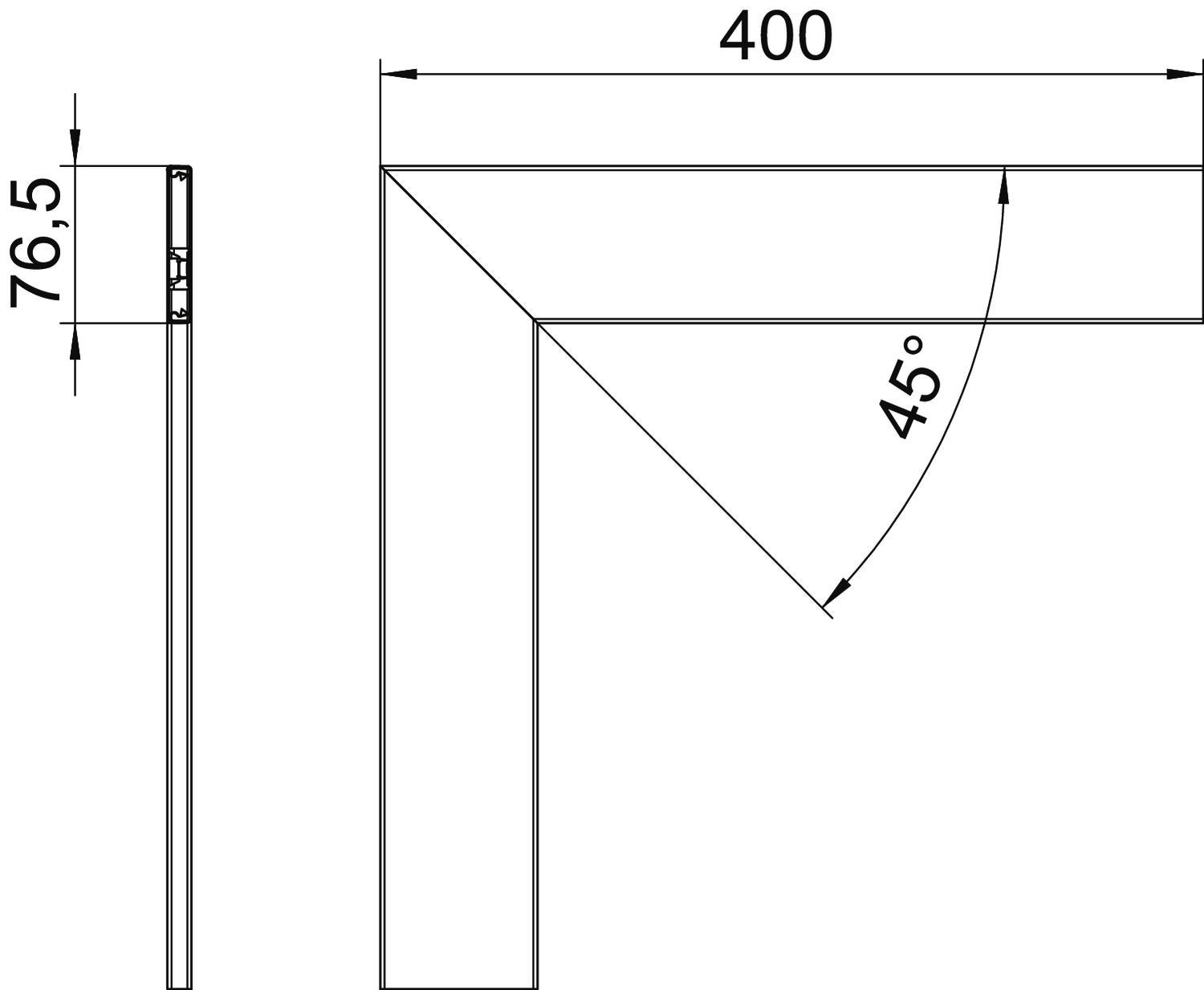

Scale drawing GK-OTGFCW / 6274491, 51.20 kB, jpg

No invitation to tender text is available for this product.
