Flat angle cover, trunking type WDK 10030 | 30 | Cream; RAL 9001
morepic-1 morepic-2

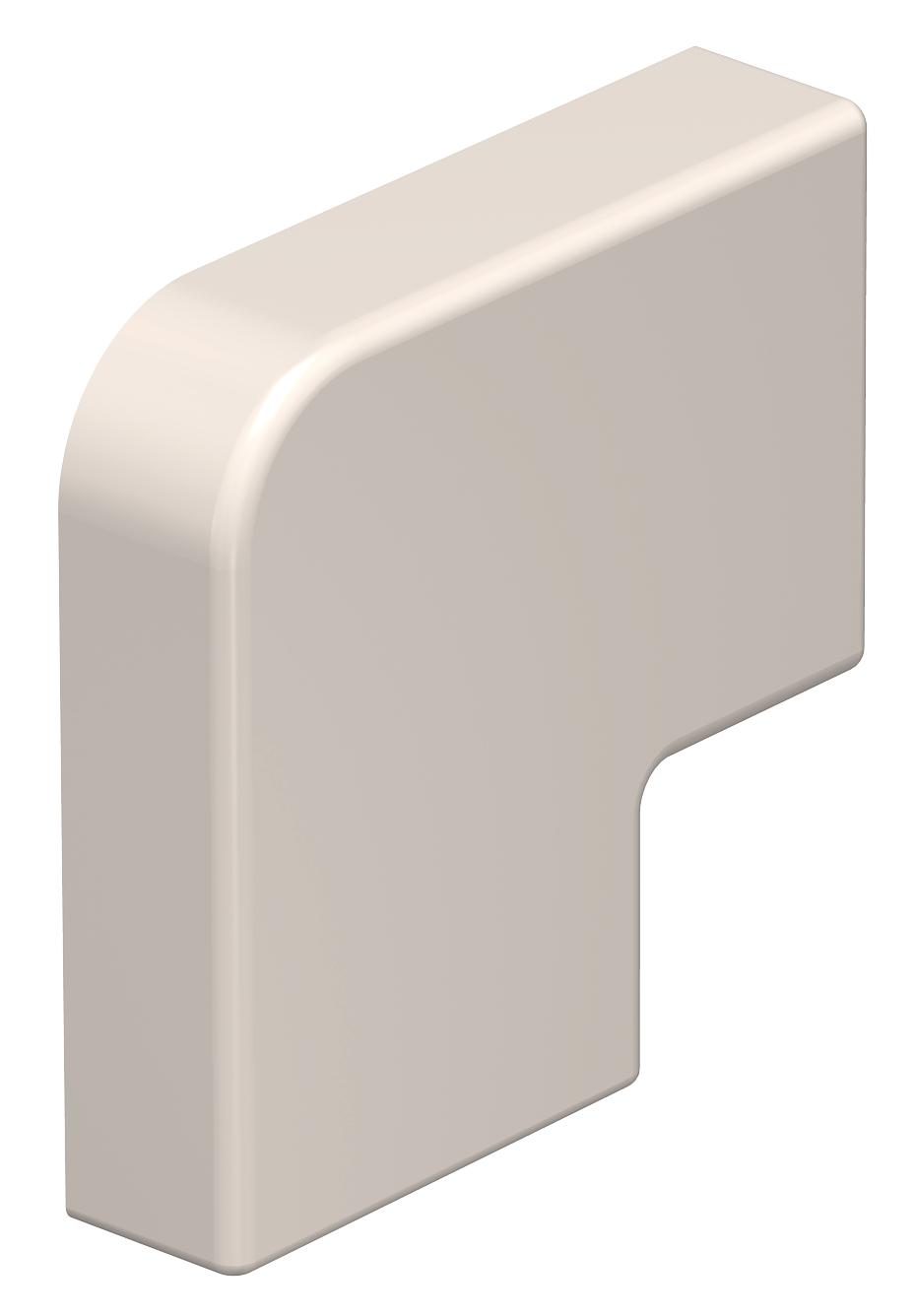

Flat angle cover, trunking type WDK 10030

Item no. 6152619 | EAN 4012196099191

30 mm
Product description

Product description

Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 10x30mm

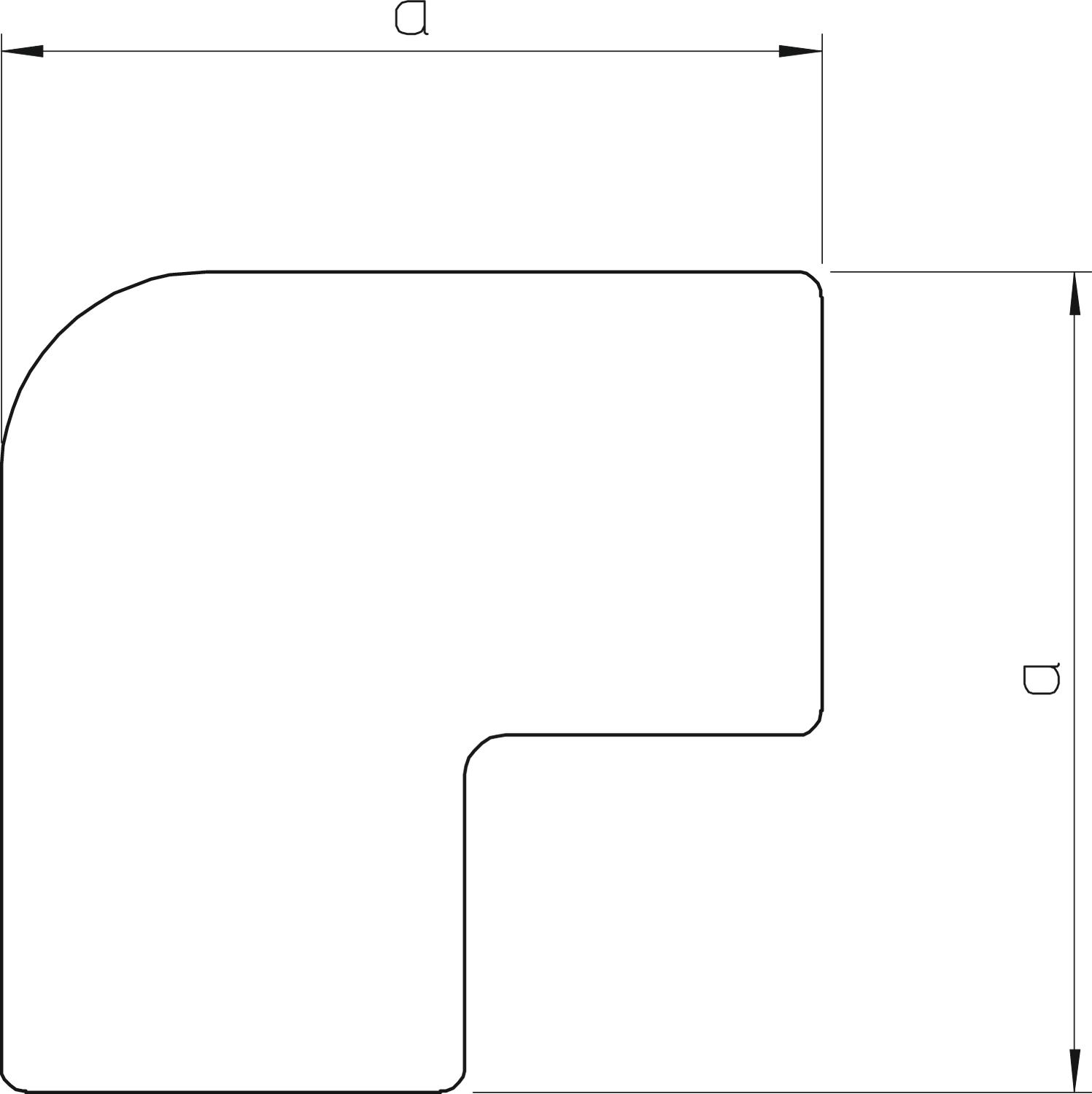

Dimension a 50 mm
Dimension H 30 mm
Fastening type Lockable
for duct dimension 10 x 30
Halogen-free no
Height 10 mm
Length 50 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 10 mm
Version for Hood fitting
Width 30 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF10030CW 30 mm Cream; RAL 9001 6152619
4 piece
WDK HF10030RW 30 mm Pure white; RAL 9010 6154220
4 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HF10030CW / 6152619 , 0.14MB , pdf
