Flat angle cover, trunking type WDK 15030
Item no. 6192750 | EAN 4012196796694
- Product description
-

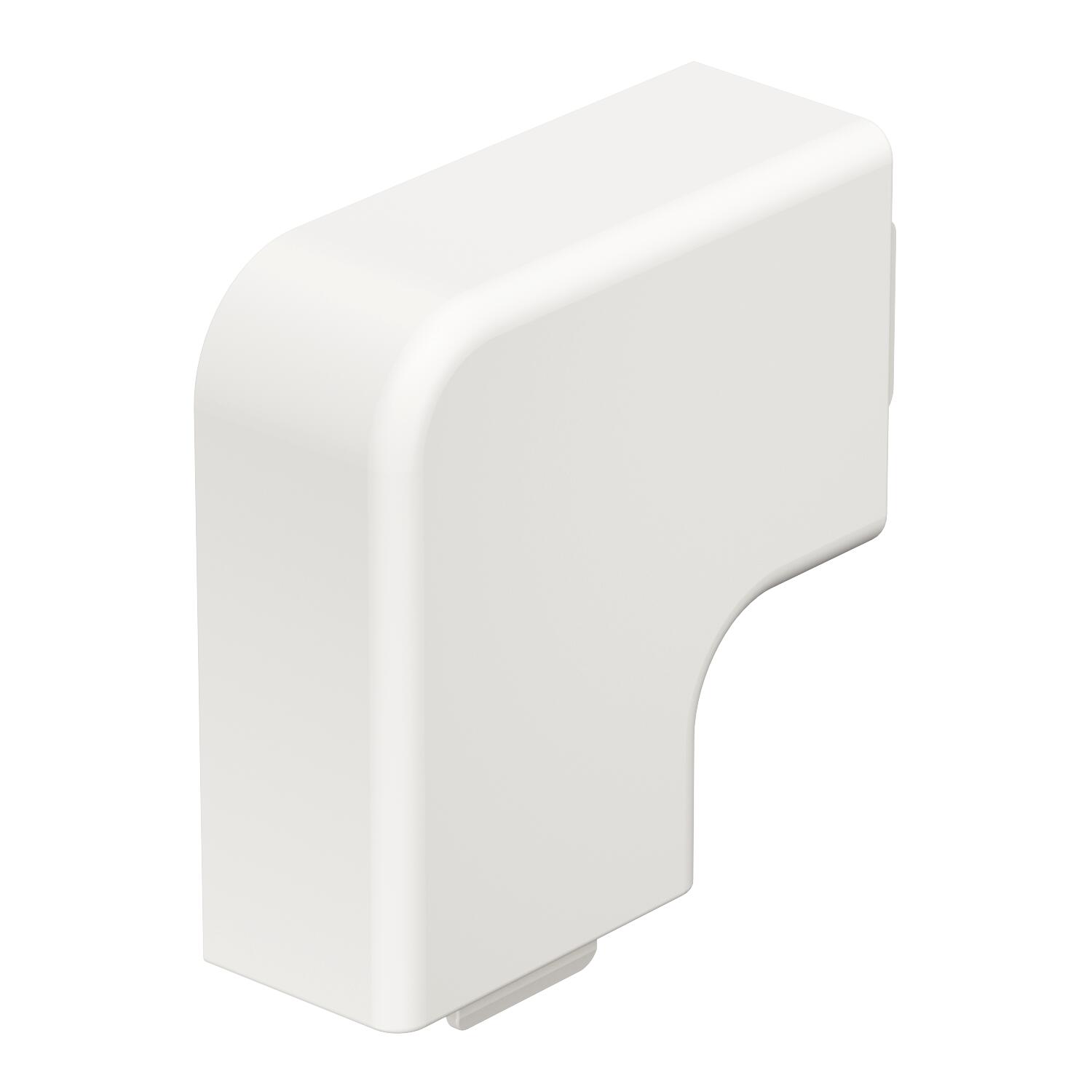

Product descriptionFlat angle hood for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data

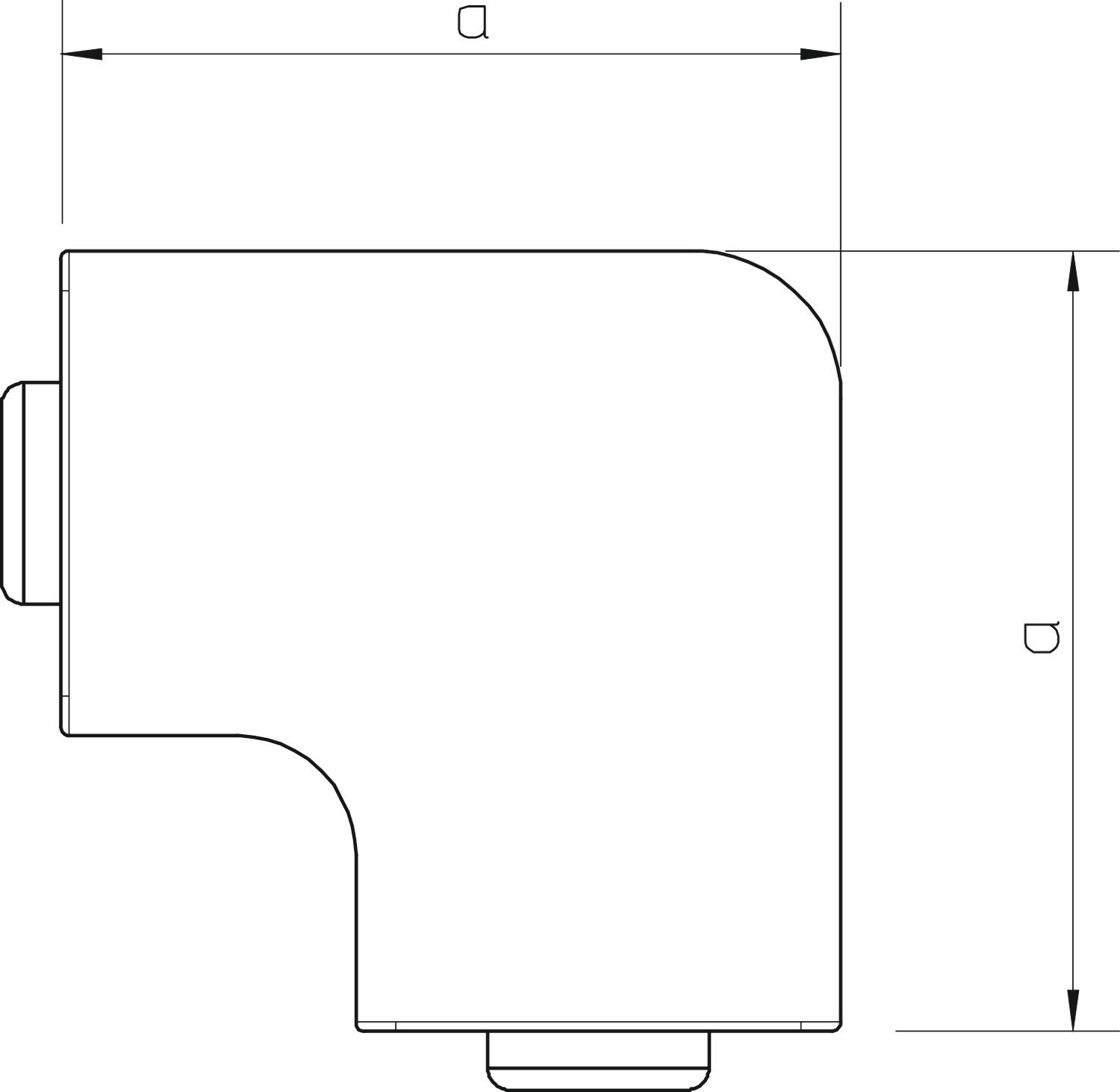

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 15x30mm Dimension a 53 mm Dimension H 30 mm Fastening type Lockable for duct dimension 15 x 30 Halogen-free no Height 17,5 mm Length 53 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 15 mm Version for Hood fitting Width 30 mm - All types
- Downloads
-
Data sheet WDK HF15030RW / 6192750 , 0.20MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF15030RW / 6192750 , 0.13MB , pdfUK Declaration of Conformity WDK HF15030RW / 6192750 , 0.14MB , pdfREACH Declaration of conformity WDK HF15030RW / 6192750 , 0.12MB , pdfRoHS Declaration of conformity WDK HF15030RW / 6192750 , 0.28MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
