Flat angle cover, trunking type WDK 20020 | 20 | Stone grey; RAL 7030
morepic-1 morepic-2

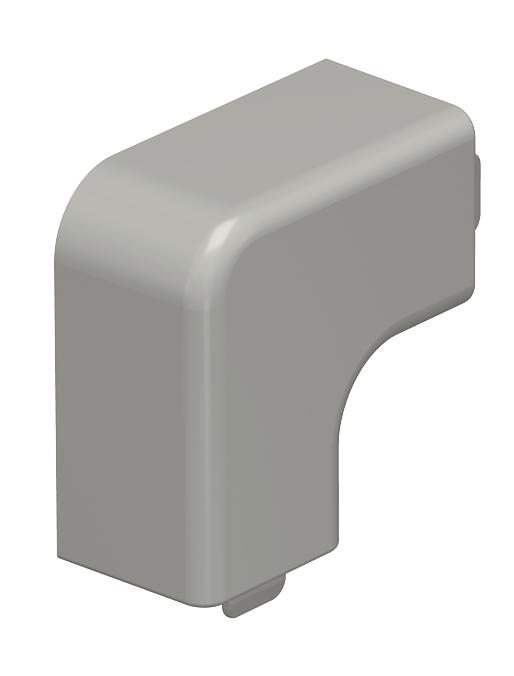

Flat angle cover, trunking type WDK 20020

Item no. 6158587 | EAN 4012196581832

20 mm
Product description
Product description
Flat angle cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 20x20mm

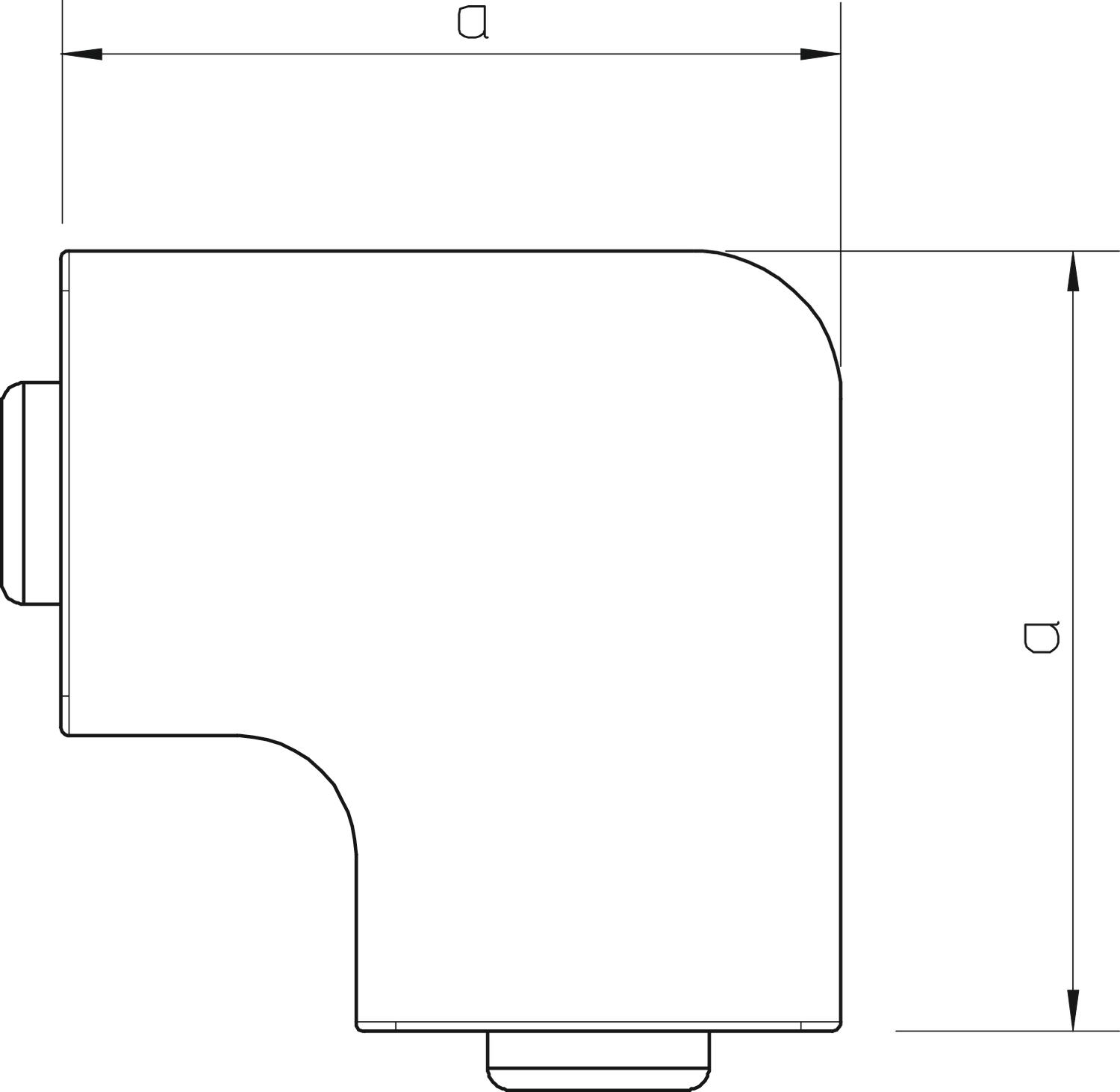

Dimension a 38 mm
Dimension H 20 mm
Fastening type Lockable
for duct dimension 20 x 20
Halogen-free no
Height 17,5 mm
Length 38 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 20 mm
Version for Hood fitting
Width 20 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF20020GR 20 mm Stone grey; RAL 7030 6158587
4 piece
WDK HF20020CW 20 mm Cream; RAL 9001 6161200
4 piece
WDK HF20020LGR 20 mm Light grey; RAL 7035 6183212
4 piece
WDK HF20020RW 20 mm Pure white; RAL 9010 6192777
4 piece
Downloads

Download

Download

EU declaration of conformity WDK HF20020GR / 6158587 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HF20020GR / 6158587 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HF20020GR / 6158587 , 0.13MB , pdf
Download
RoHS Declaration of conformity WDK HF20020GR / 6158587 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
