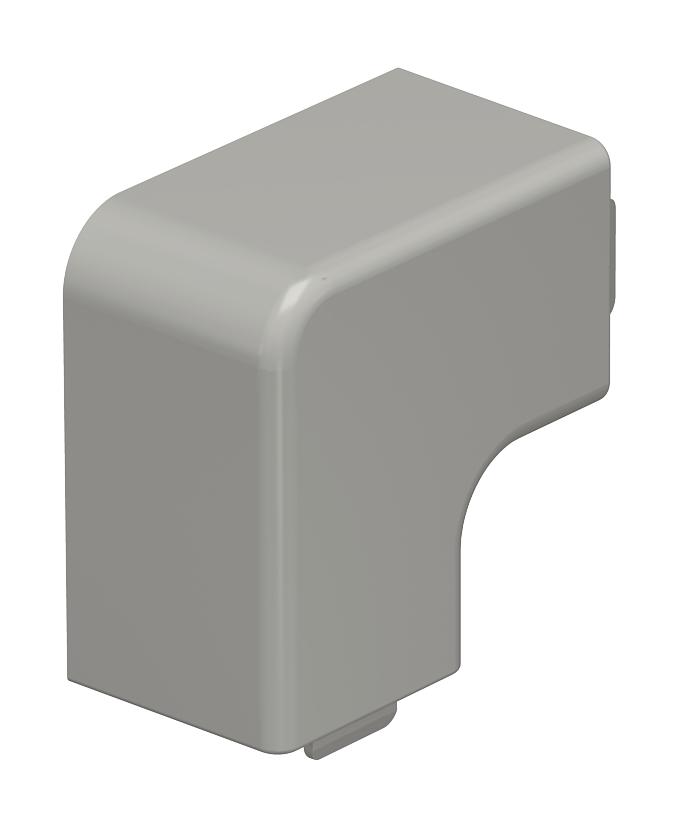

Flat angle cover, trunking type WDK 25025
Item no. 6158617 | EAN 4012196582372
- Product description
-
Product descriptionFlat angle cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Stone grey; RAL 7030 Dimension 25x25mm Dimension a 48 mm Dimension H 25 mm Fastening type Lockable for duct dimension 25 x 25 Halogen-free no Height 25 mm Length 48 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 25 mm Version for Hood fitting Width 25 mm - All types
- Downloads
-
Data sheet WDK HF25025GR / 6158617 , 0.16MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF25025GR / 6158617 , 0.13MB , pdfUK Declaration of Conformity WDK HF25025GR / 6158617 , 0.14MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
