Flat angle cover, trunking type WDK 25040 | 40 | Stone grey; RAL 7030
morepic-1 morepic-2

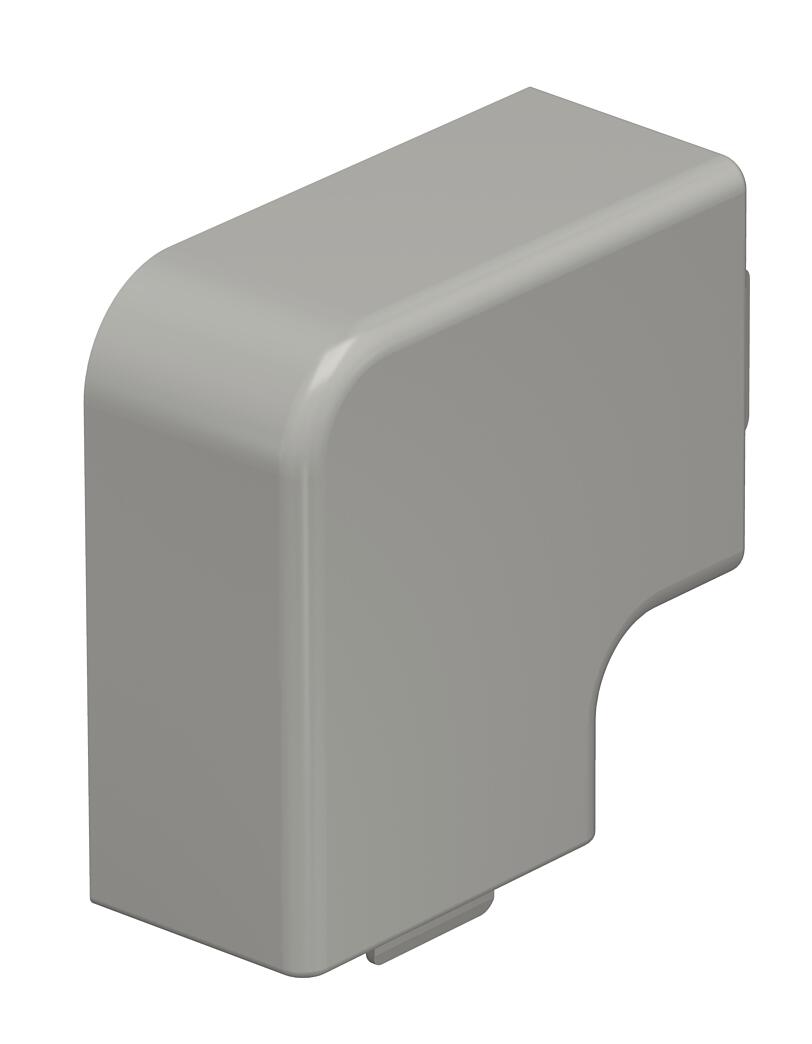

Flat angle cover, trunking type WDK 25040

Item no. 6158625 | EAN 4012196582556

40 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 25x40mm

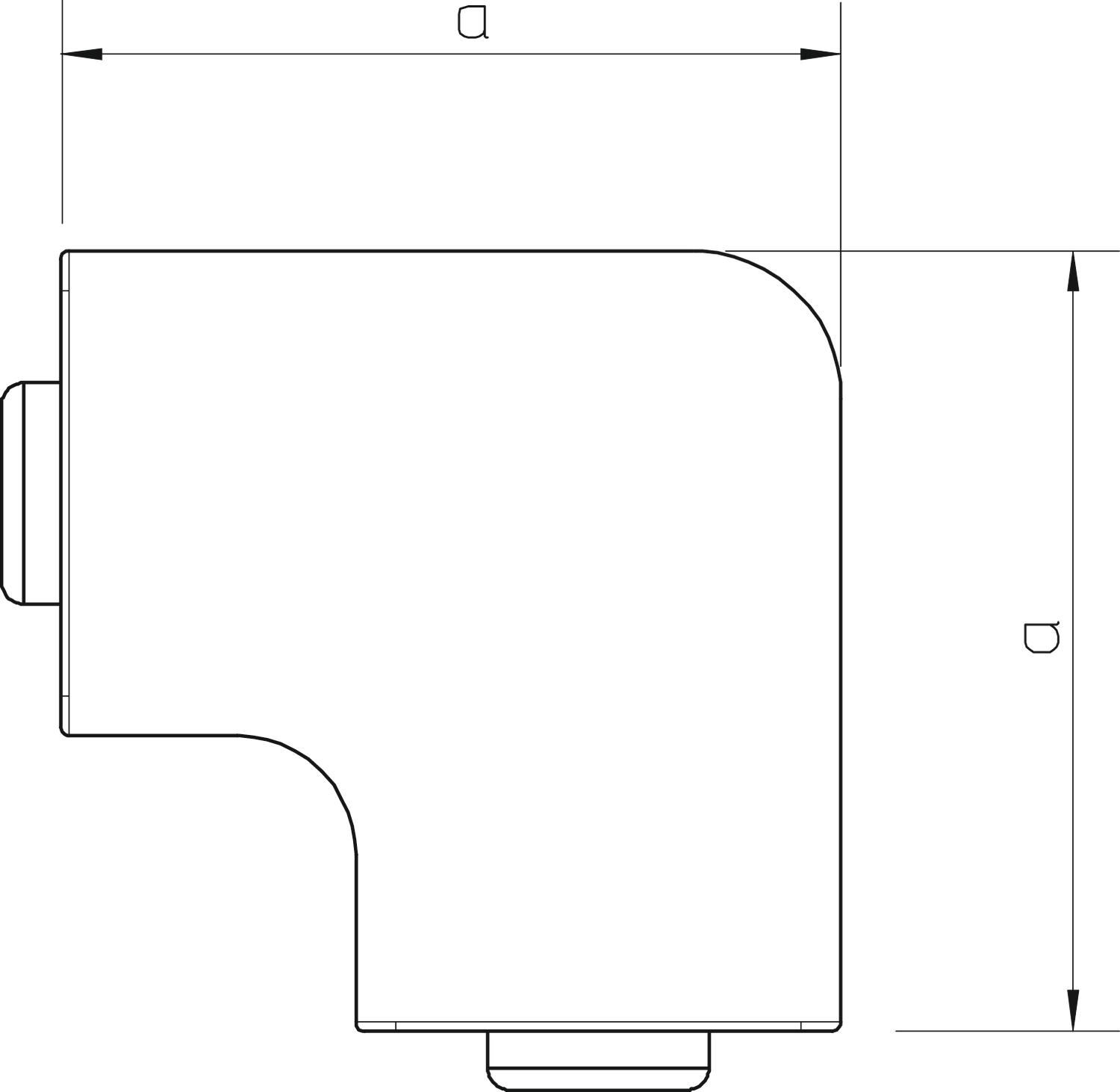

Dimension a 63 mm
Dimension H 40 mm
Fastening type Lockable
for duct dimension 25 x 40
Halogen-free no
Height 25 mm
Length 63 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 25 mm
Version for Hood fitting
Width 40 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF25040GR 40 mm Stone grey; RAL 7030 6158625
4 piece
WDK HF25040CW 40 mm Cream; RAL 9001 6161243
4 piece
WDK HF25040RW 40 mm Pure white; RAL 9010 6192793
4 piece
Downloads

Download

Download

EU declaration of conformity WDK HF25040GR / 6158625 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HF25040GR / 6158625 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
