Flat angle cover, trunking type WDK 40040 | 40 | Stone grey; RAL 7030
morepic-1 morepic-2

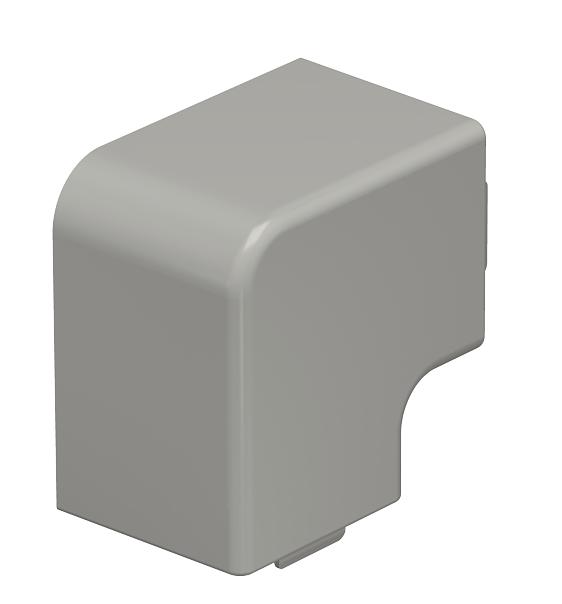

Flat angle cover, trunking type WDK 40040

Item no. 6158668 | EAN 4012196583096

40 mm
Product description

Product description

Flat angle cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 40x40mm
Dimension a 63 mm
Dimension H 40 mm
Fastening type Lockable
for duct dimension 40 x 40
Halogen-free no
Height 40 mm
Length 63 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 40 mm
Version for Hood fitting
Width 40 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF40040GR 40 mm Stone grey; RAL 7030 6158668
4 piece
WDK HF40040CW 40 mm Cream; RAL 9001 6161294
4 piece
WDK HF40040LGR 40 mm Light grey; RAL 7035 6183336
4 piece
WDK HF40040RW 40 mm Pure white; RAL 9010 6192831
4 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HF40040GR / 6158668 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HF40040GR / 6158668 , 0.13MB , pdf
Download
RoHS Declaration of conformity WDK HF40040GR / 6158668 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
