Flat angle cover, trunking type WDK 40090 | 90 | Stone grey; RAL 7030
morepic-1 morepic-2

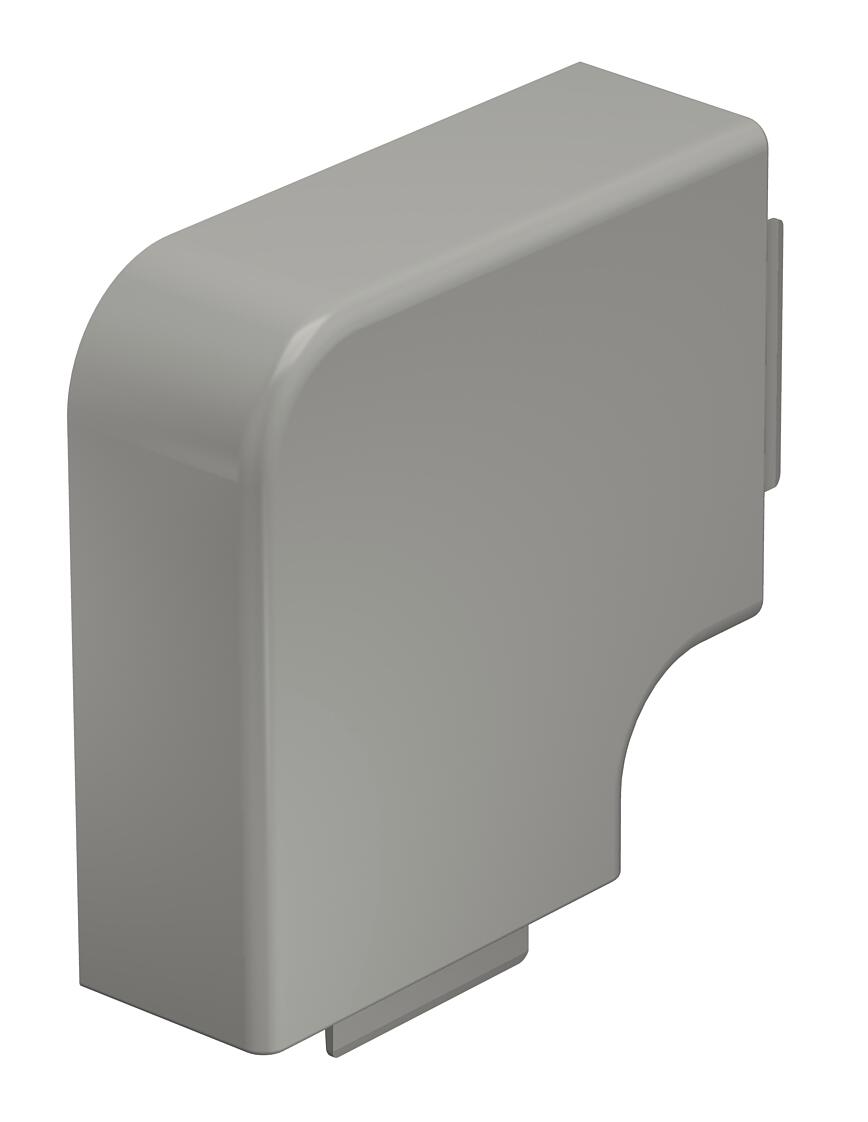

Flat angle cover, trunking type WDK 40090

Item no. 6021336 | EAN 4012196018253

90 mm
Product description
Product description
Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 40x90mm
Dimension a 129 mm
Dimension H 90 mm
Fastening type Lockable
for duct dimension 40 x 90
Halogen-free no
Height 40 mm
Length 129 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 40 mm
Version for Hood fitting
Width 90 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF40090GR 90 mm Stone grey; RAL 7030 6021336
2 piece
WDK HF40090CW 90 mm Cream; RAL 9001 6161316
2 piece
WDK HF40090LGR 90 mm Light grey; RAL 7035 6183352
2 piece
WDK HF40090RW 90 mm Pure white; RAL 9010 6192866
2 piece
Downloads

Download

Download

EU declaration of conformity WDK HF40090GR / 6021336 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HF40090GR / 6021336 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HF40090GR / 6021336 , 0.13MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
