- Product description
-

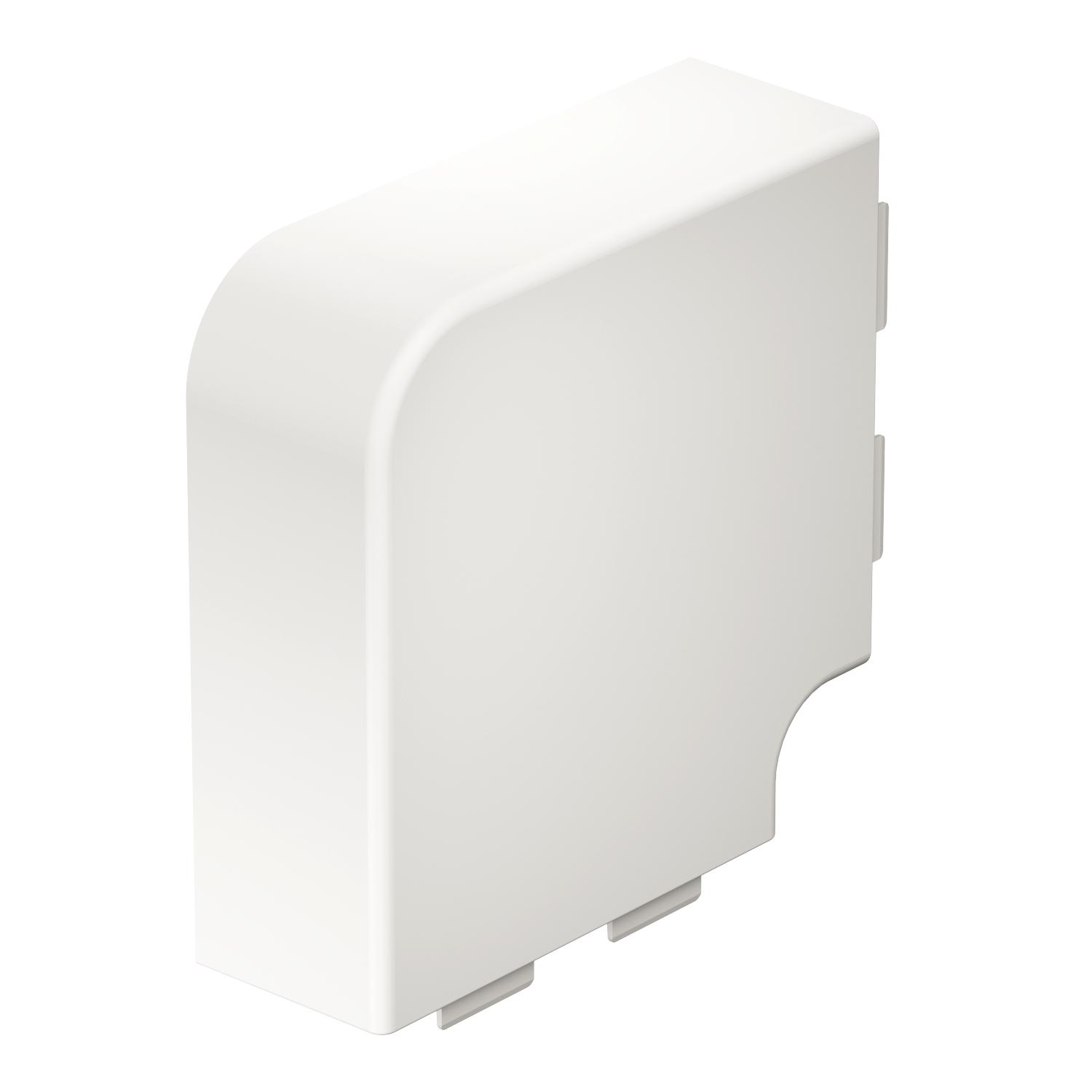

Product descriptionFlat angle hood for changing the direction of the WDK trunking.
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 60x150mm Dimension a 190 mm Dimension H 150 mm Fastening type Lockable for duct dimension 60 x 150 Halogen-free no Height 60 mm Length 190 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 60 mm Version for Hood fitting Width 155 mm - All types
- Downloads
-
Data sheet WDK HF60150RW / 6192955 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF60150RW / 6192955 , 0.13MB , pdfUK Declaration of Conformity WDK HF60150RW / 6192955 , 0.14MB , pdfREACH Declaration of conformity WDK HF60150RW / 6192955 , 0.12MB , pdfRoHS Declaration of conformity WDK HF60150RW / 6192955 , 0.12MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdf
