Flat angle cover, trunking type WDK 60210 | 210 | Light grey; RAL 7035
morepic-1 morepic-2

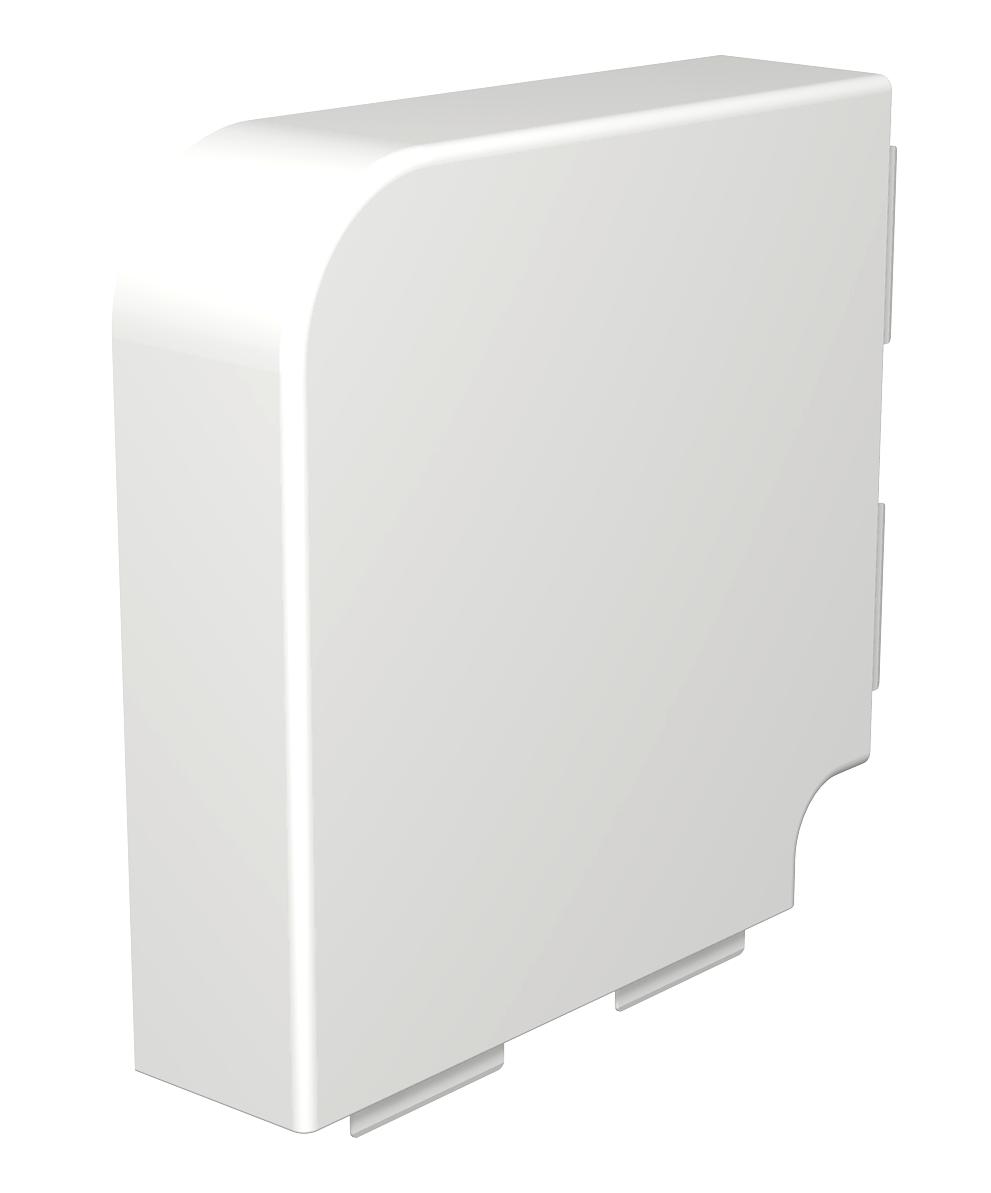

Flat angle cover, trunking type WDK 60210

Item no. 6183476 | EAN 4012196678075

210 mm
Product description

Product description

Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 60x210mm
Dimension a 250 mm
Dimension H 210 mm
Fastening type Lockable
for duct dimension 60 x 210
Halogen-free no
Height 60 mm
Length 250 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 60 mm
Version for Hood fitting
Width 210 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF60210GR 210 mm Stone grey; RAL 7030 6022391
2 piece
WDK HF60210CW 210 mm Cream; RAL 9001 6161553
2 piece
WDK HF60210LGR 210 mm Light grey; RAL 7035 6183476
2 piece
WDK HF60210RW 210 mm Pure white; RAL 9010 6192971
2 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HF60210LGR / 6183476 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HF60210LGR / 6183476 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HF60210LGR / 6183476 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
