- Product description
-

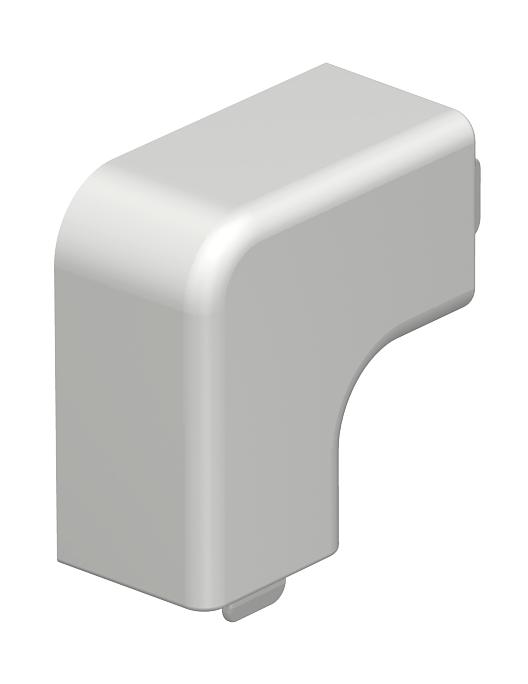

Product descriptionFlat angle hood for changing the direction of the halogen-free WDKH trunking.
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 20x20mm Dimension a 38 mm Fastening type Lockable Halogen-free yes Height 17,5 mm Length 38 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Self-extinguishing yes Trunking depth 20 mm Version for Hood fitting Width 20 mm - All types
- Downloads
-
Data sheet WDKH-F20020LGR / 6176036 , 0.19MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-F20020LGR / 6176036 , 0.13MB , pdfUK Declaration of Conformity WDKH-F20020LGR / 6176036 , 0.14MB , pdf
