Flat angle cover, trunking type WDKH 40060 | 60 | Pure white; RAL 9010
morepic-1 morepic-2

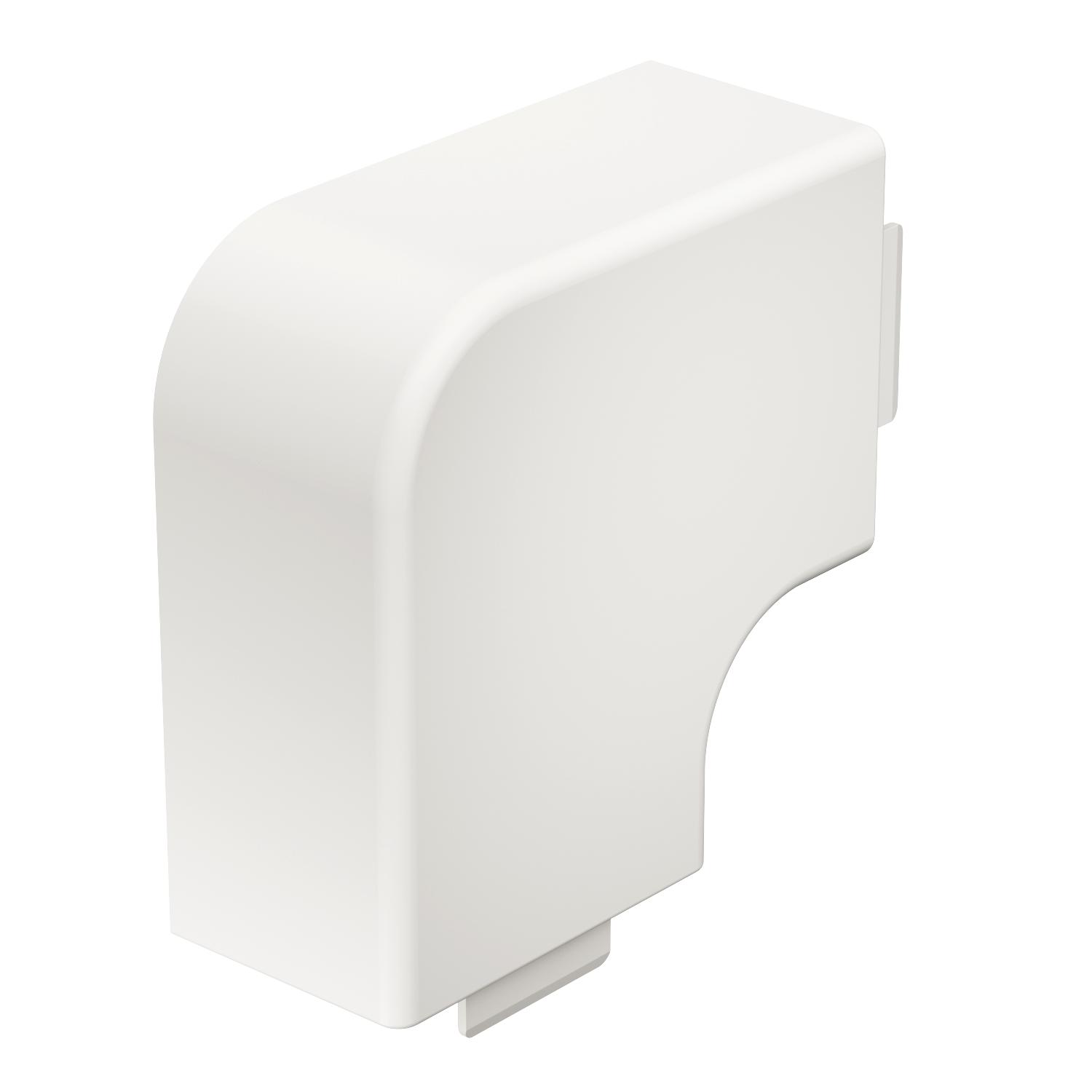

Flat angle cover, trunking type WDKH 40060

Item no. 6175666 | EAN 4012195814122

60 mm
Product description

Product description

Flat angle hood for changing the direction of the halogen-free WDKH trunking.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 40x60mm
Duct height, min. 60 mm
Fastening type Lockable
for duct dimension 40 x 60
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Self-extinguishing yes
Trunking depth 40 mm
Version for Hood fitting

Dimensions

Dimension a 85 mm
Dimension H 60 mm
Height 40 mm
Length 101 mm
Width 65 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDKH-F40060RW 60 mm Pure white; RAL 9010 6175666
2 piece
WDKH-F40060LGR 60 mm Light grey; RAL 7035 6176044
2 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDKH-F40060RW / 6175666 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-F40060RW / 6175666 , 0.27MB , pdf
Download
RoHS Declaration of conformity WDKH-F40060RW / 6175666 , 0.28MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
