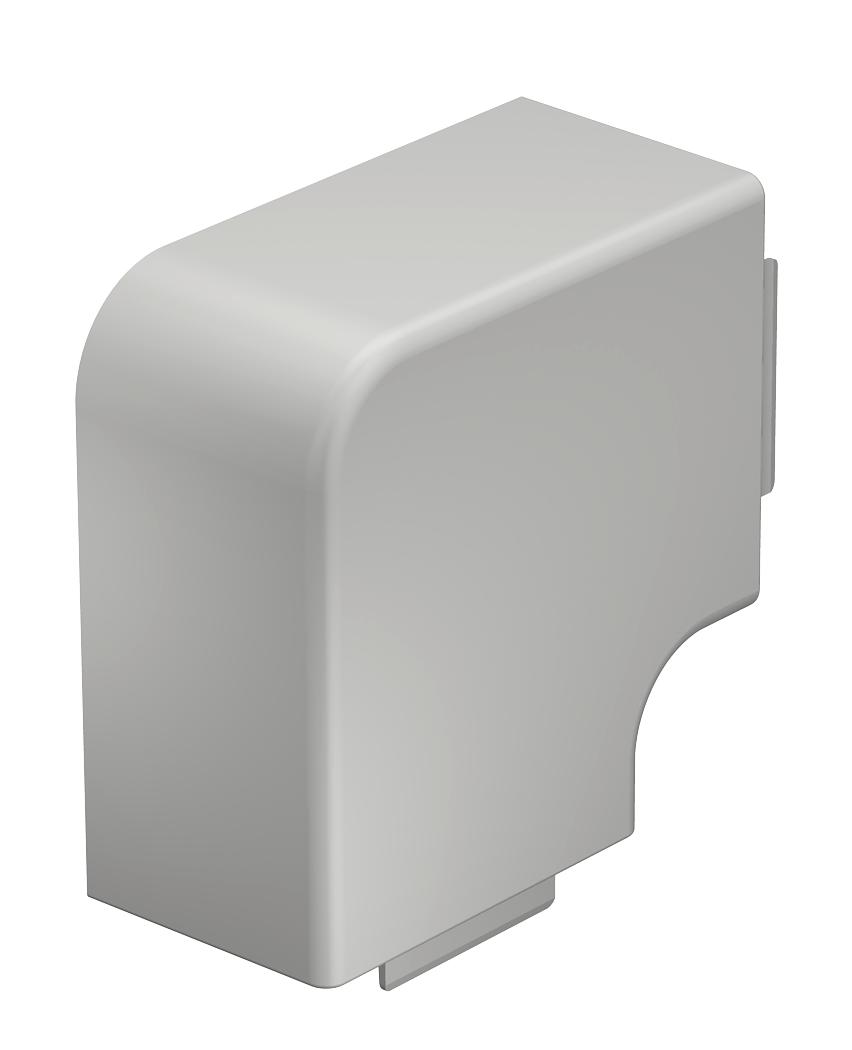

Flat angle cover, trunking type WDKH 60090
Item no. 6176048 | EAN 4012195815075
- Product description
-
Product descriptionFlat angle hood for changing the direction of the halogen-free WDKH trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 60x90mm Dimension a 129 mm Fastening type Lockable Halogen-free yes Height 60 mm Length 129 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Self-extinguishing yes Trunking depth 60 mm Version for Hood fitting Width 94 mm - All types
- Downloads
-
Data sheet WDKH-F60090LGR / 6176048 , 0.19MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-F60090LGR / 6176048 , 0.13MB , pdfUK Declaration of Conformity WDKH-F60090LGR / 6176048 , 0.14MB , pdfREACH Declaration of conformity WDKH-F60090LGR / 6176048 , 0.12MB , pdfRoHS Declaration of conformity WDKH-F60090LGR / 6176048 , 0.12MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
