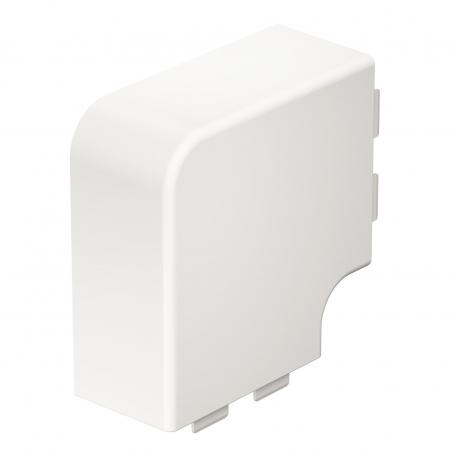

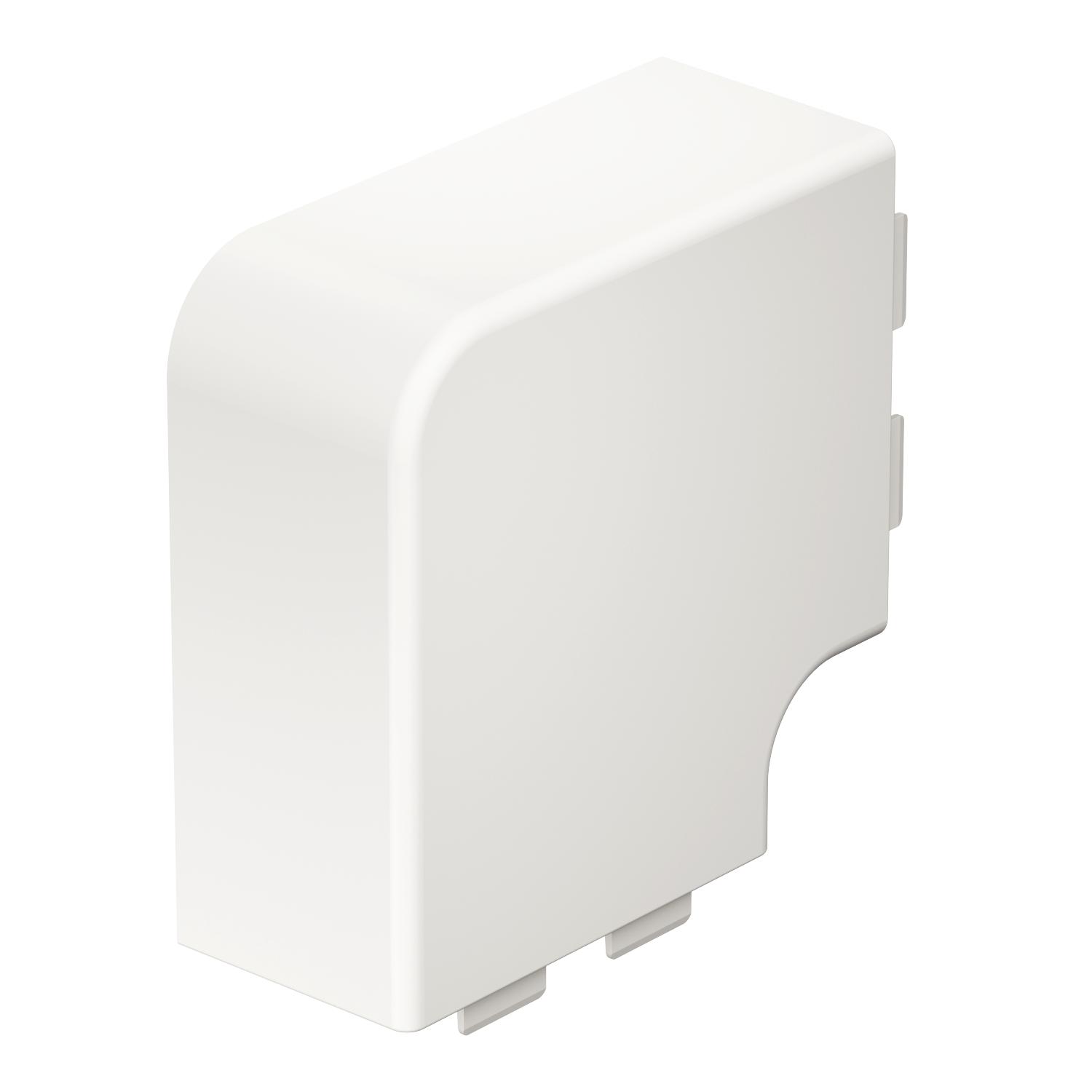

Flat angle cover, trunking type WDKH 60110

Item no. 6175674 | EAN 4012195814146

Product description
Product description
Flat angle hood for changing the direction of the halogen-free WDKH trunking.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 60x110mm

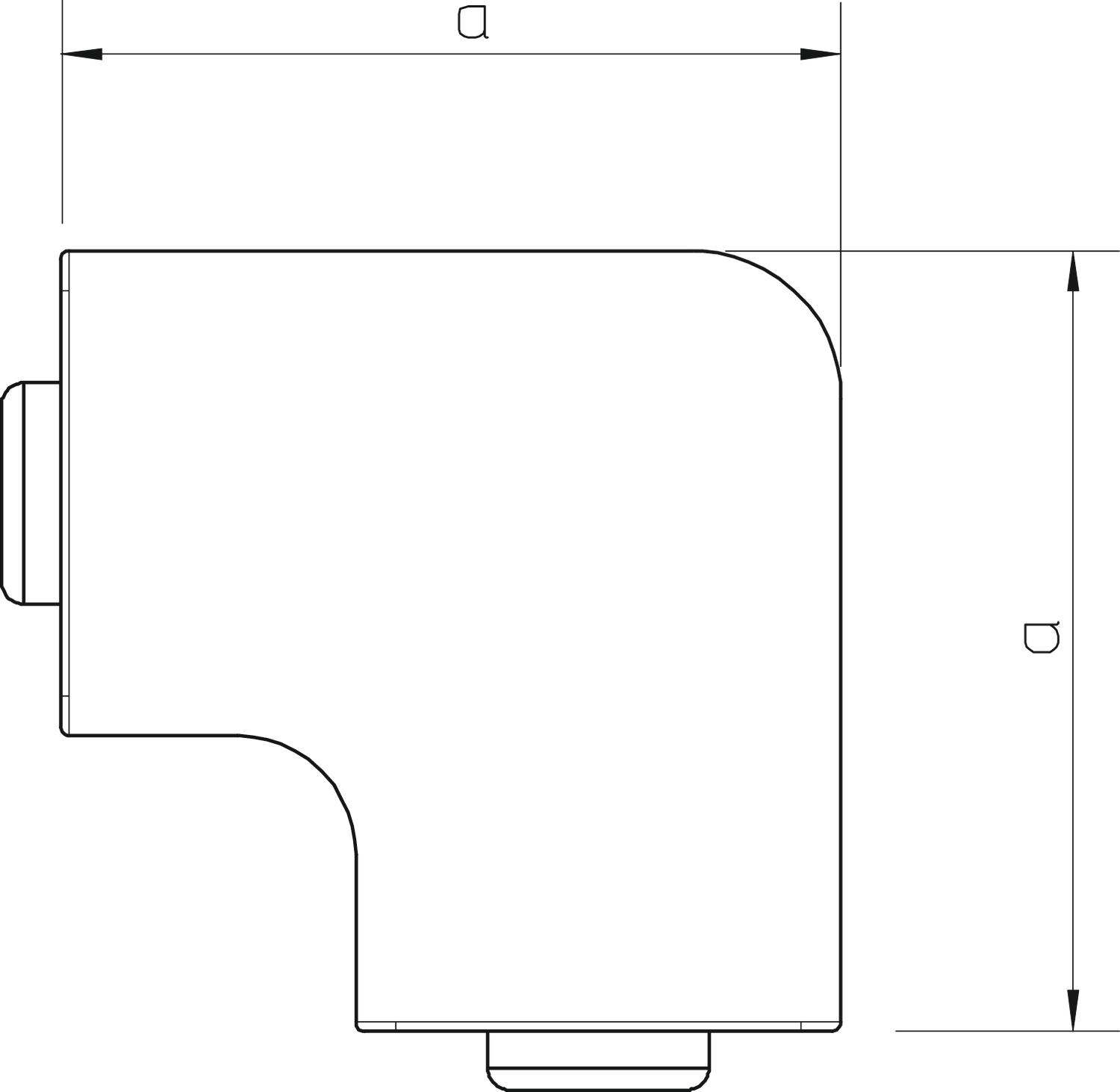

Dimension a 149 mm
Fastening type Lockable
for duct dimension 60 x 110
Halogen-free yes
Height 60 mm
Length 149 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Self-extinguishing yes
Trunking depth 60 mm
Version for Hood fitting
Width 110 mm
All types

All types

Types Colour Item no. Quantity SSU
WDKH-F60110RW Pure white; RAL 9010 6175674
2 piece
WDKH-F60110LGR Light grey; RAL 7035 6176052
2 piece
