Flat angle cover, trunking type WDKH 60150
Item no. 6175678 | EAN 4012195814153
- Product description
-

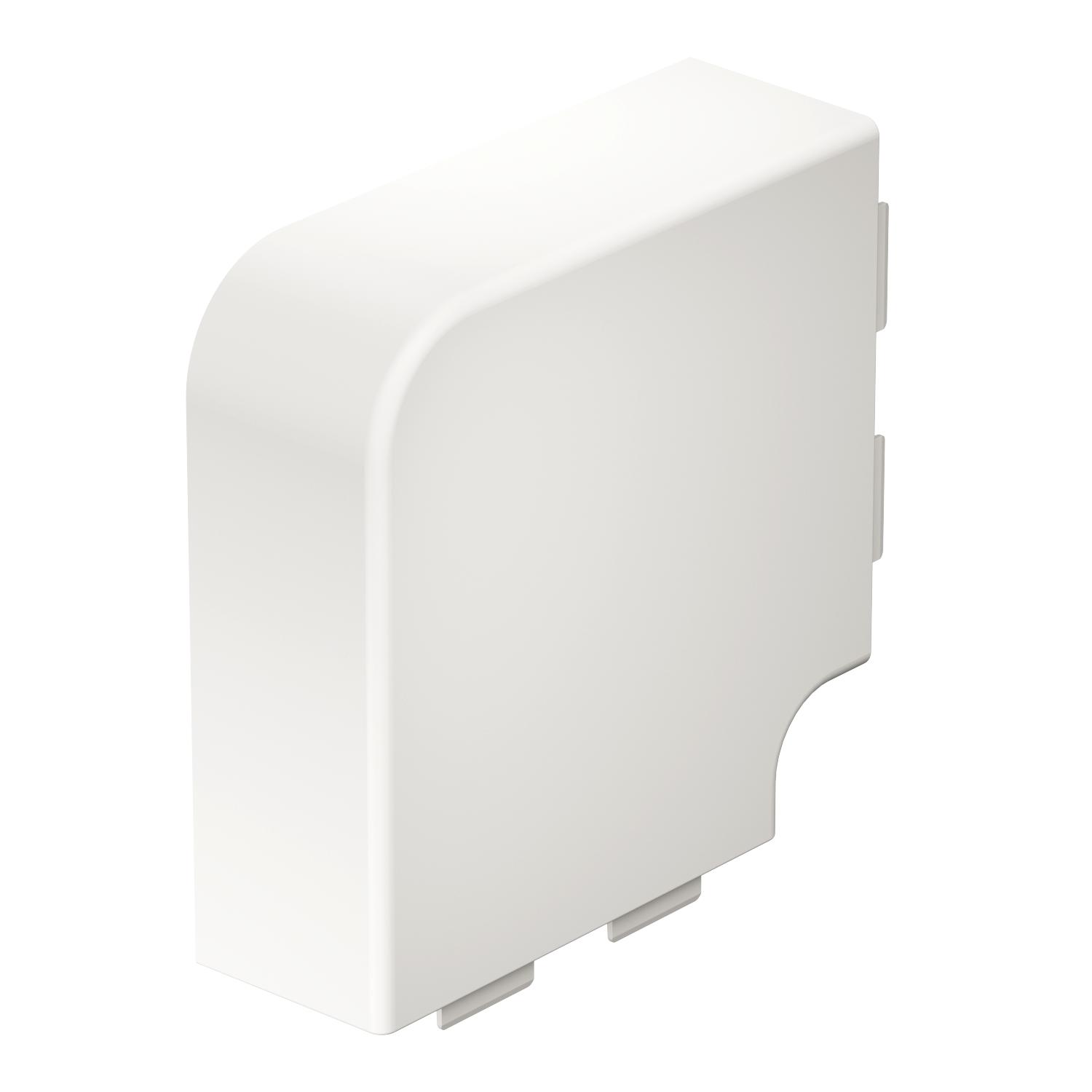

Product descriptionFlat angle hood for changing the direction of the halogen-free WDKH trunking.
-
- Technical data
-
Technical data

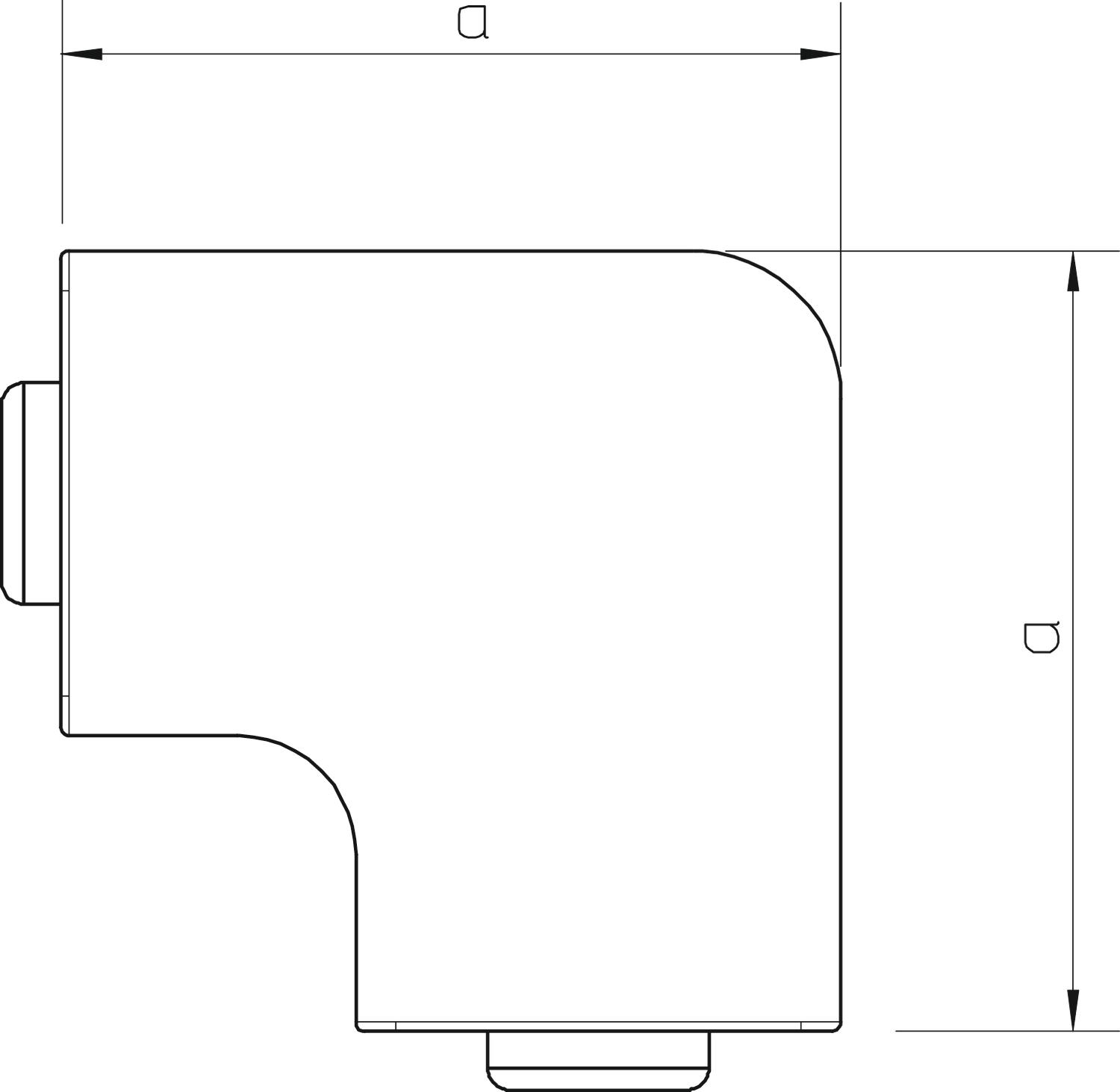

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 60x150mm Dimension a 190 mm Fastening type Lockable for duct dimension 60 x 150 Halogen-free yes Height 60 mm Length 190 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Self-extinguishing yes Trunking depth 60 mm Version for Hood fitting Width 155 mm - All types
- Downloads
-
Data sheet WDKH-F60150RW / 6175678 , 0.19MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-F60150RW / 6175678 , 0.13MB , pdfUK Declaration of Conformity WDKH-F60150RW / 6175678 , 0.14MB , pdfREACH Declaration of conformity WDKH-F60150RW / 6175678 , 0.27MB , pdfRoHS Declaration of conformity WDKH-F60150RW / 6175678 , 0.28MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
