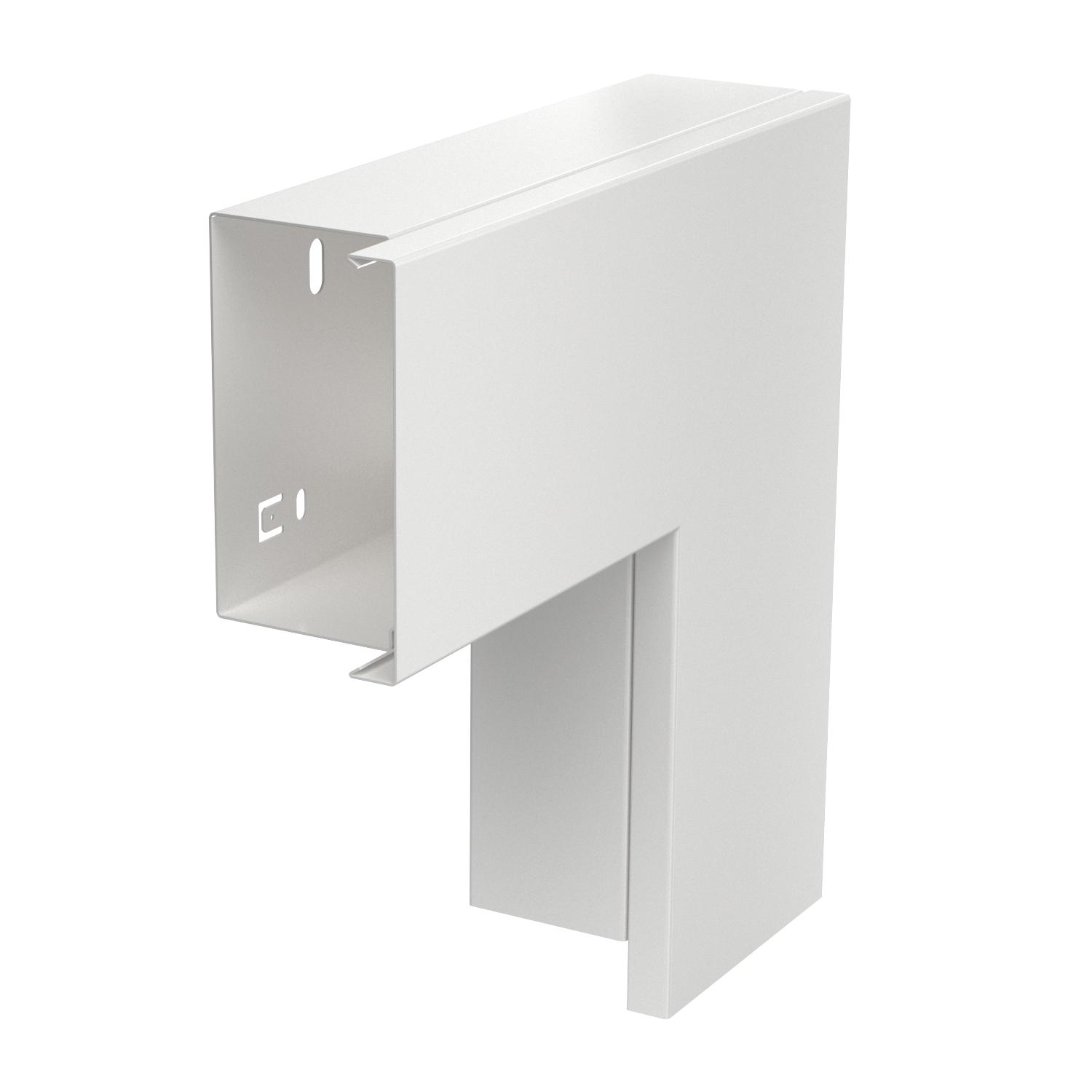

Flat angle, for cable duct type LKM 60100
Item no. 6249507 | EAN 4012196314713
- Product description
-
Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data

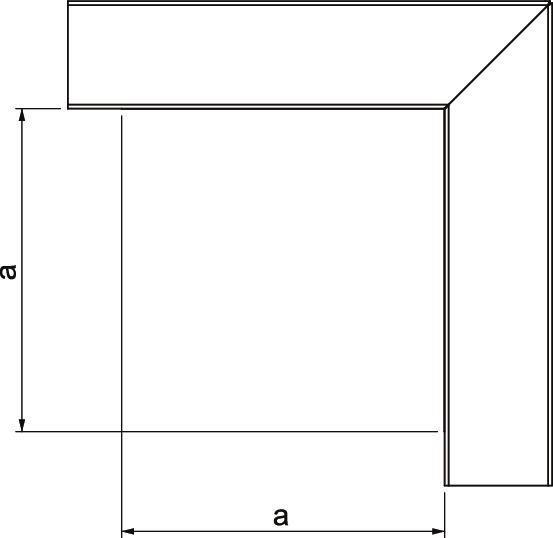

Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 60x100mm Dimension a 140 mm Duct height, min. 64 mm Fastening type Base perforation for duct dimension 60 x 100 Halogen-free yes Height 64 mm Length 140 mm Maintain electrical functions yes Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Trunking depth 64 mm Version for Base and cover Width 100 mm - All types
- Downloads
-
Data sheet LKM F60100RW / 6249507 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM F60100RW / 6249507 , 0.15MB , pdfUK Declaration of Conformity LKM F60100RW / 6249507 , 0.14MB , pdfREACH Declaration of conformity LKM F60100RW / 6249507 , 0.27MB , pdfRoHS Declaration of conformity LKM F60100RW / 6249507 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
