- Product description
-

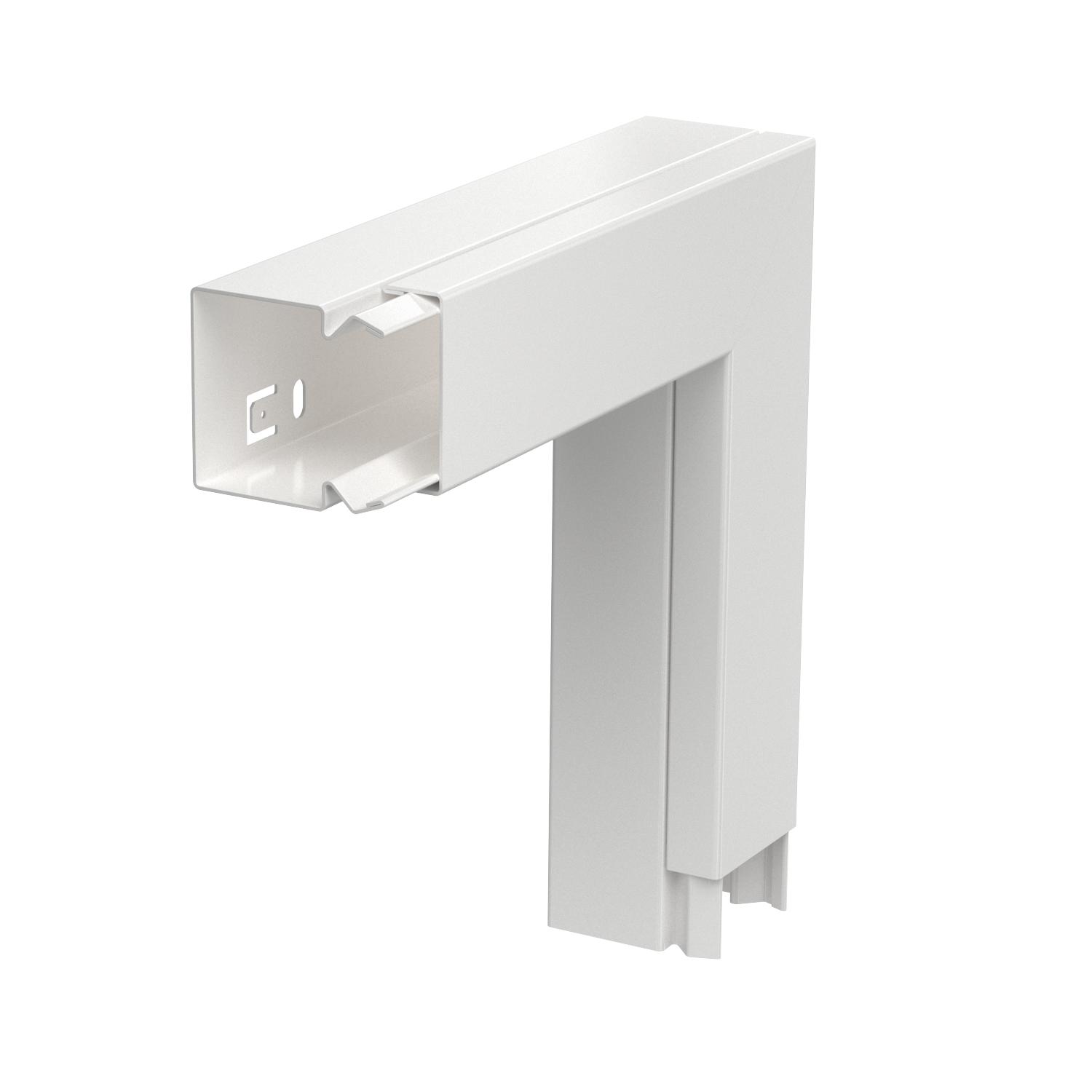

Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
- Technical data
-
Technical data
Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 40x40mm Dimension a 140 mm Duct height, min. 44 mm Fastening type Base perforation for duct dimension 40 x 40 Halogen-free yes Height 44 mm Length 140 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Trunking depth 44 mm Version for Base and cover Width 40 mm - All types
- Downloads
-
Data sheet LKM F40040RW / 6248993 , 0.20MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM F40040RW / 6248993 , 0.13MB , pdfUK Declaration of Conformity LKM F40040RW / 6248993 , 0.14MB , pdfREACH Declaration of conformity LKM F40040RW / 6248993 , 0.27MB , pdfRoHS Declaration of conformity LKM F40040RW / 6248993 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
