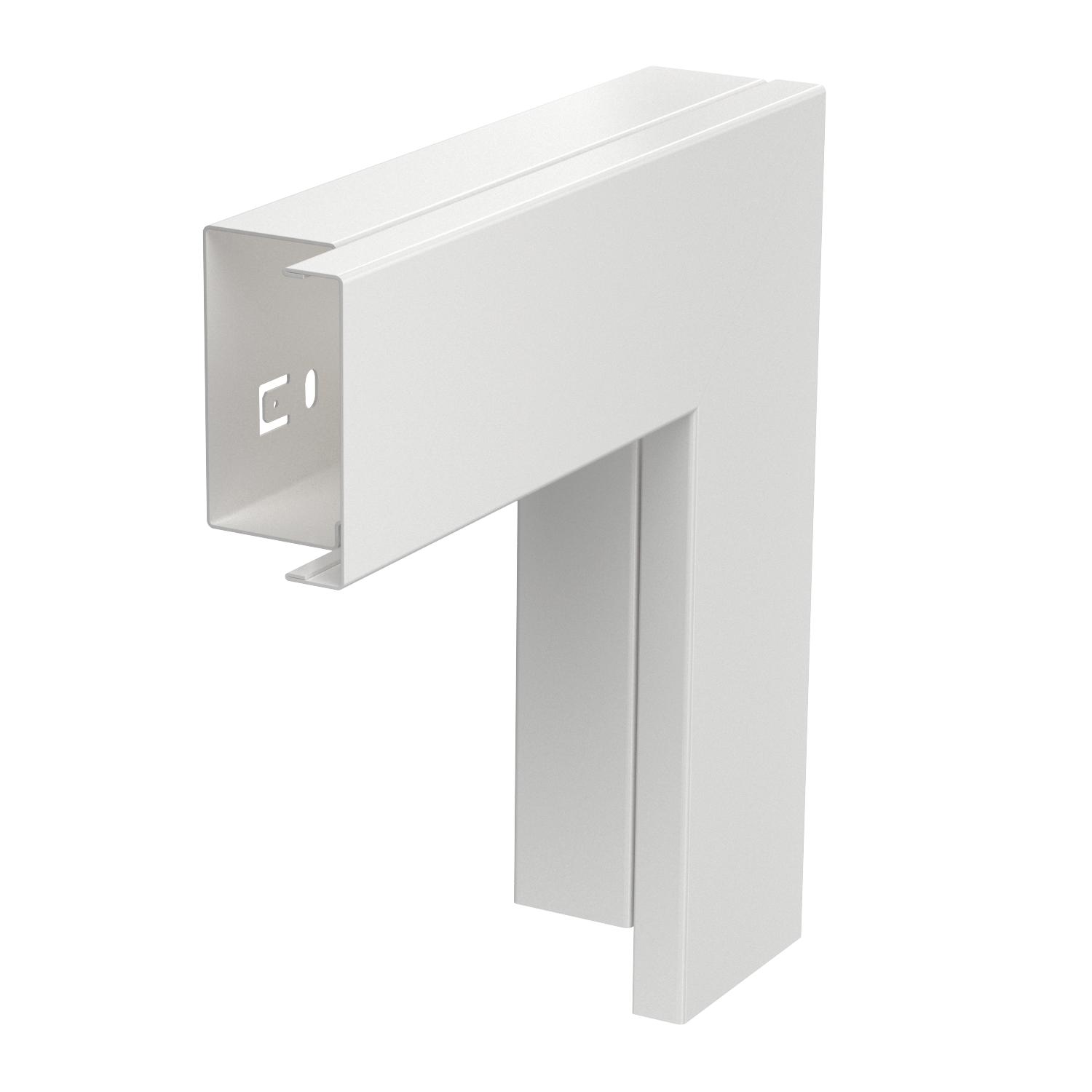

Flat angle, for cable trunking type LKM 40060
Item no. 6249000 | EAN 4012196313990
- Product description
-
Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 40x60mm Dimension a 140 mm Duct height, min. 44 mm Fastening type Base perforation for duct dimension 40 x 60 Halogen-free yes Height 44 mm Length 140 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Trunking depth 44 mm Version for Base and cover Width 60 mm - All types
