Flat angle Signa Base FW 70110 160 | 74 | Pure white; RAL 9010

morepic-1

morepic-2

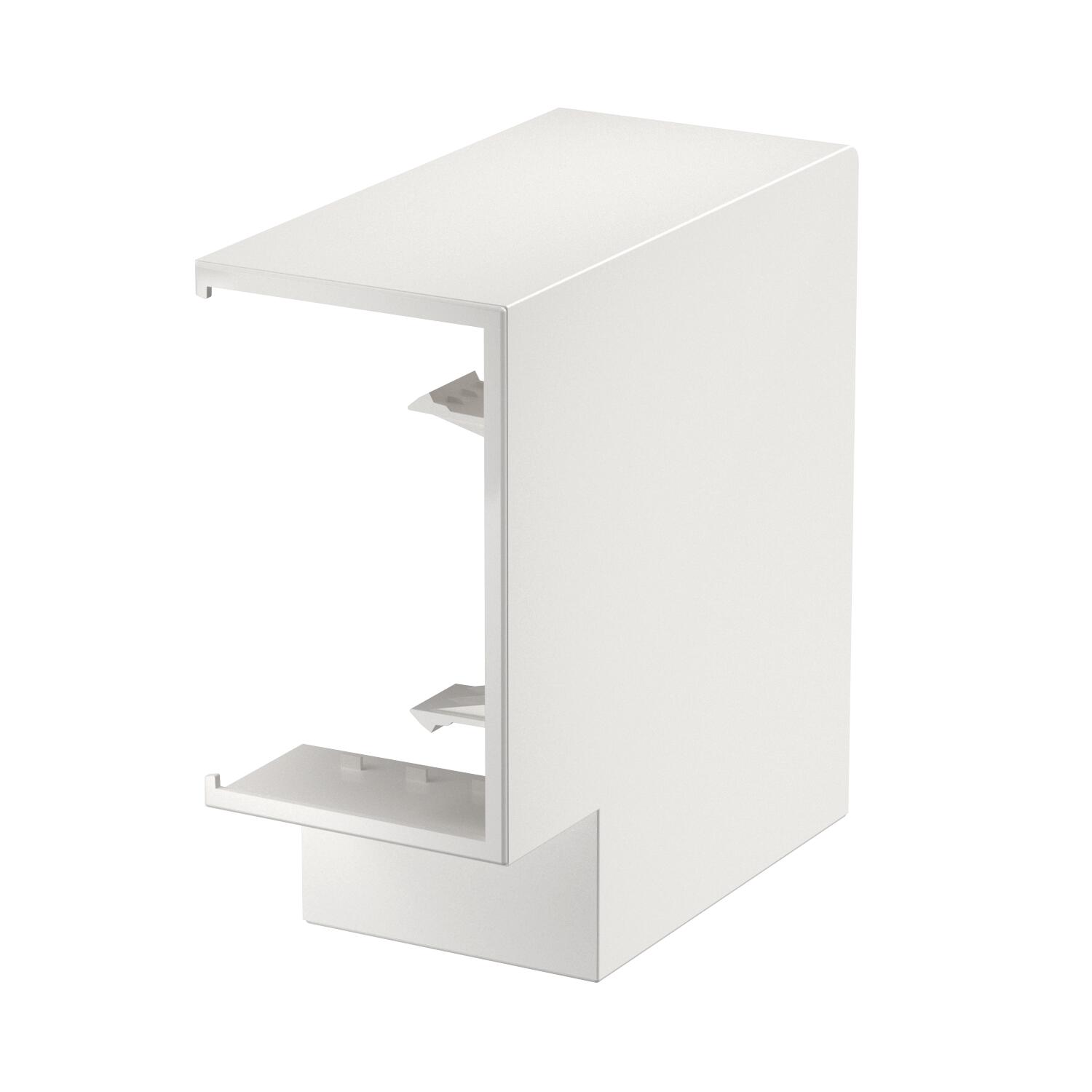

Flat angle Signa Base FW 70110

Item no. 6132763 | EAN 4012196728831

Item no. / Types

Width	160 mm

Height	74 mm

Colour

Product description

Product description

Flat angle as a fitting for changing the direction of the Signa Base device installation trunking.

Technical data

Technical data

Angle range, min.	90 mm
Antibacterial treatment	no
Cable retaining clip	no
Change of direction	Vertical, rising/falling
Colour	Pure white; RAL 9010
Cover mounting type	Cross-over
Dimension	160x160x74
Duct connector	no
for duct width	110 mm
for trunking height	70 mm

Halogen-free	yes
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base	no
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Protective film	no
Symmetrical	yes
Version for	Hood fitting

Dimensions

Height	74 mm
Length	160 mm

Width	160 mm

All types

All types

Types	Width	Height	Colour	Item no.	Quantity	SSU
BRK FW70110 cws	160 mm	74 mm	Cream; RAL 9001	6132762	piece	1 piece
BRK FW70110 rws	160 mm	74 mm	Pure white; RAL 9010	6132763	piece	1 piece

Downloads

Data sheet BRK FW70110 rws / 6132763 , 0.20MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

Declaration of conformity BRK FW70110 rws / 6132763 , 0.17MB , pdf

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdf

Product graphic BRK FW70110 rws / 6132763, 38.32 kB, jpg

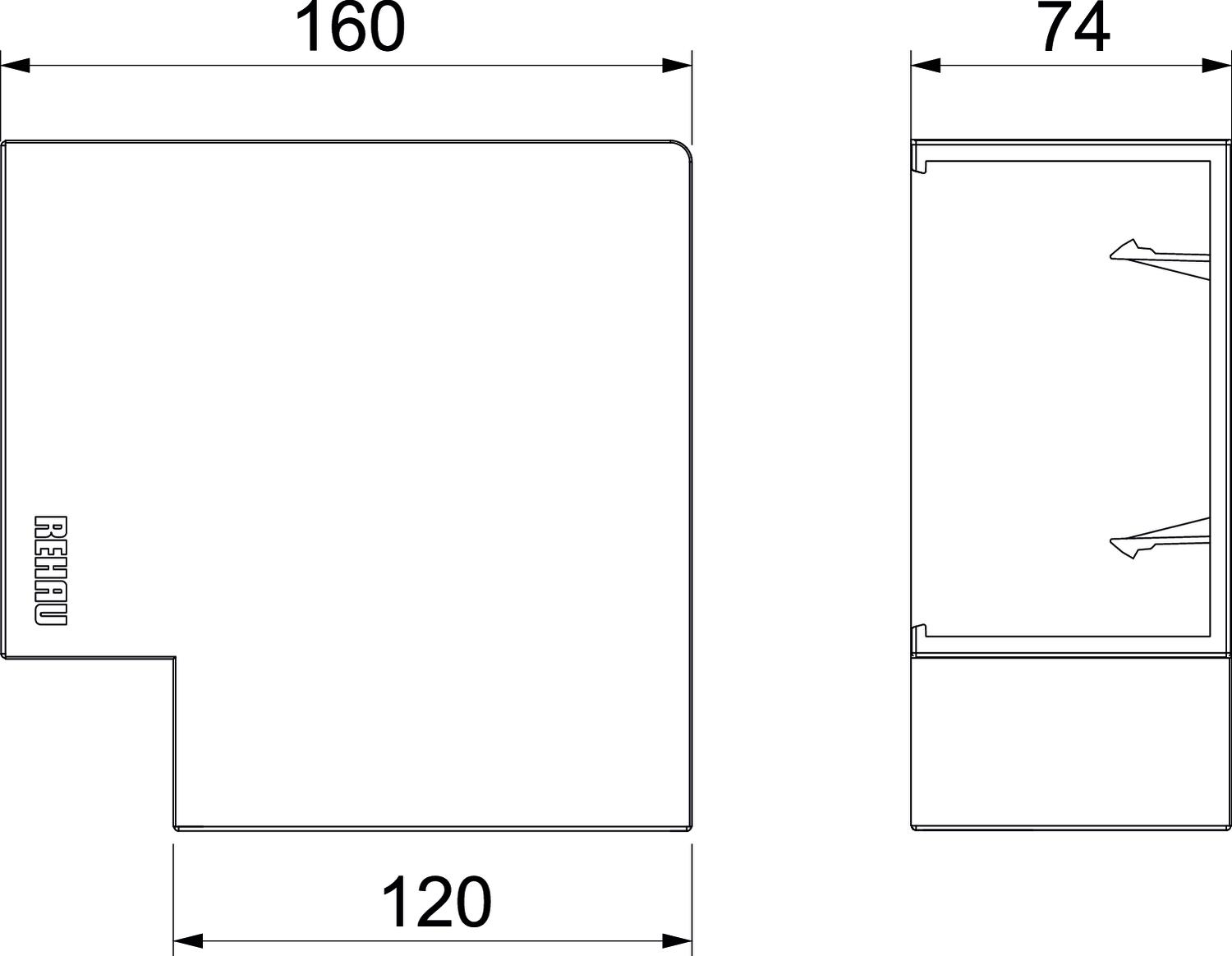

Scale drawing BRK FW70110 rws / 6132763, 47.41 kB, jpg
