Flat angle Signa Base FW 70130
Item no. 6132765 | EAN 4012196728848
- Product description
-

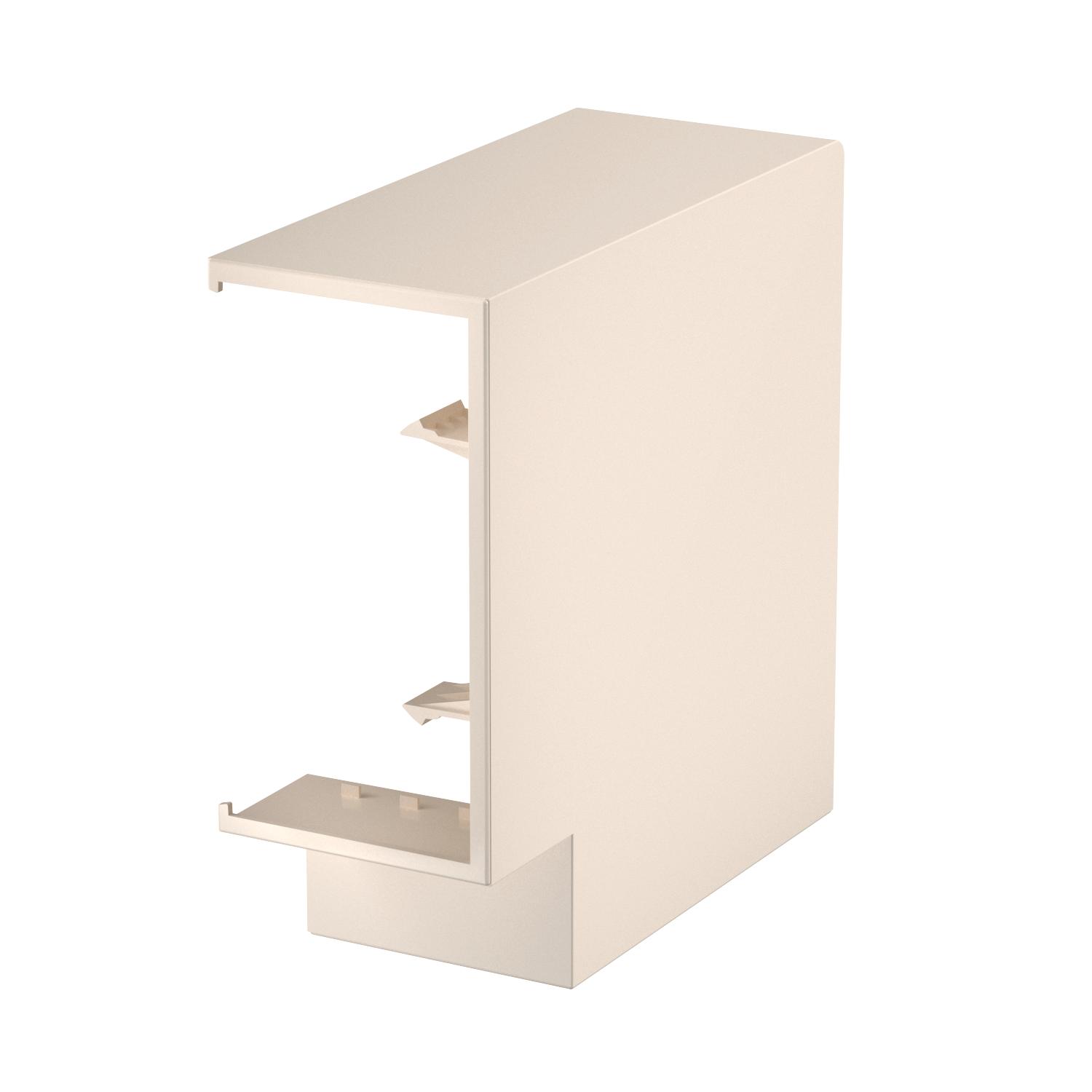

Product descriptionFlat angle as a fitting for changing the direction of the Signa Base device installation trunking.
-
- Technical data
-
Technical data

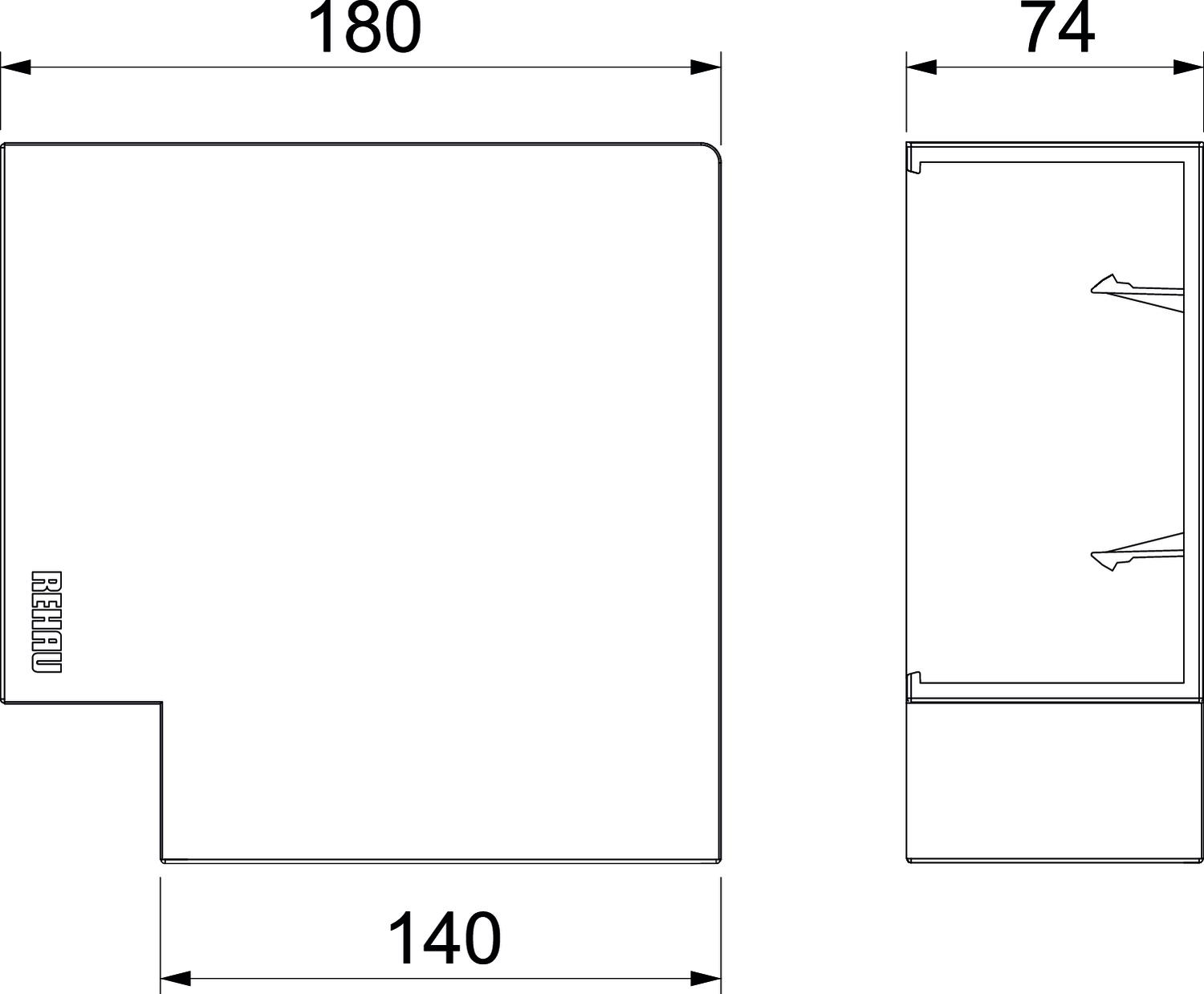

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no Change of direction Vertical, rising/falling Colour Cream; RAL 9001 Cover mounting type Cross-over Duct connector no for duct width 130 mm for trunking height 70 mm Halogen-free yes Height 74 mm Length 180 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK07. Protective film no Symmetrical yes Version for Hood fitting Width 180 mm - All types
- Downloads
-
Data sheet BRK FW70130 cws / 6132765 , 0.21MB , pdfEU declaration of conformity BRK FW70130 cws / 6132765 , 0.10MB , pdfMounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdfNo invitation to tender text is available for this product.
