Flat angle Signa Base FW 70130 180 | 74 | Pure white; RAL 9010
morepic-1 morepic-2

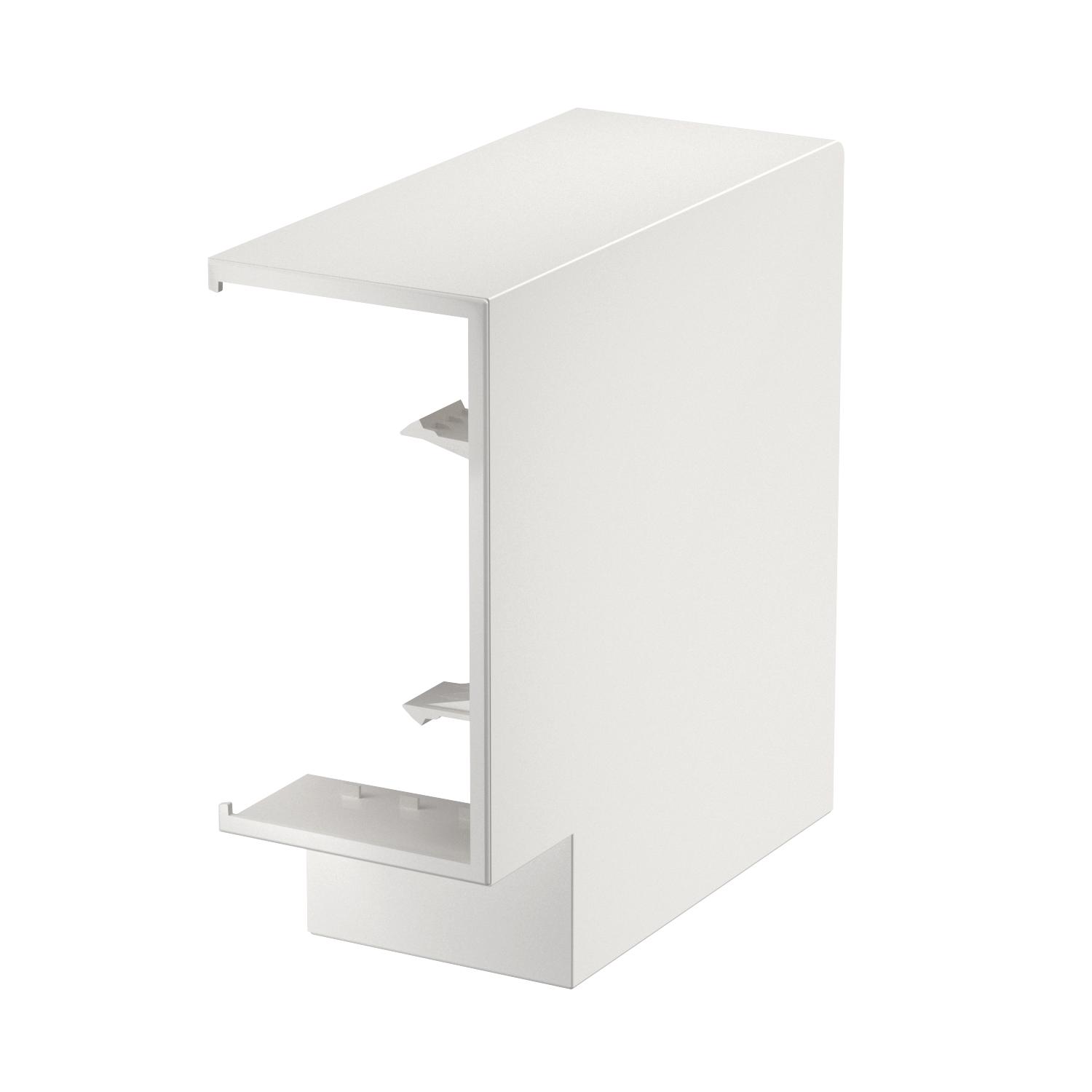

Flat angle Signa Base FW 70130

Item no. 6132766 | EAN 4012196716456

180 mm
74 mm
Product description

Product description

Flat angle as a fitting for changing the direction of the Signa Base device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle range, min. 90 mm
Antibacterial treatment no
Cable retaining clip no
Change of direction Vertical, rising/falling
Colour Pure white; RAL 9010
Cover mounting type Cross-over
Dimension 180x180x74
Duct connector no
for duct width 130 mm
for trunking height 70 mm
Halogen-free yes
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK07.
Protective film no
Symmetrical yes
Version for Hood fitting

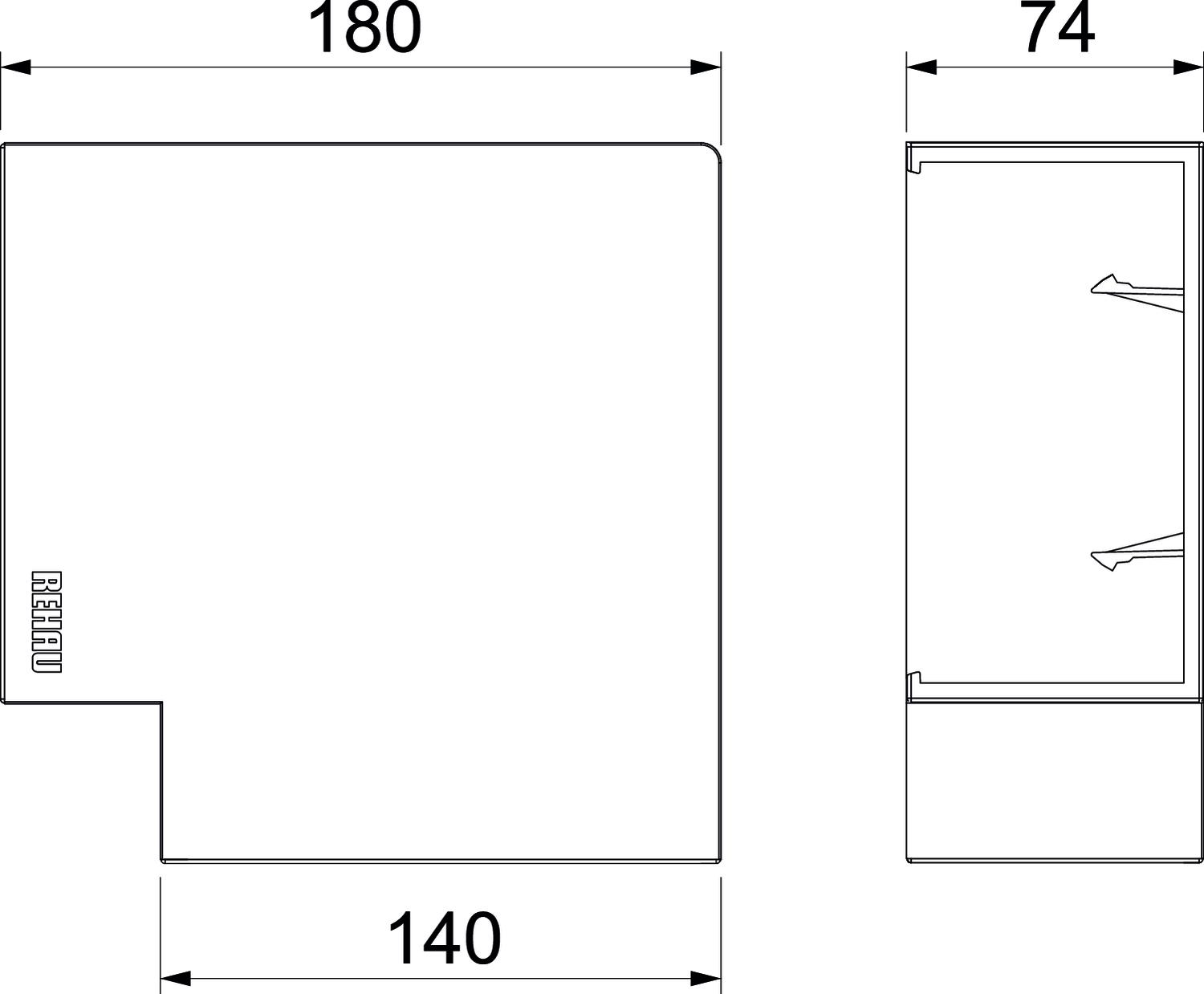

Dimensions

Height 74 mm
Length 180 mm
Width 180 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
BRK FW70130 cws 180 mm 74 mm Cream; RAL 9001 6132765
1 piece
BRK FW70130 rws 180 mm 74 mm Pure white; RAL 9010 6132766
1 piece
BRK FW70130 lgr 180 mm 74 mm Light grey; RAL 7035 6132767
1 piece
