Flat angle Signa Base FW 70170 220 | 74 | Light grey; RAL 7035
morepic-1 morepic-2

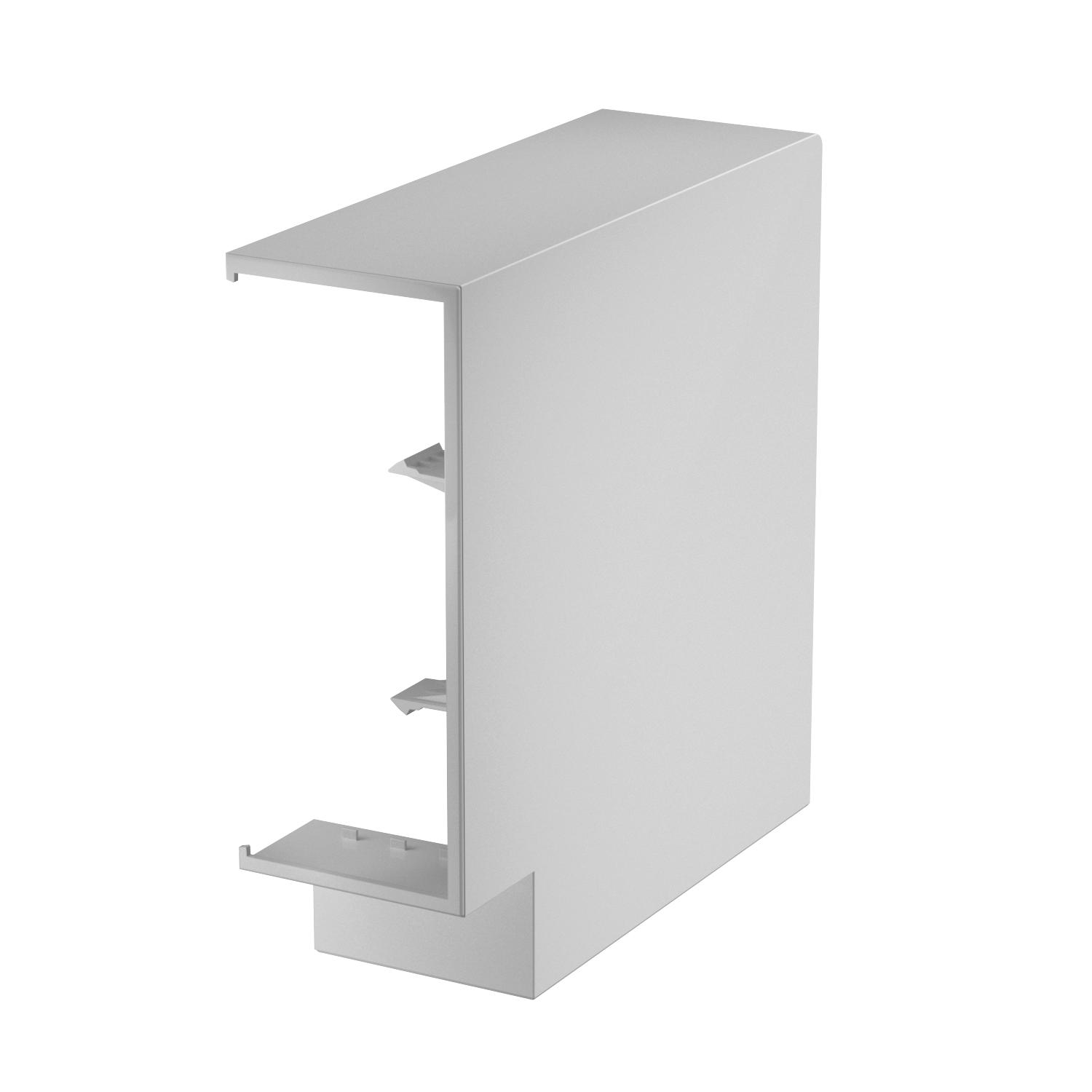

Flat angle Signa Base FW 70170

Item no. 6132771 | EAN 4012196716623

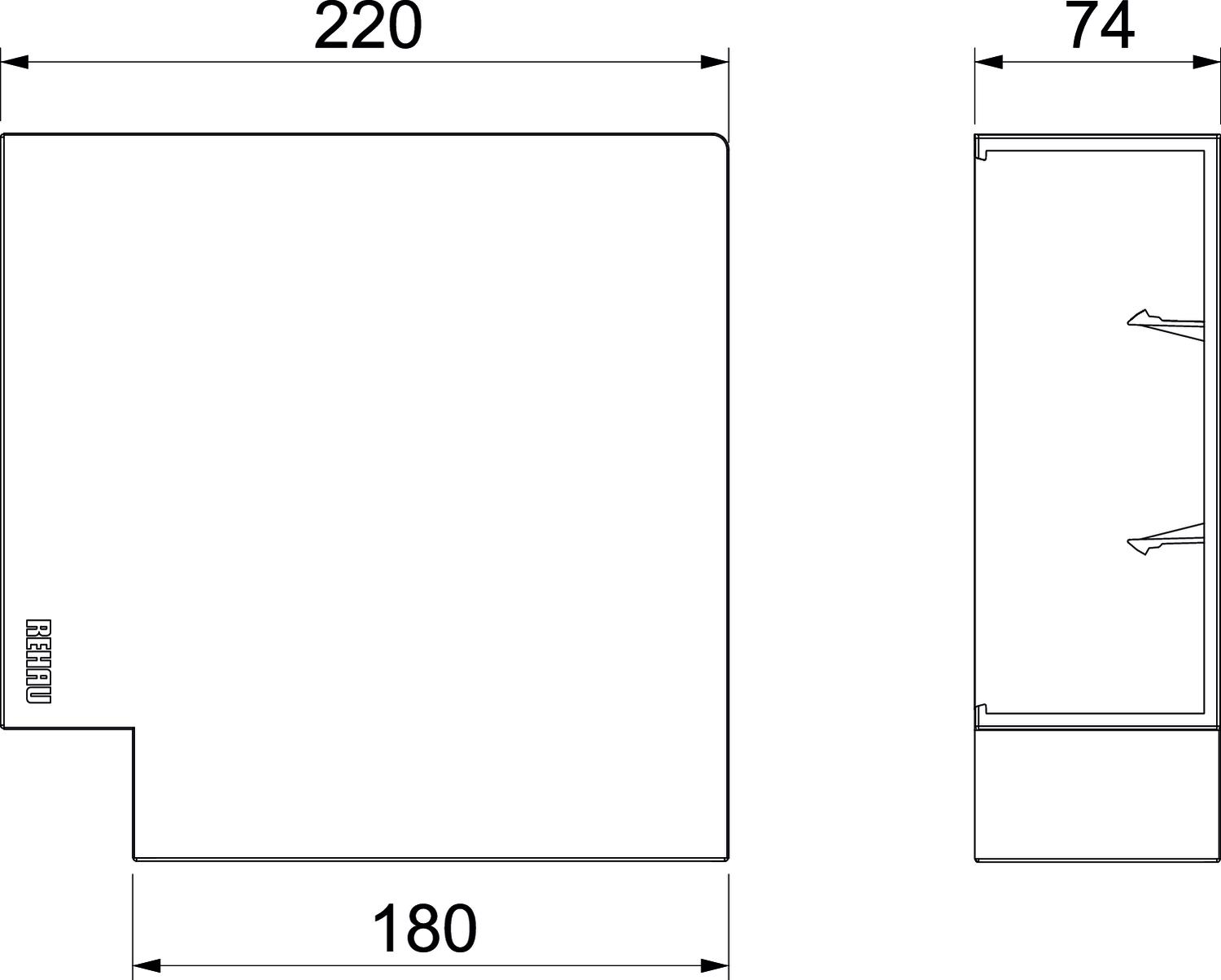

220 mm
74 mm
Product description
Product description
Flat angle as a fitting for changing the direction of the Signa Base device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle range, min. 90 mm
Antibacterial treatment no
Cable retaining clip no
Change of direction Vertical, rising/falling
Colour Light grey; RAL 7035
Cover mounting type Cross-over
Duct connector no
for duct width 170 mm
for trunking height 70 mm
Halogen-free yes
Height 74 mm
Length 220 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK07.
Protective film no
Symmetrical yes
Version for Hood fitting
Width 220 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
BRK FW70170 cws 220 mm 74 mm Cream; RAL 9001 6132769
10 piece
BRK FW70170 rws 220 mm 74 mm Pure white; RAL 9010 6132770
10 piece
BRK FW70170 lgr 220 mm 74 mm Light grey; RAL 7035 6132771
10 piece
