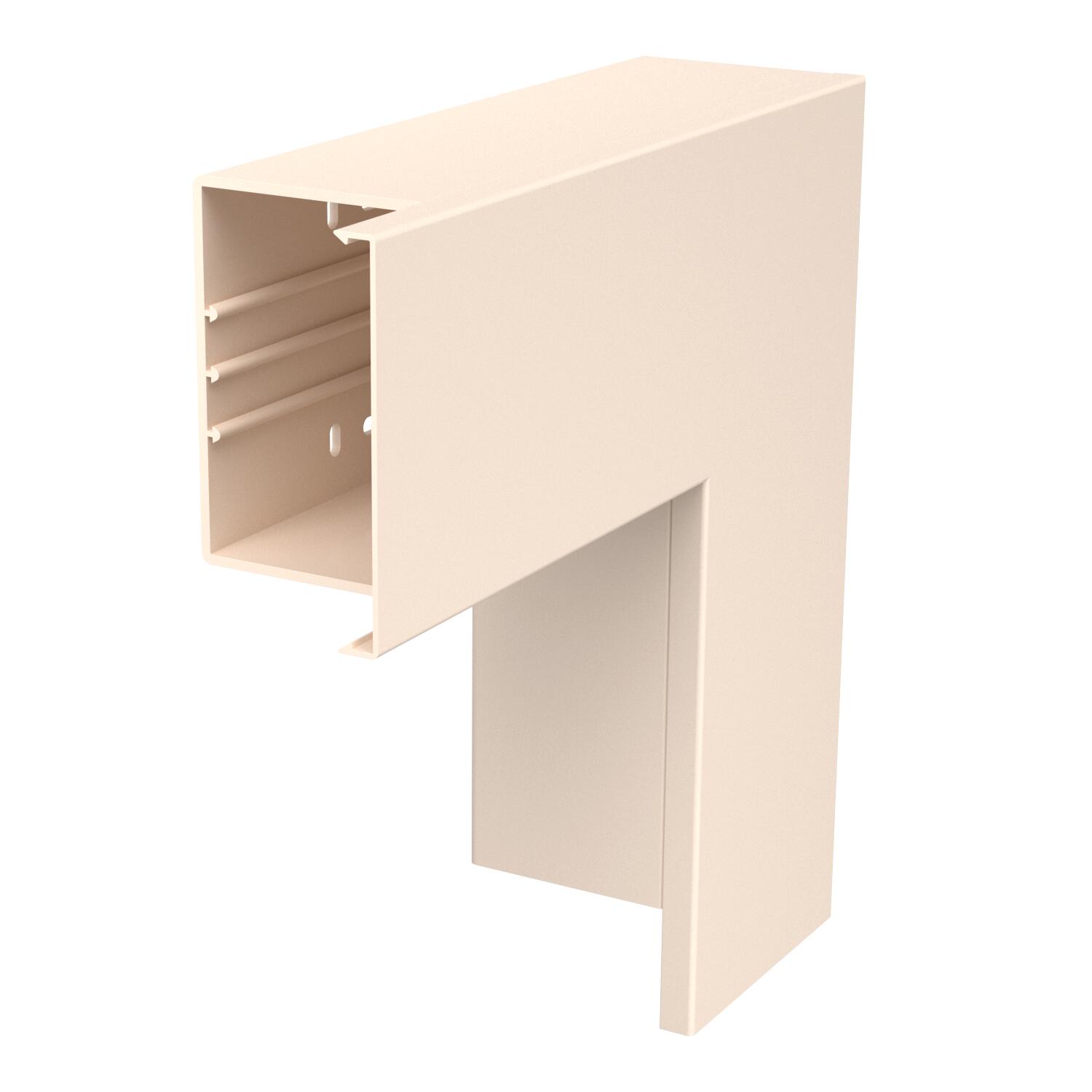

Flat angle, trunking type WDK 100130

Item no. 6161708 | EAN 4012197251123

Product description
Product description
Flat angle for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Cream; RAL 9001

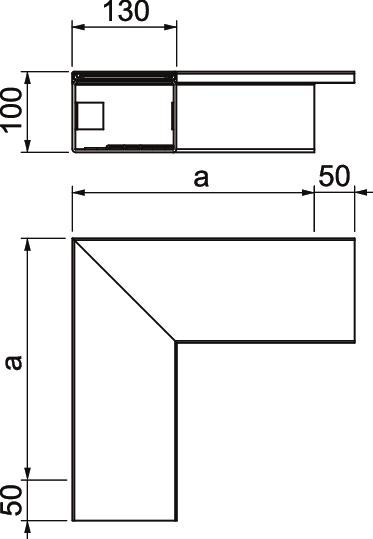

Dimension 300x130x100
Dimension a 300 mm
Fastening type Base perforation
for duct dimension 100 x 130
Halogen-free no
Height 100 mm
Length 300 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 100 mm
Version for Base and cover
Width 130 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK F100130CW Cream; RAL 9001 6161708
1 piece
WDK F100130GR Stone grey; RAL 7030 6161716
1 piece
WDK F100130LGR Light grey; RAL 7035 6161759
1 piece
WDK F100130RW Pure white; RAL 9010 6161775
1 piece
