Flat angle, trunking type WDK 100230 | | Light grey; RAL 7035
morepic-1 morepic-2

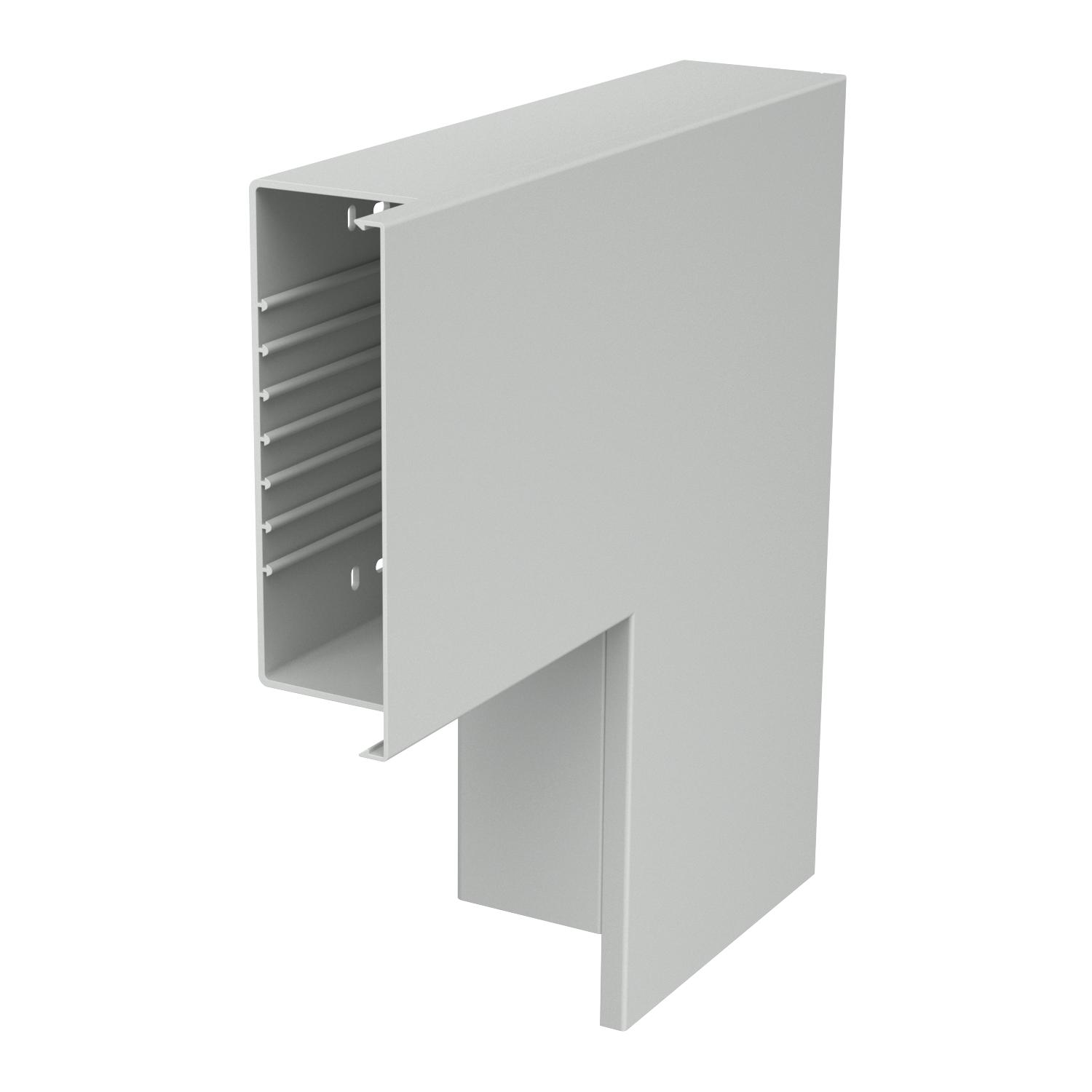

Flat angle, trunking type WDK 100230

Item no. 6182365 | EAN 4012197251246

Product description

Product description

Flat angle for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Light grey; RAL 7035

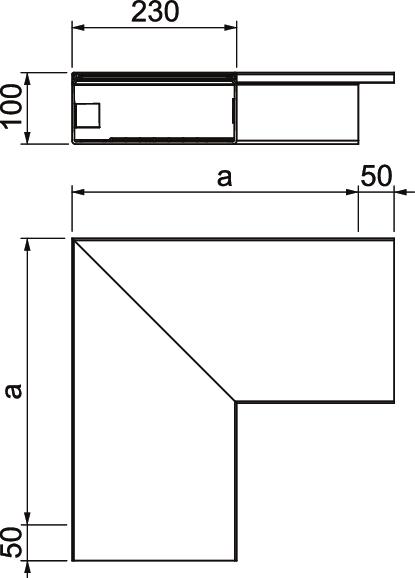

Dimension 400x230x100
Dimension a 400 mm
Fastening type Base perforation
for duct dimension 100 x 230
Halogen-free no
Height 100 mm
Length 400 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 100 mm
Version for Base and cover
Width 230 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK F100230CW Cream; RAL 9001 6182314
1 piece
WDK F100230GR Stone grey; RAL 7030 6182349
1 piece
WDK F100230LGR Light grey; RAL 7035 6182365
1 piece
WDK F100230RW Pure white; RAL 9010 6182713
1 piece
