- Product description
-

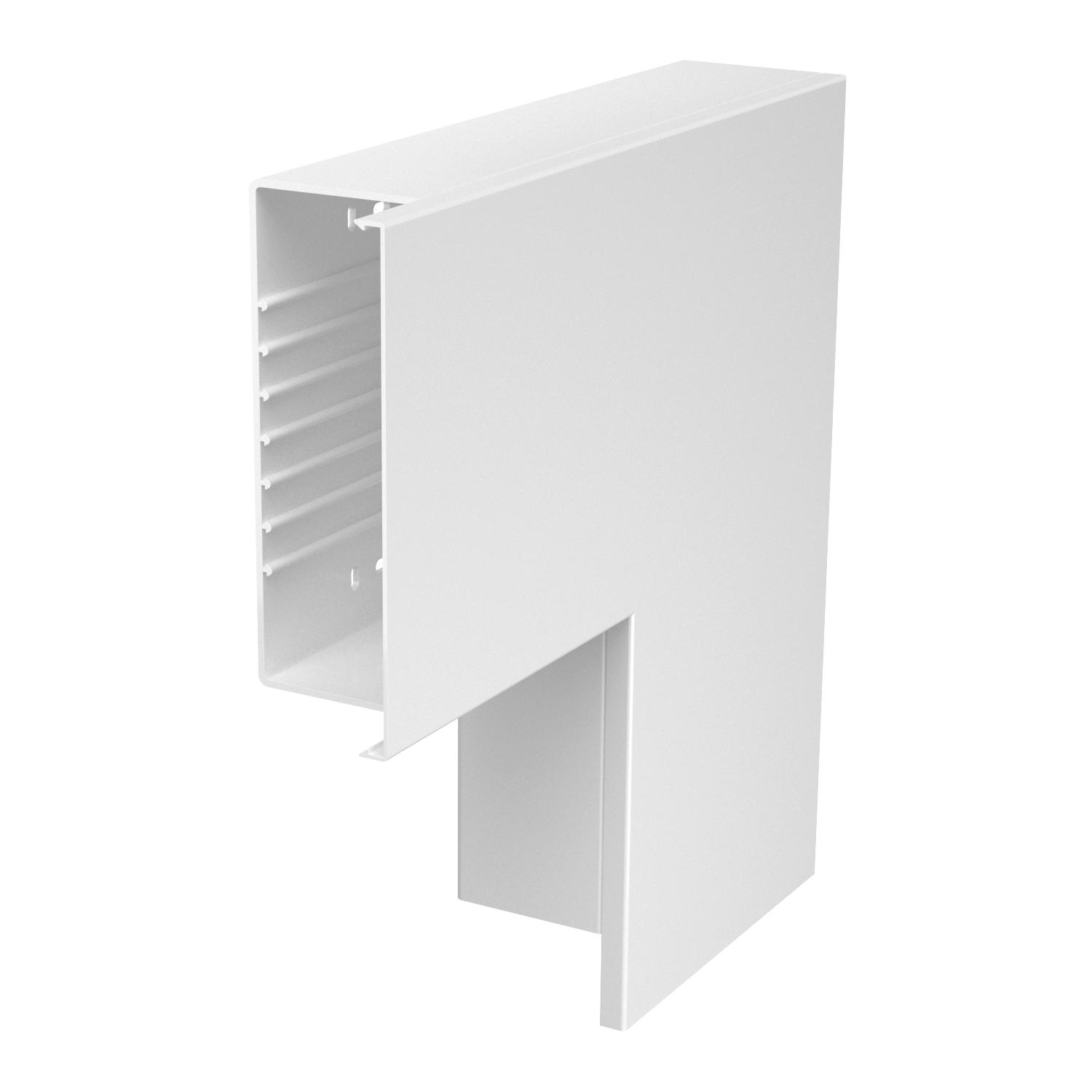

Product descriptionFlat angle for changing the direction of the WDK trunking.
- Technical data
-
Technical data

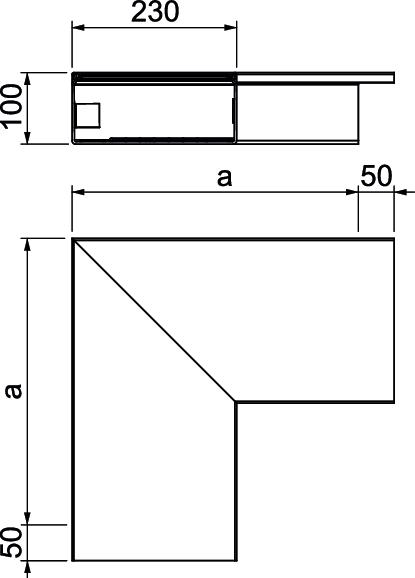

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 6,169 kg CO₂e / 1 Piece Dimension 400x230x100 Dimension a 400 mm Fastening type Base perforation for duct dimension 100 x 230 Halogen-free no Height 100 mm Length 400 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 100 mm Version for Base and cover Width 230 mm - All types
- Downloads
-
Data sheet WDK F100230RW / 6182713 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK F100230RW / 6182713 , 0.13MB , pdfUK Declaration of Conformity WDK F100230RW / 6182713 , 0.14MB , pdfREACH Declaration of conformity WDK F100230RW / 6182713 , 0.12MB , pdfRoHS Declaration of conformity WDK F100230RW / 6182713 , 0.12MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdf
