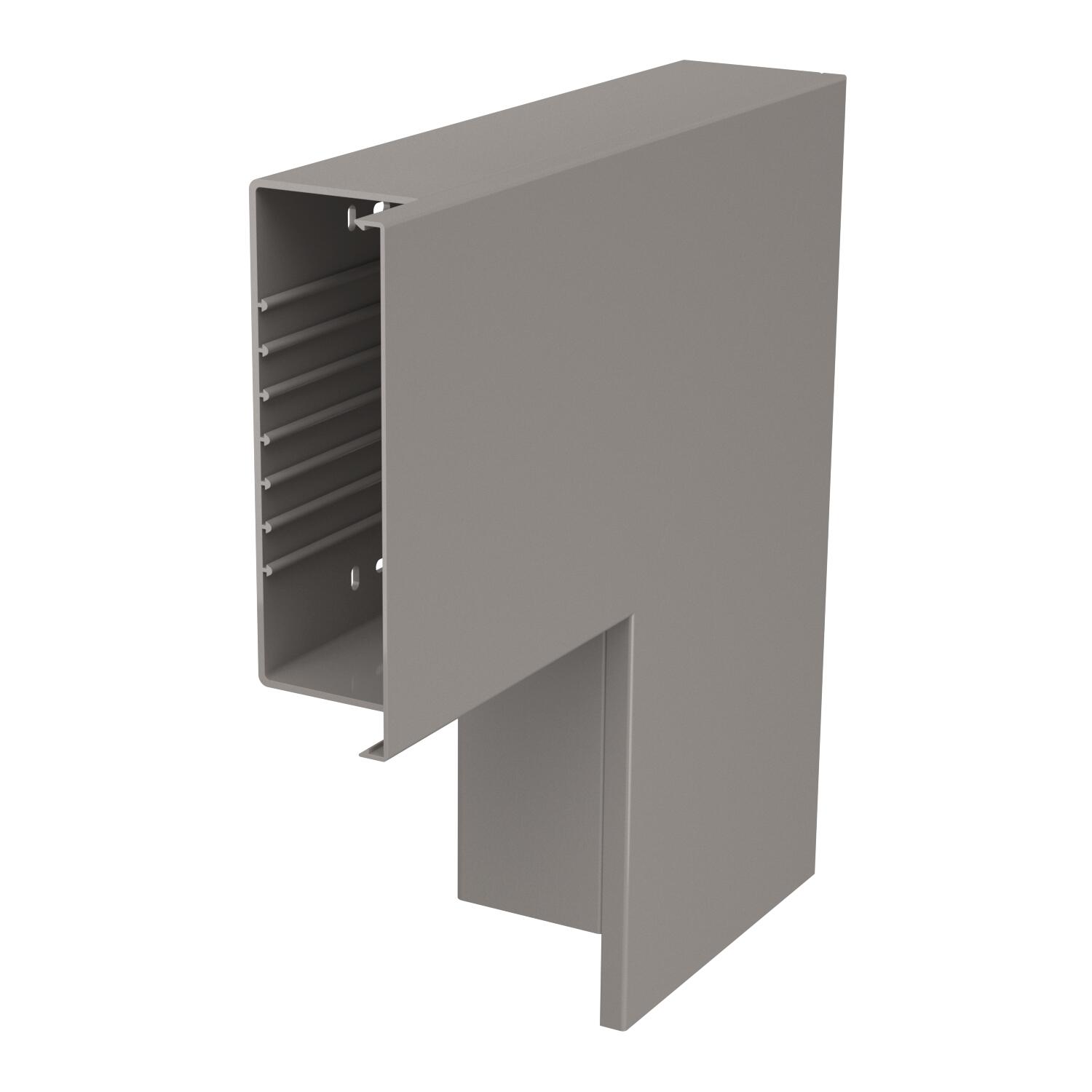

Flat angle, trunking type WDK 100230
Item no. 6182349 | EAN 4012197251208
- Product description
-
Product description
Flat angle for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Stone grey; RAL 7030 Dimension 400x230x100 Fastening type Base perforation for duct dimension 100 x 230 Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 100 mm Version for Base and cover Dimensions

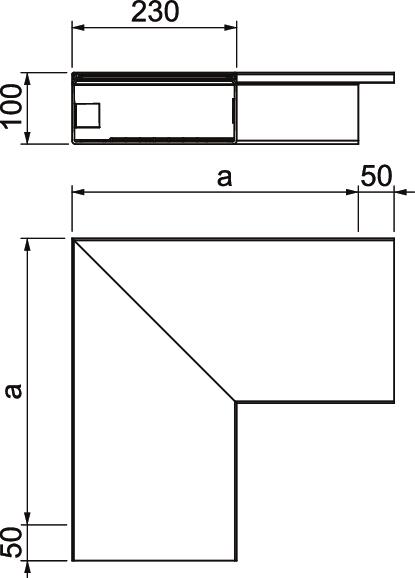

Dimension a 400 mm Height 100 mm Length 400 mm Width 230 mm - All types
