Flat angle, trunking type WDK 80170 | | Cream; RAL 9001
morepic-1 morepic-2

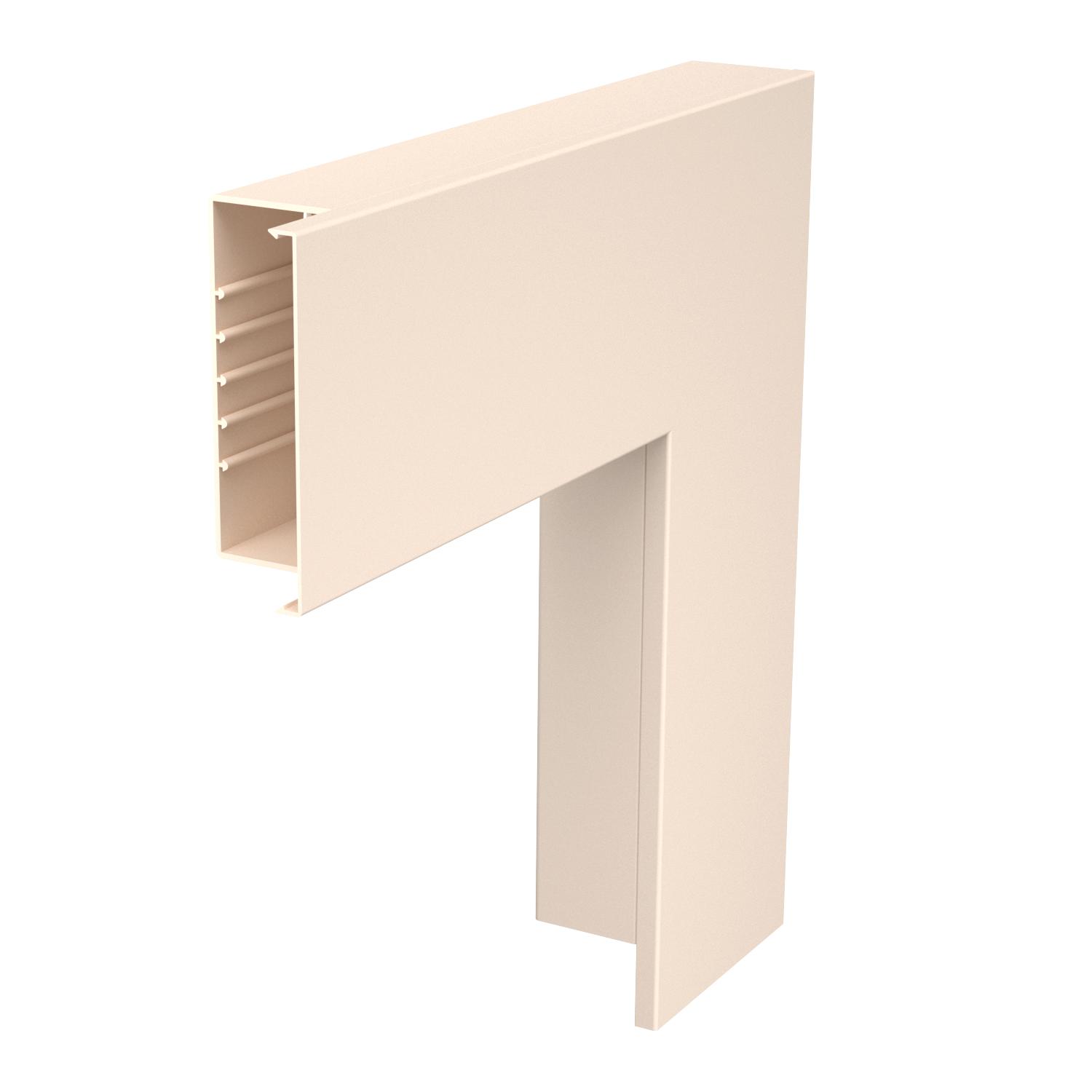

Flat angle, trunking type WDK 80170

Item no. 6182748 | EAN 4012197250928

Product description

Product description

Flat angle for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Cream; RAL 9001

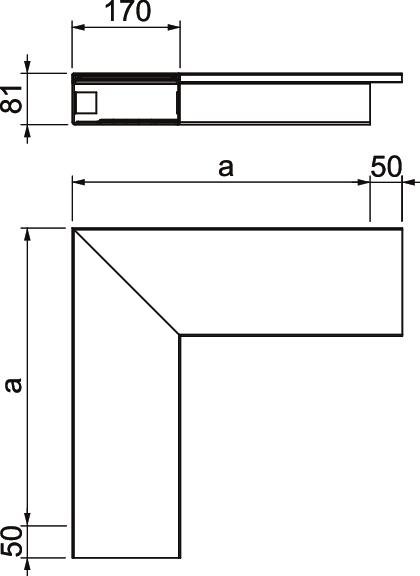

Dimension 470x170x80
Dimension a 470 mm
Fastening type Base perforation
for duct dimension 80 x 170
Halogen-free no
Height 80 mm
Length 470 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 80 mm
Version for Base and cover
Width 170 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK F80170CW Cream; RAL 9001 6182748
1 piece
WDK F80170GR Stone grey; RAL 7030 6182764
1 piece
WDK F80170LGR Light grey; RAL 7035 6183523
1 piece
WDK F80170RW Pure white; RAL 9010 6183531
1 piece
