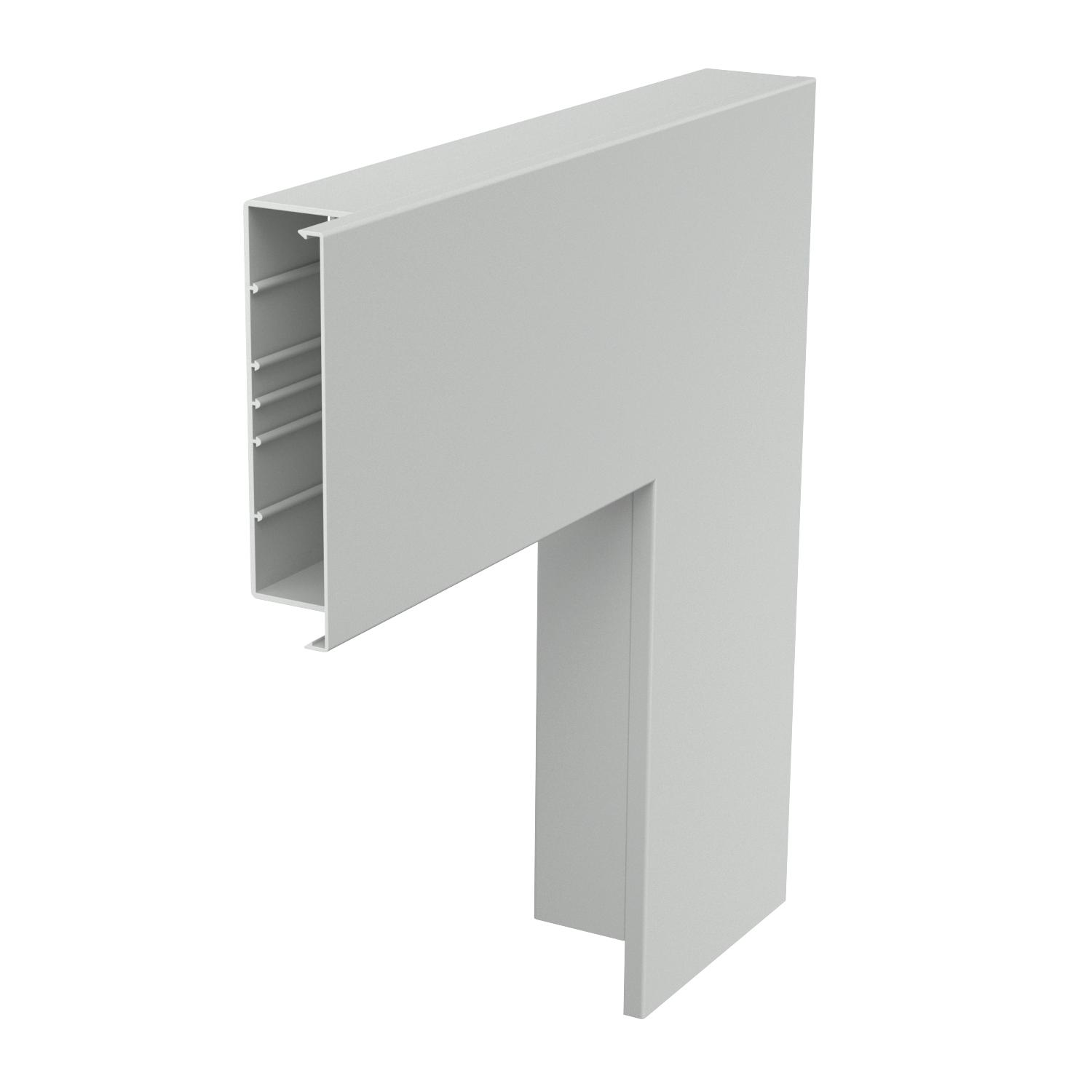

Flat angle, trunking type WDK 80210
Item no. 6192111 | EAN 4012197251048
- Product description
-
Product description
Flat angle for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 560,5x210x80 Fastening type Base perforation for duct dimension 80 x 210 Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 80 mm Version for Base and cover Dimensions
Dimension a 560,5 mm Height 80 mm Length 560 mm Width 210 mm - All types
