Flat cable threaded connection, metric thread M20, stone grey 17 | 19 | 6 | 8 | M20
morepic-1 morepic-2

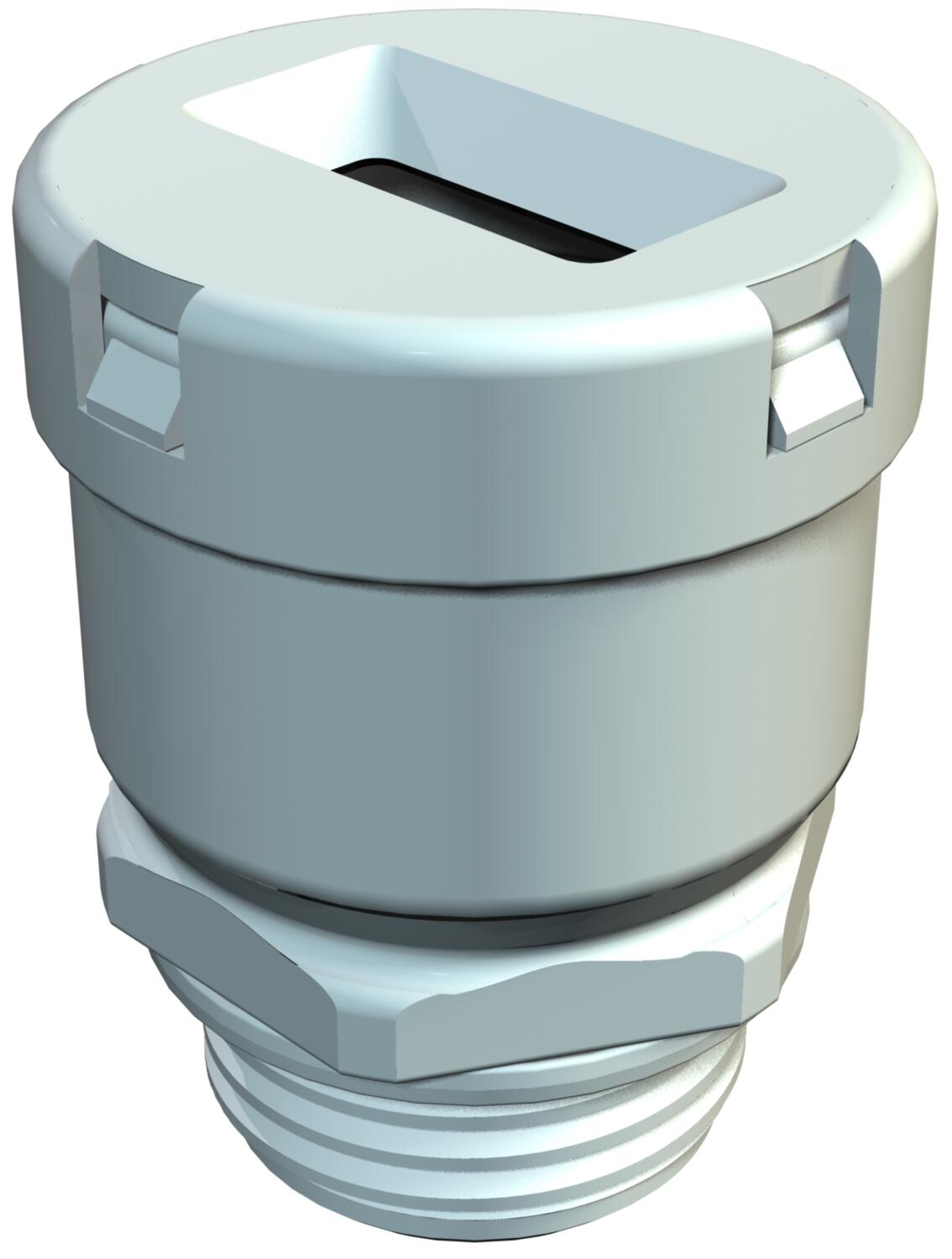

Flat cable threaded connection, metric thread M20, stone grey

Item no. 2013002 | EAN 4012195515173

2013002 / 106 FL M20 8 19
17 mm
19 mm
6 mm
8 mm
M20
Product description
Product description
Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 31
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Stone grey; RAL 7030

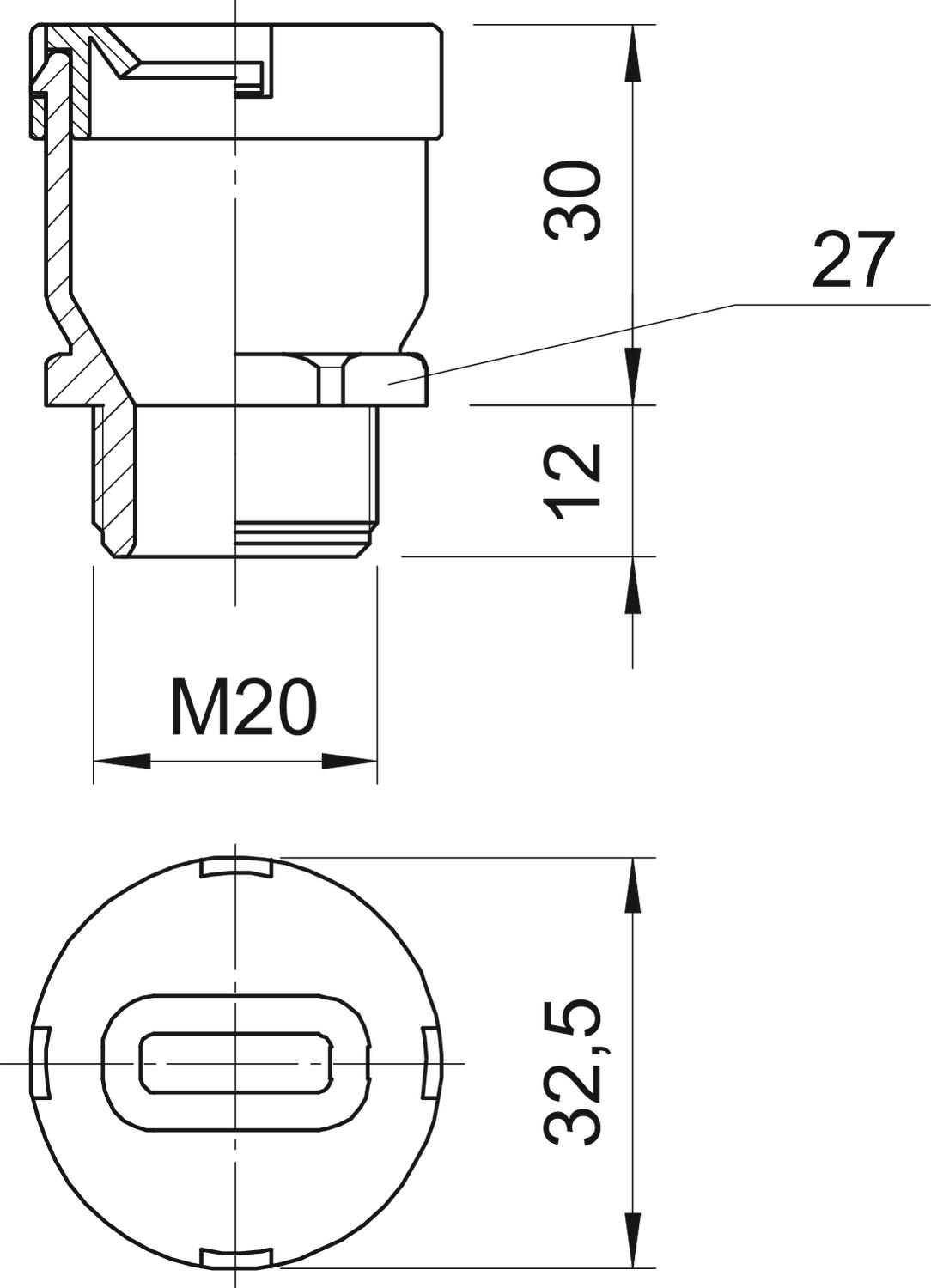

Dimension M20
Dimension D 32,5 mm
Dimension G M20 mm
Dimension L 42 mm
Dimension L1 12 mm
Dimension L2 30 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland yes
Flat cable/width, max. 19 mm
Flat cable/width, min. 17 mm
Flat cables/thickness, max. 8 mm
Flat cables/thickness, min. 6 mm
For Ex zone Without
Impact-resistant no
Material Polyethylene
Protection rating IP31
Sealing insert, multiple no
Strain relief option no
Thread M20
Thread type Metric
Type of seal Sealing ring
Version for Straight
WAF 27
With locknut no
All types

All types

Types Flat cable/width, min. Flat cable/width, max. Flat cables/thickness, min. Flat cables/thickness, max. Thread Item no. Quantity SSU
106 FL M20 8 19 17 mm 19 mm 6 mm 8 mm M20 2013002
50 piece
