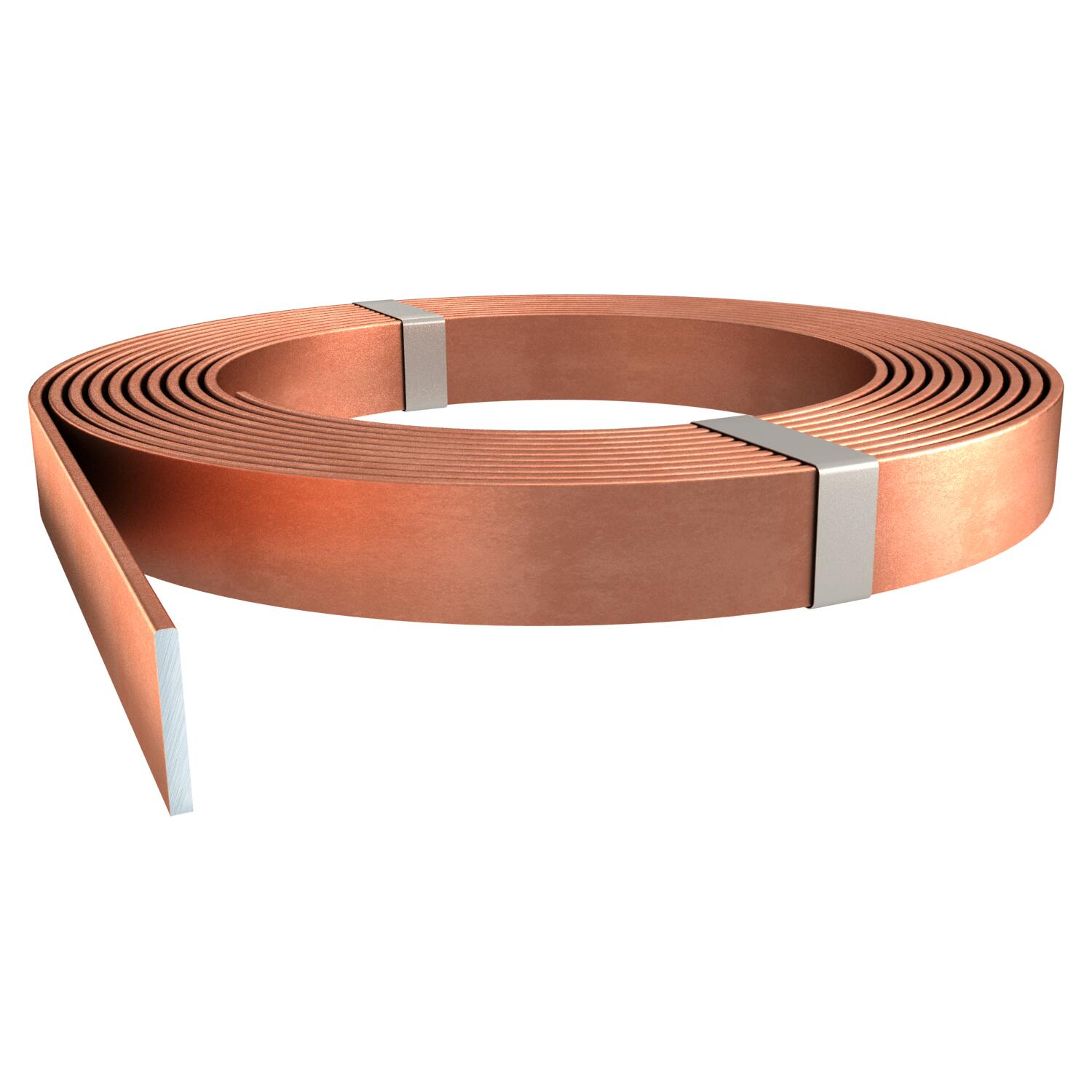

Flat conductor, copper sheathed

Item no. / Types	5020980 / 5052 STCU 30X3

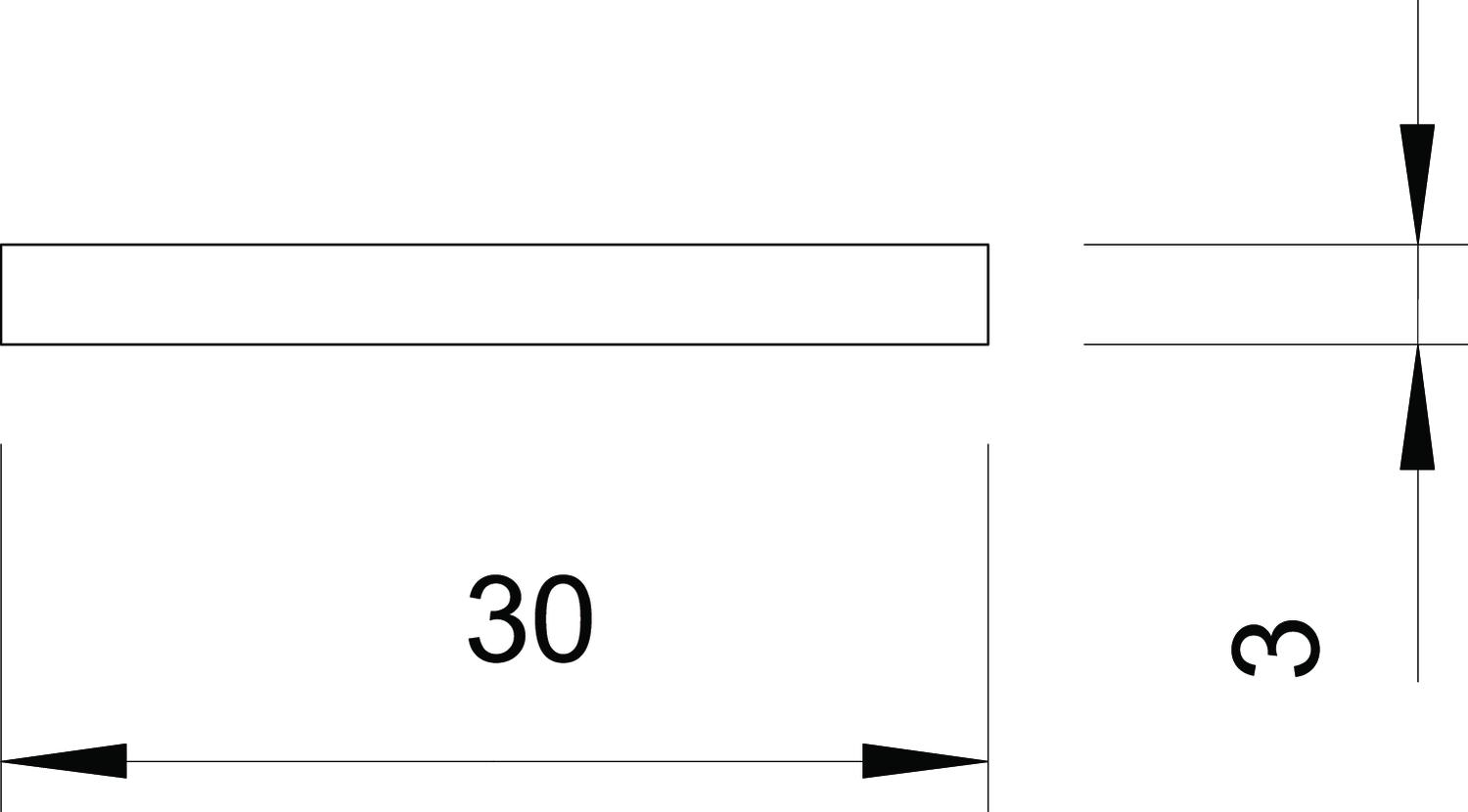

Width	30 mm

Height	3 mm

Product description

Product description

• Can be used as a conductor according to IEC/ EN 62561-2 (VDE 0185-561-2)
• Copper layer thickness: Min. 70 µm

Technical data

Material	Steel
Surface	Copper-plated

Length	50000 mm
Width	30 mm

All types

Types	Width	Height	Item no.	Quantity	SSU
5052 STCU 30X3	30 mm	3 mm	5020980	m	50 m
