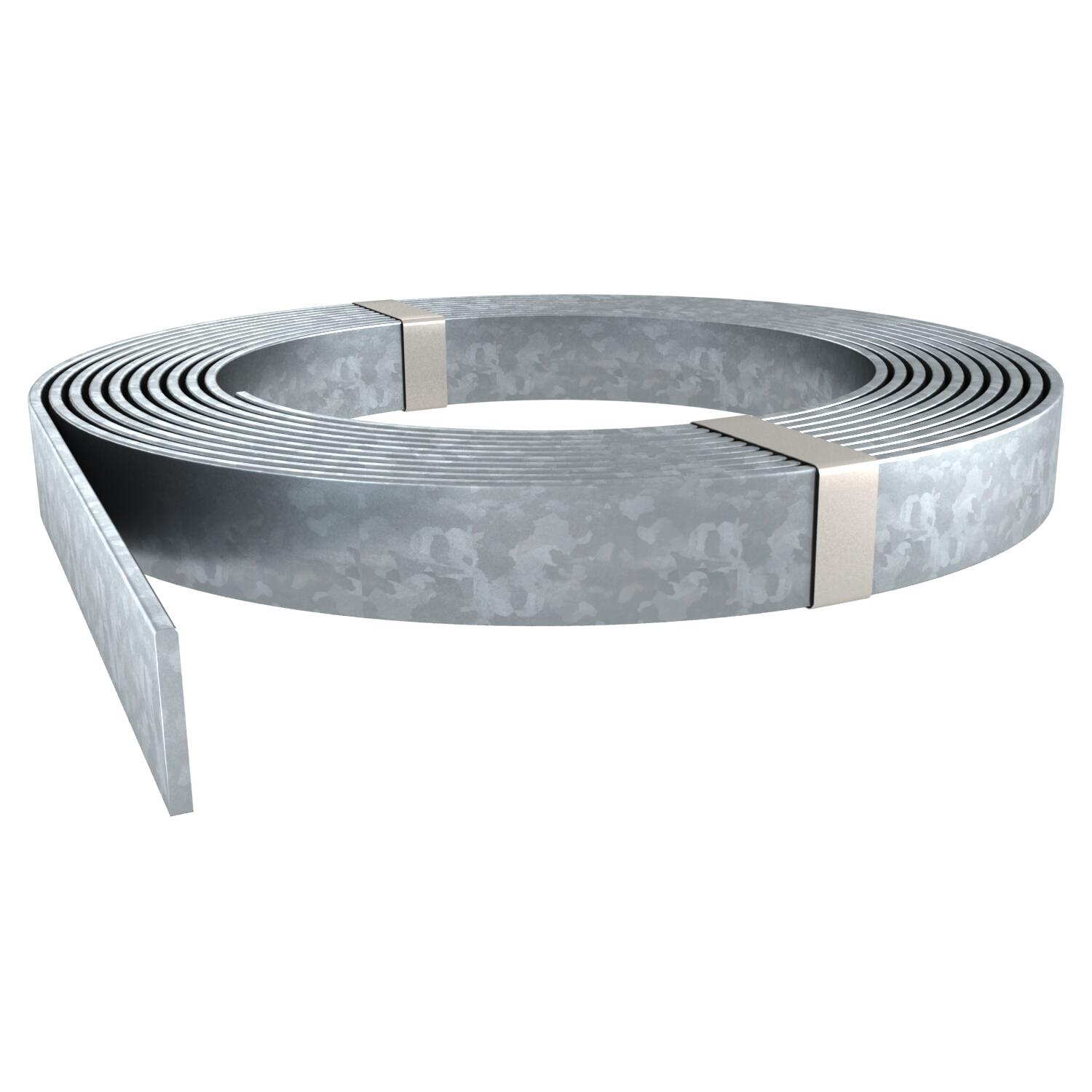

Flat conductor, galvanised steel for foundation earthing

Item no. 5020751 | EAN 4012195316756

Product description
Product description
• Zinc coating: 225 g/m² (approx. 30 µm)
• Can be used as a conductor
• For foundation earthing, not routed in the ground
Technical data

Technical data

Cross-section 75 mm²

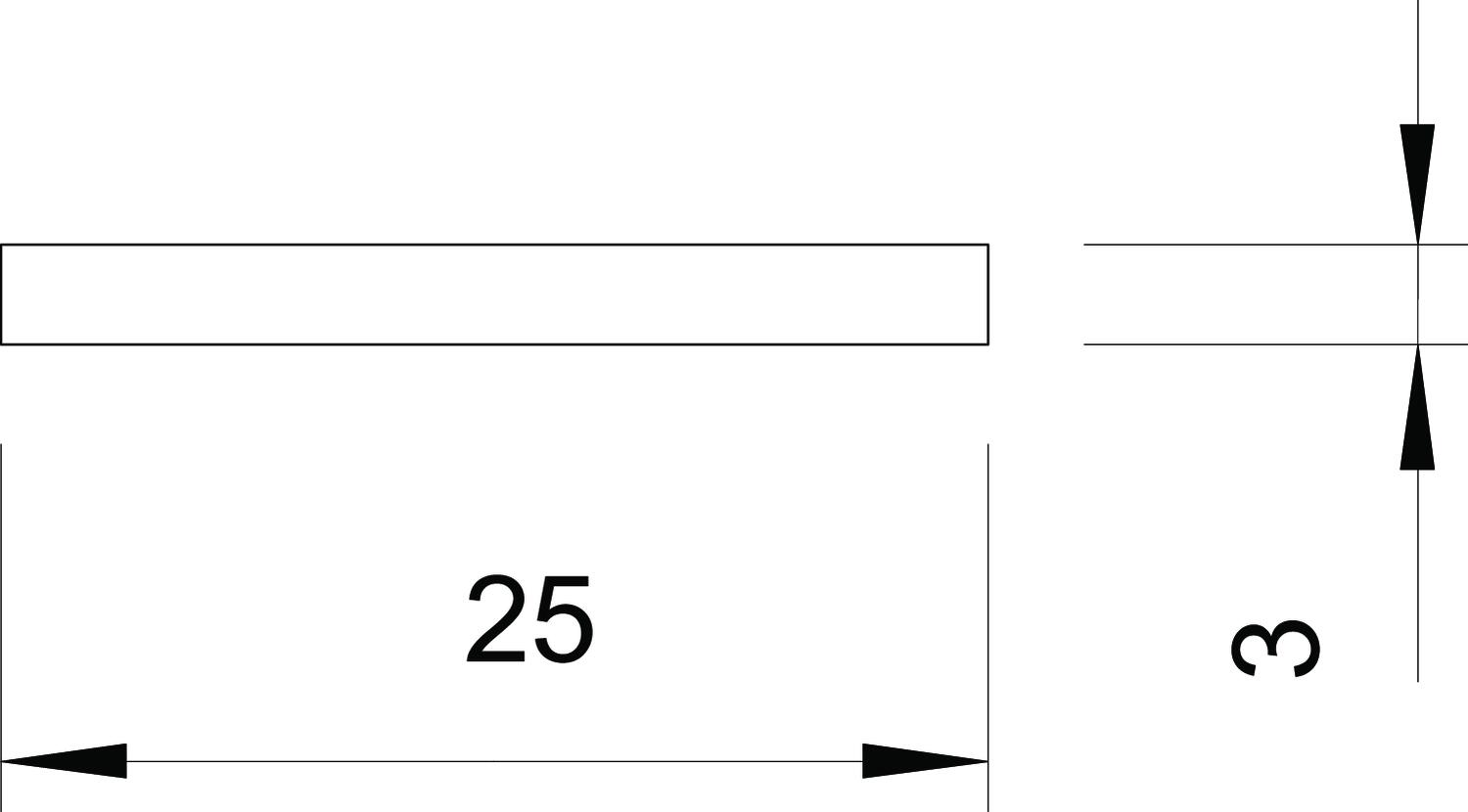

Dimension 25x3mm
Dimension B 25 mm
Dimension H 3 mm
Height 3 mm
Length tolerance ± 5 %
Material Steel
Nomal ring (approx. m) 30
Normal ring (ca. kg) 18
Surface Hot-dip galvanised
Width 25 mm
All types

All types

Types Width Height Item no. Quantity SSU
5052 30X3.5 30.5 mm 3.5 mm 5020638
30 m
5052 25X3 25 mm 3 mm 5020751
30 m
5052 30X3 30 mm 3 mm 5020808
30 m
