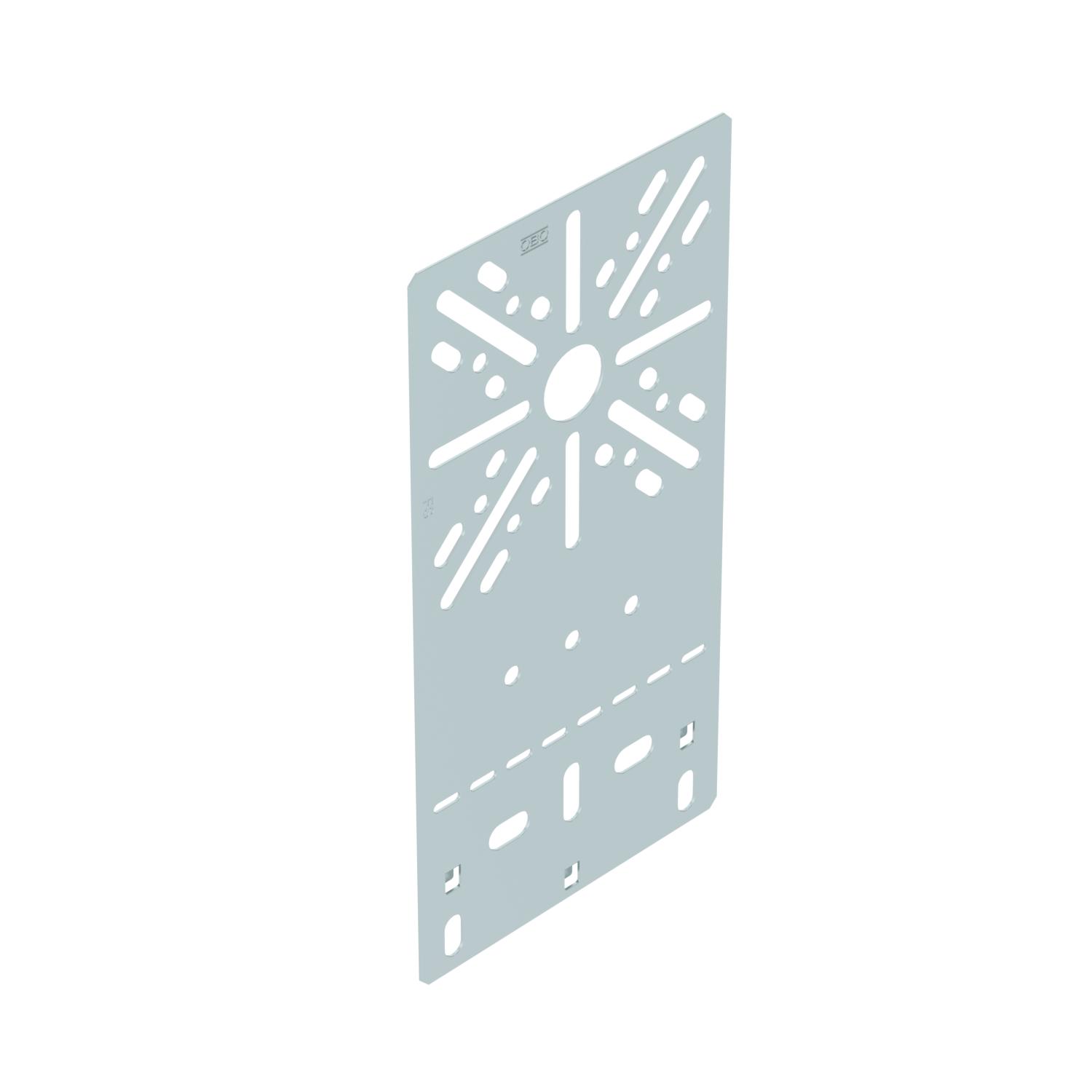

Flat mounting plate FS

Item no. 7084757 | EAN 4012196146772

7084757 / MP FL FS

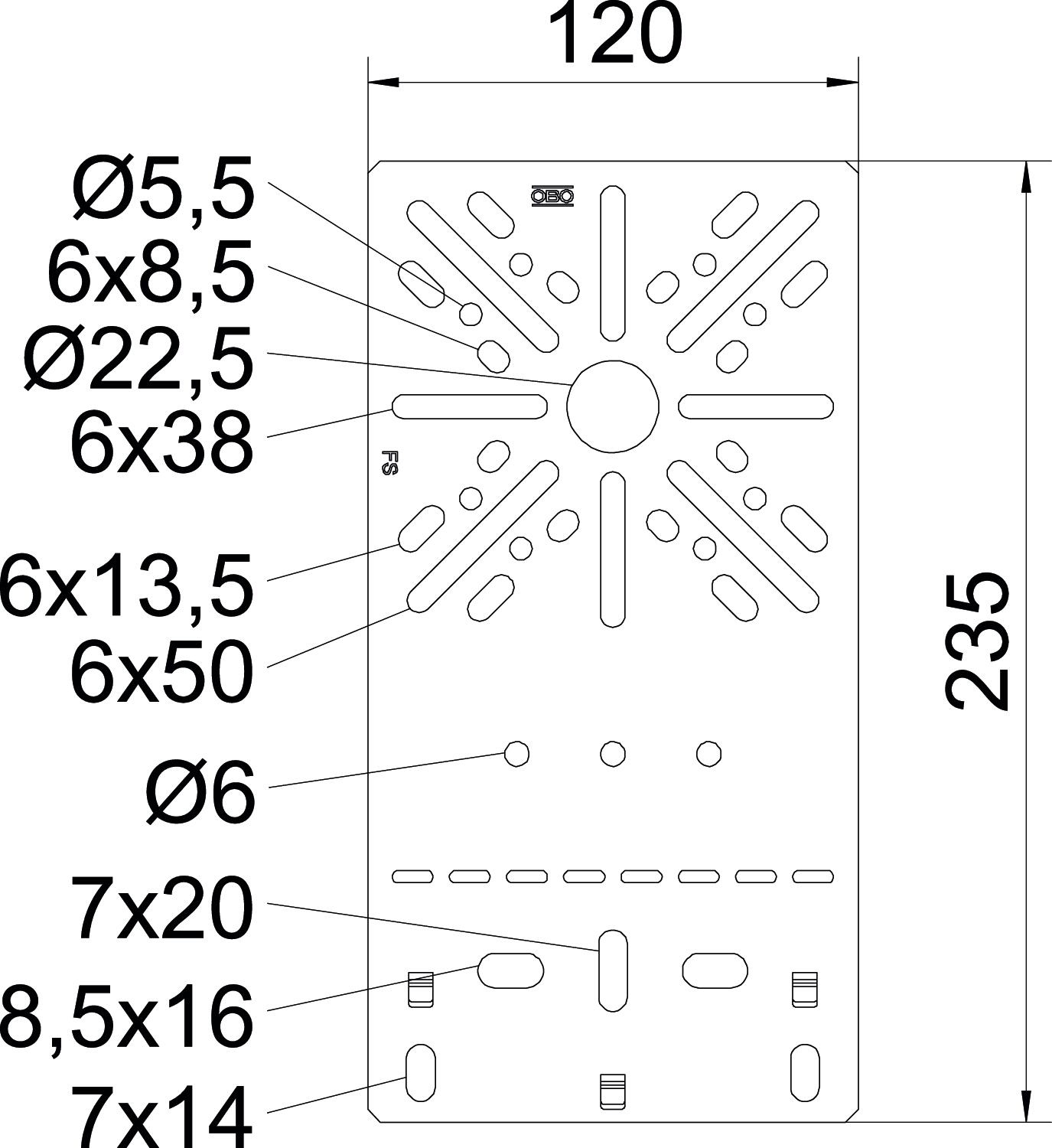

120 mm
235 mm
Product description
Product description
Flat mounting plate, for fastening on the side rail of the cable tray.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
Technical data

Technical data

Colour zinc
Dimension 235x120
Fastening type Screw fastening
Height 235 mm
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanized
Version for Vertical
Width 4,72 in
Width 120 mm
All types

All types

Types Width Height Item no. Quantity SSU
MP FL FS 120 mm 235 mm 7084757
40 piece
