Flexkanal

Item no. 6154922 | EAN 4012196277575

1000 mm
Product description

Product description

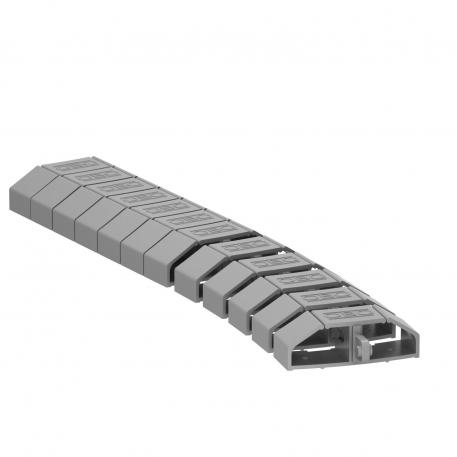

The Flexkanal runs your cables ordered and protected to the desk. It connects the Deskbox with the dado trunking or with the floor connection box. When extended, the Flexkanal is 1,000 mm long, 60 mm wide and 20 mm high.

The trunking consists of two chambers, capacity per chamber:

two cables of 8.5 mm diameter or three cables of 7.5 mm diameter or

four cables of 7.0 mm diameter or five cables of 6.0 mm diameter.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 1000mm
Length 1000 mm
All types

All types

Types Length Item no. Quantity SSU
FLK-2K LGR 1000 mm 6154922
1 m
FLK-2K SWGR 1000 mm 6154930
1 m
Downloads

Download

No invitation to tender text is available for this product.
