Product description

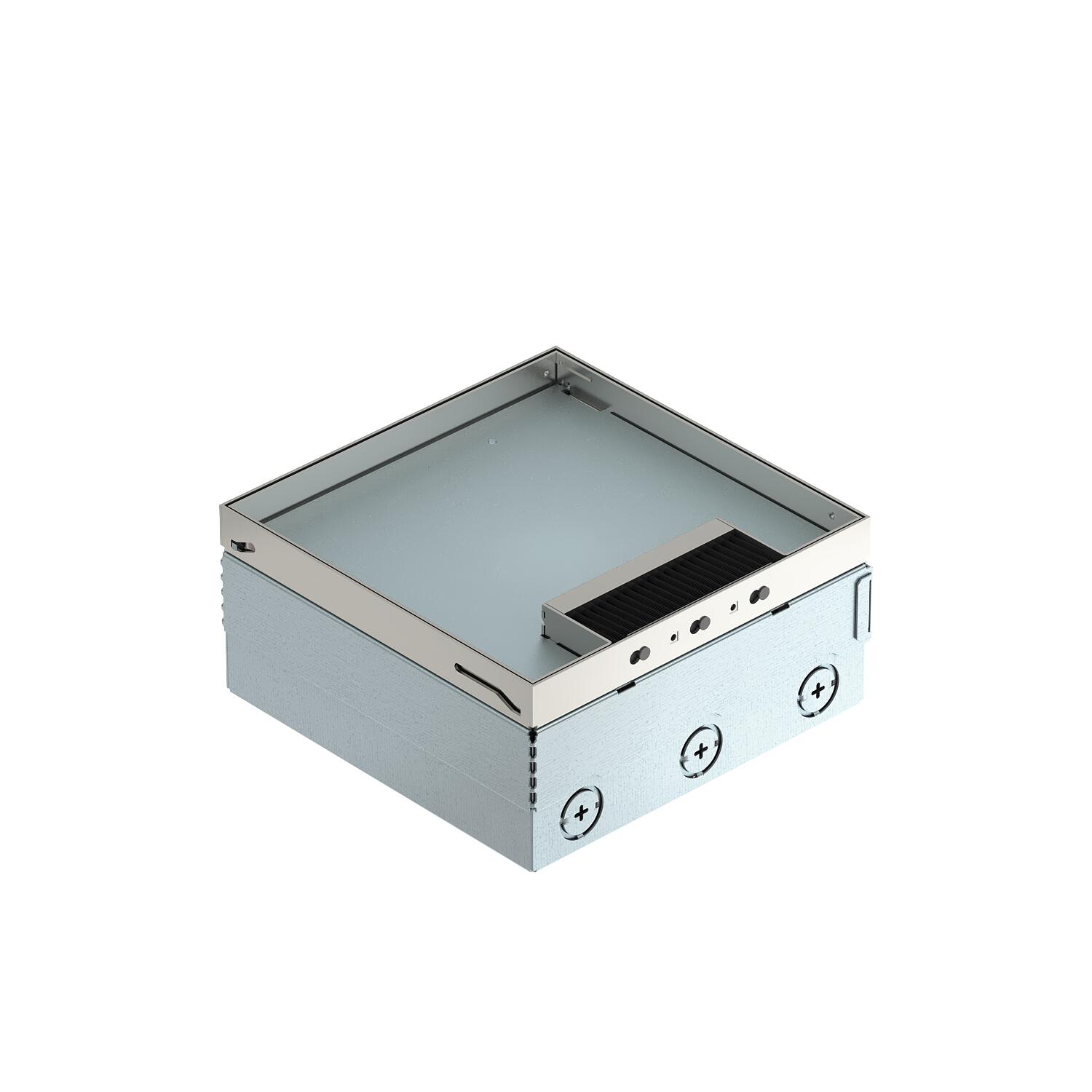

Square installation unit for use in dry-care cavity and screed floors for indoor use.

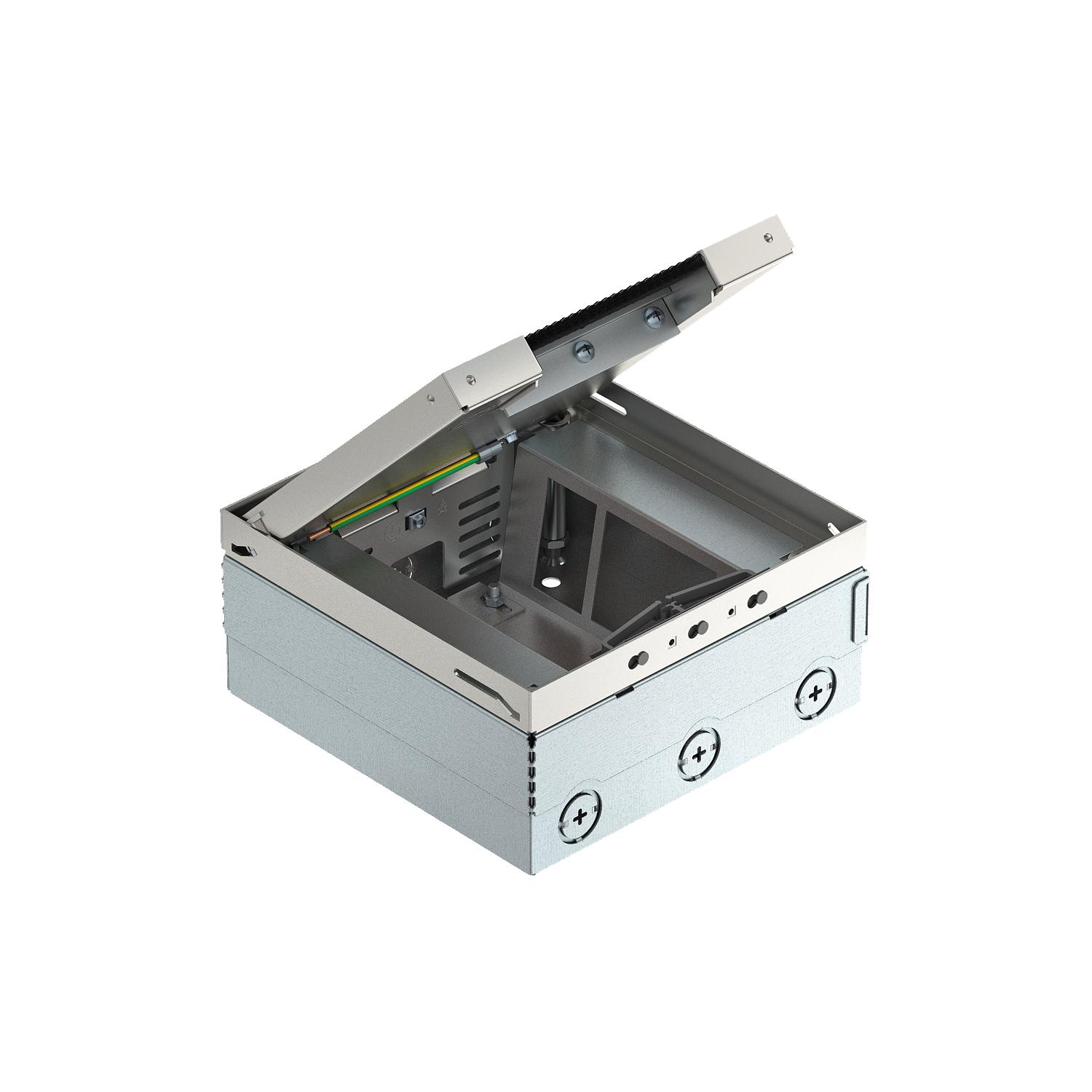

Installation housing with pre-marked insertion openings for pipes (M25). Cover adjustable to the top edge of the floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height adjustment range is +30 mm.
Flushfloor cable outlet through brush bar.
Device support made of galvanised sheet steel for 6x FLF 3/5 or 4x FLF 3/5 and 1x FLF 6/5.
Lid can be covered with floor covering, 15 mm.
- Technical data
-
Technical data
Cable outlet version Brush bar Cover version Floor covering recess Equipment FLF supports Floor covering protection frame no Floor covering thickness 15 mm Floor height, max. 125 mm Floor height, min. 95 mm Height-adjustment range, max. 125 mm Height-adjustment range, min. 95 mm Length of external dimensions 199 mm Length of installation dimensions 202 mm Material Stainless steel Number of mounting boxes 2 Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Screed height, max. 110 mm Screed height, min. 95 mm Suitable for cavity floor installation yes Suitable for raised floor installation no Suitable for underfloor ducts no Suitable for wet care no Version for Square Wide external dimensions 199 mm Wide installation dimensions 202 mm With floor covering recess yes Dimensions

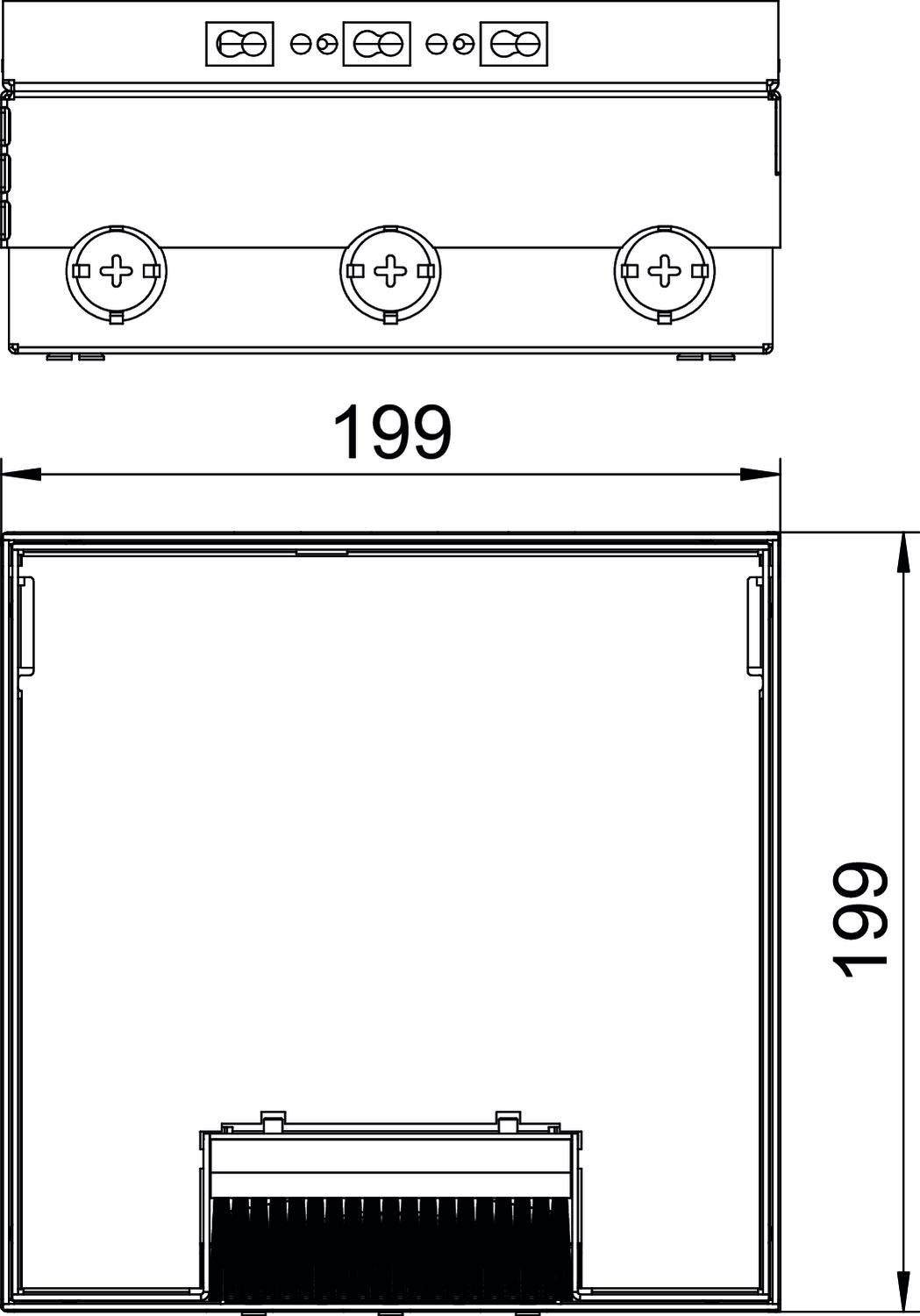

Dimension h 95 mm Length 202 mm Width 202 mm - All types
