Floor box UDHOME9, two double NF, stainless steel

Item no. 7427316 | EAN 4012195916765

7427316 / UDHOME9 2V UT N
15 mm
Product description
Product description

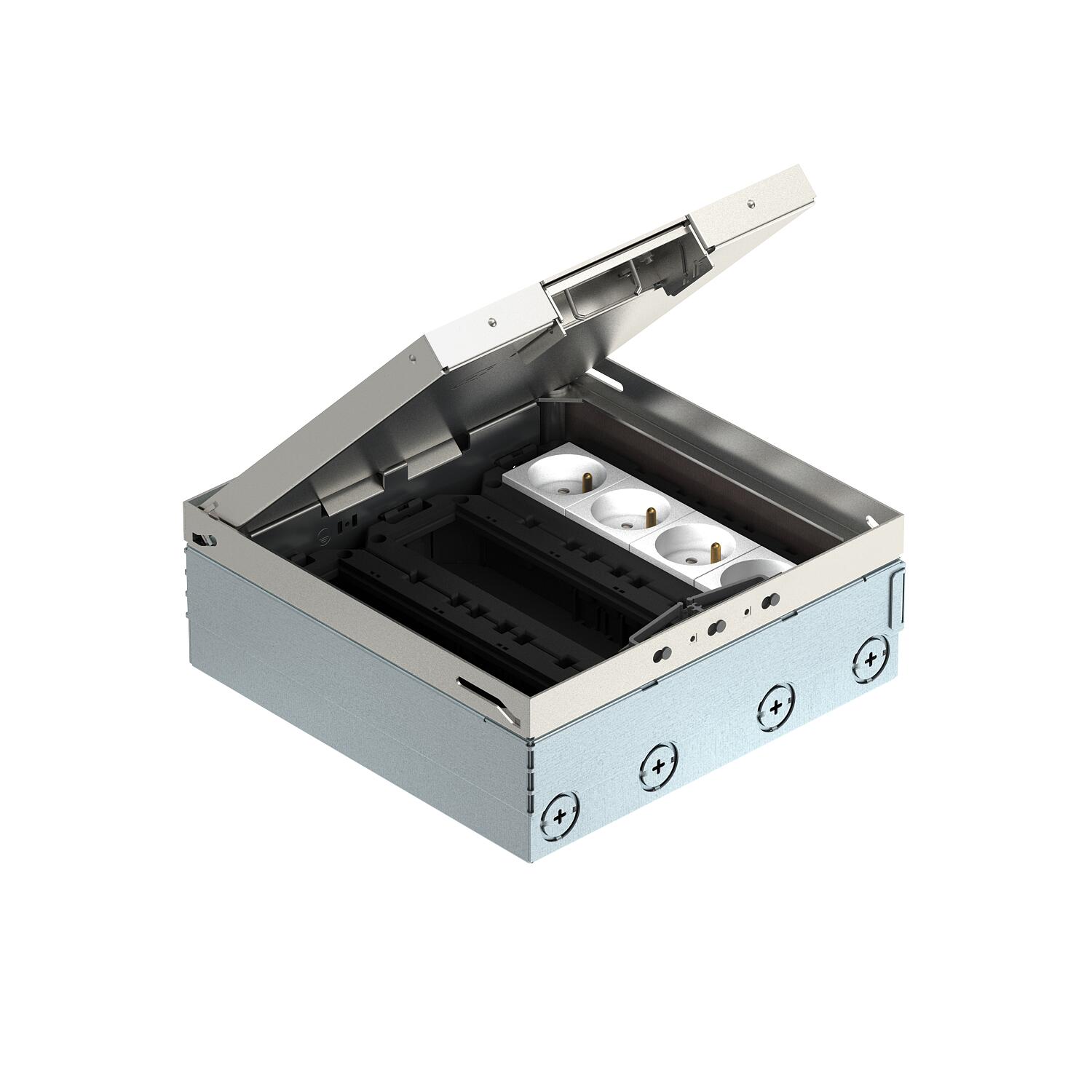

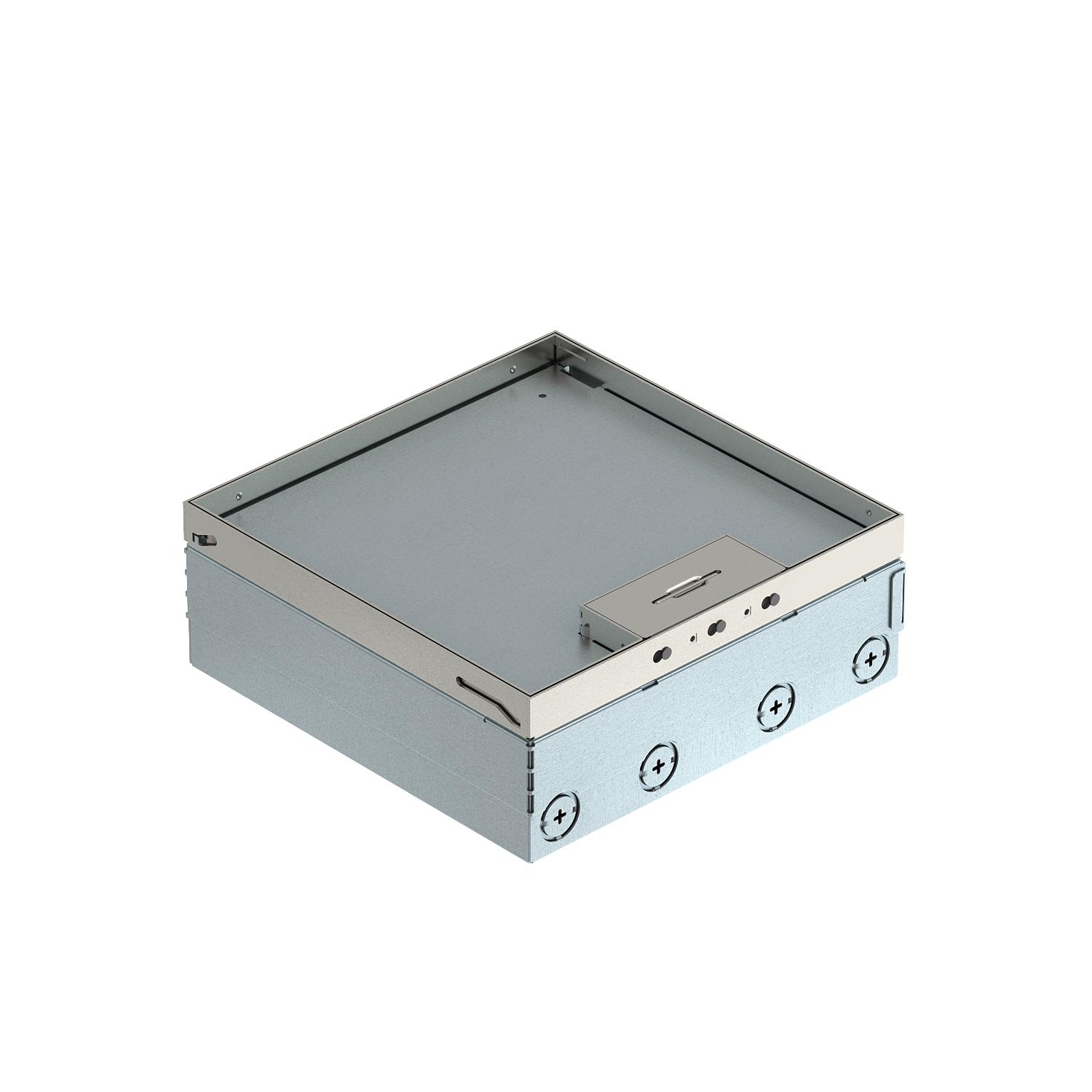

Square floor box for use in dry-cleaned cavity and screed floors for indoor use. Installation housing with pre-marked insertion openings for pipes (M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. 15 mm floor covering recess in the hinged cover. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.

The scope of delivery contains 3 universal supports UT4 45 4 for direct mounting of Modul 45 devices. Of these, one is equipped with two double NF sockets in pure white.

Surfaces visible in the floor covering made of: Stainless steel, material 1.4301.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Cover version Floor covering recess
CO₂ Footprint (GWP) Cradle-to-Gate 24,976 kg CO₂e / 1 Piece

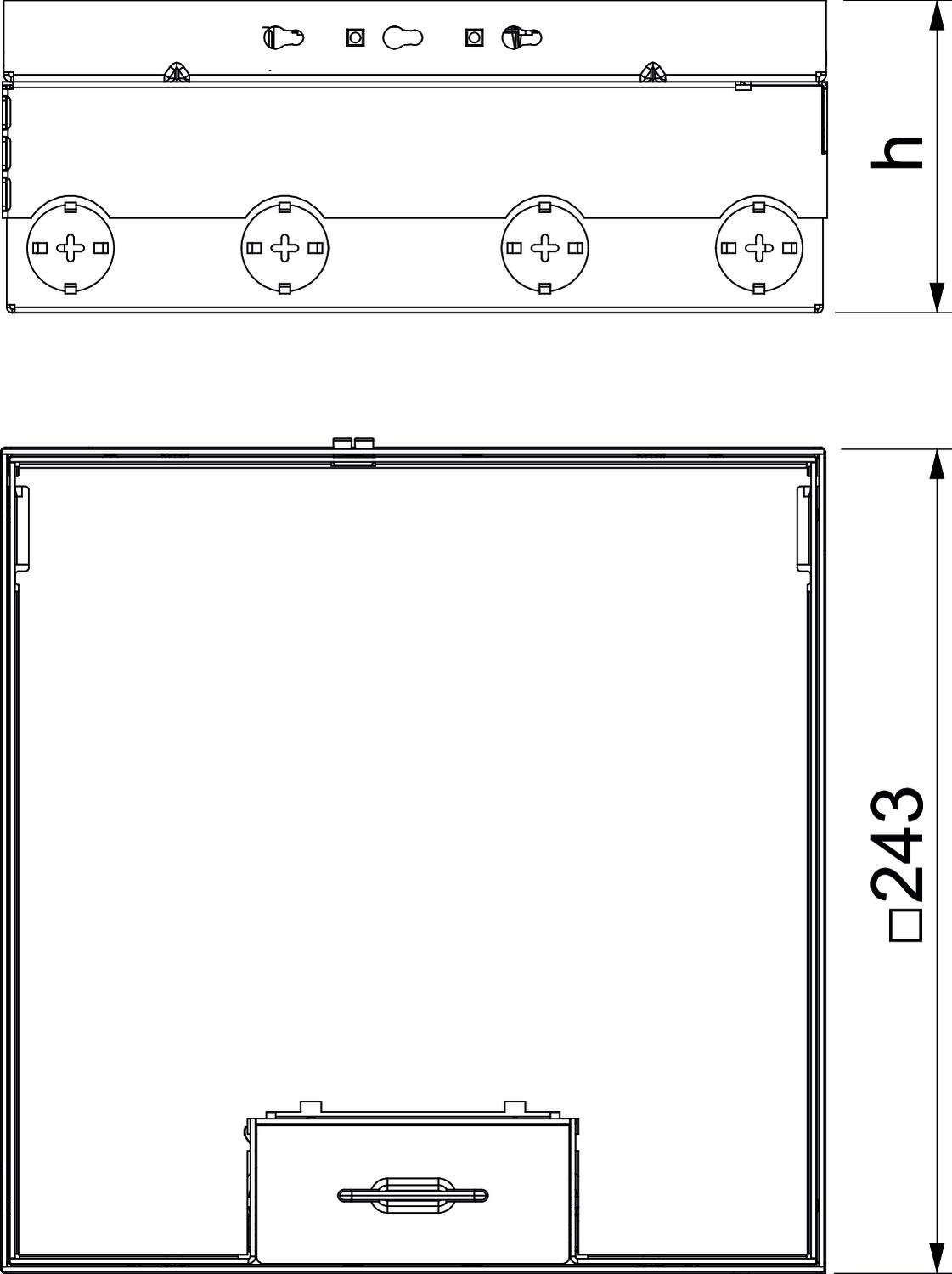

Dimension h 95 mm
Equipment 3 UT4, 2 double LF socket
Floor covering thickness 15 mm
Floor height, max. 125 mm
Floor height, min. 95 mm
Height-adjustment range, max. 125 mm
Height-adjustment range, min. 95 mm
Length 246 mm
Length of external dimensions 243 mm
Length of installation dimensions 246 mm
Material Stainless steel
Opening mechanism Handle
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK10
Screed height, max. 110 mm
Screed height, min. 95 mm
Wide external dimensions 243 mm
Wide installation dimensions 246 mm
Width 246 mm
All types

All types

Types Floor covering thickness Item no. Quantity SSU
UDHOME9 2V UT N 15 mm 7427316
1 piece
Downloads

Download

Download

EU declaration of conformity UDHOME9 2V UT N / 7427316 , 0.13MB , pdf
