Floor box UDHOME9 with brush bar, stainless steel, with FLF support, cover can be covered
Item no. 7427332 | EAN 4012195916802
- Product description
-
Product description

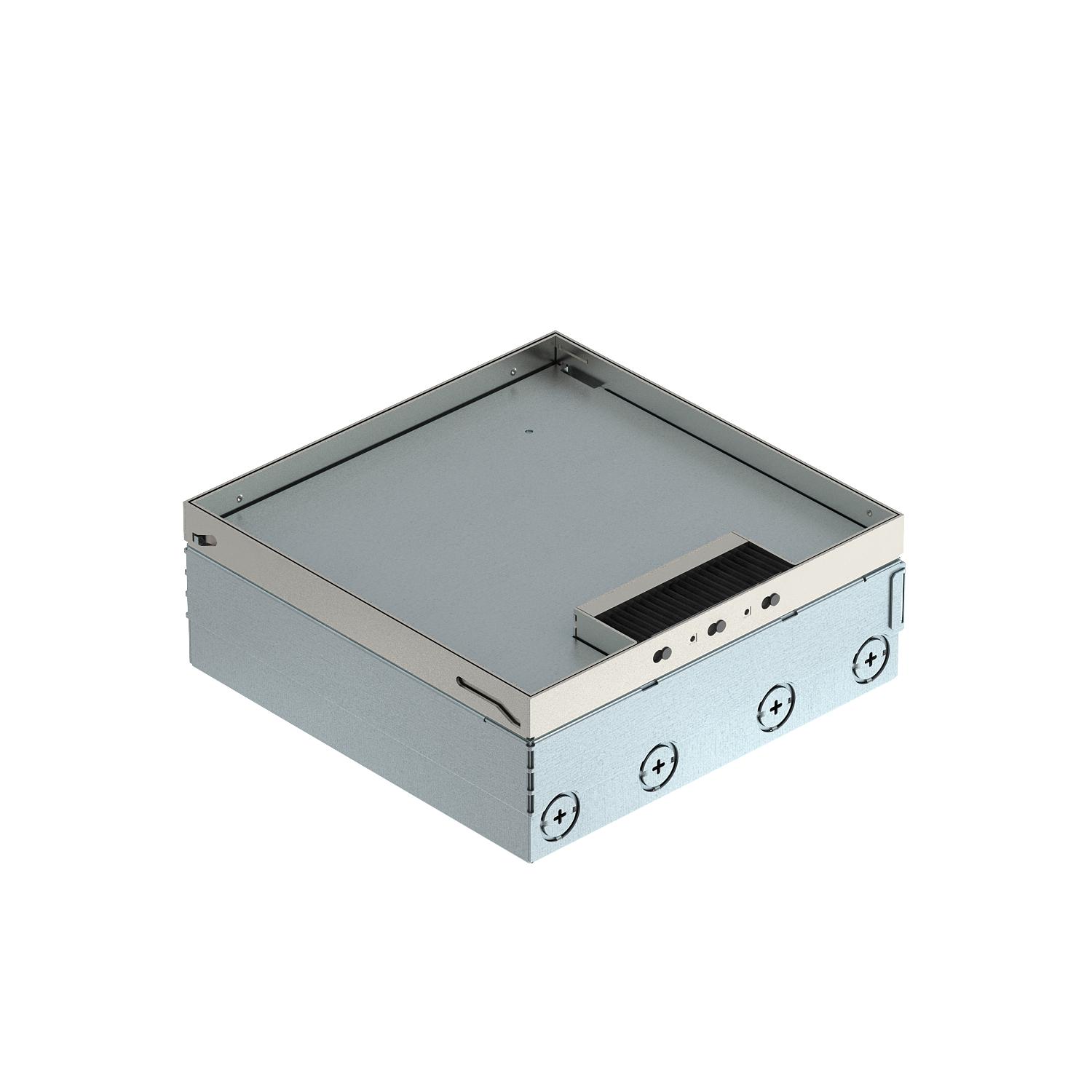

Square installation unit for use in dry-care cavity and screed floors for indoor use.
Installation housing with pre-marked insertion openings for pipes (M25). Cover adjustable to the top edge of the floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height adjustment range is +30 mm.
Flushfloor cable outlet through brush bar.

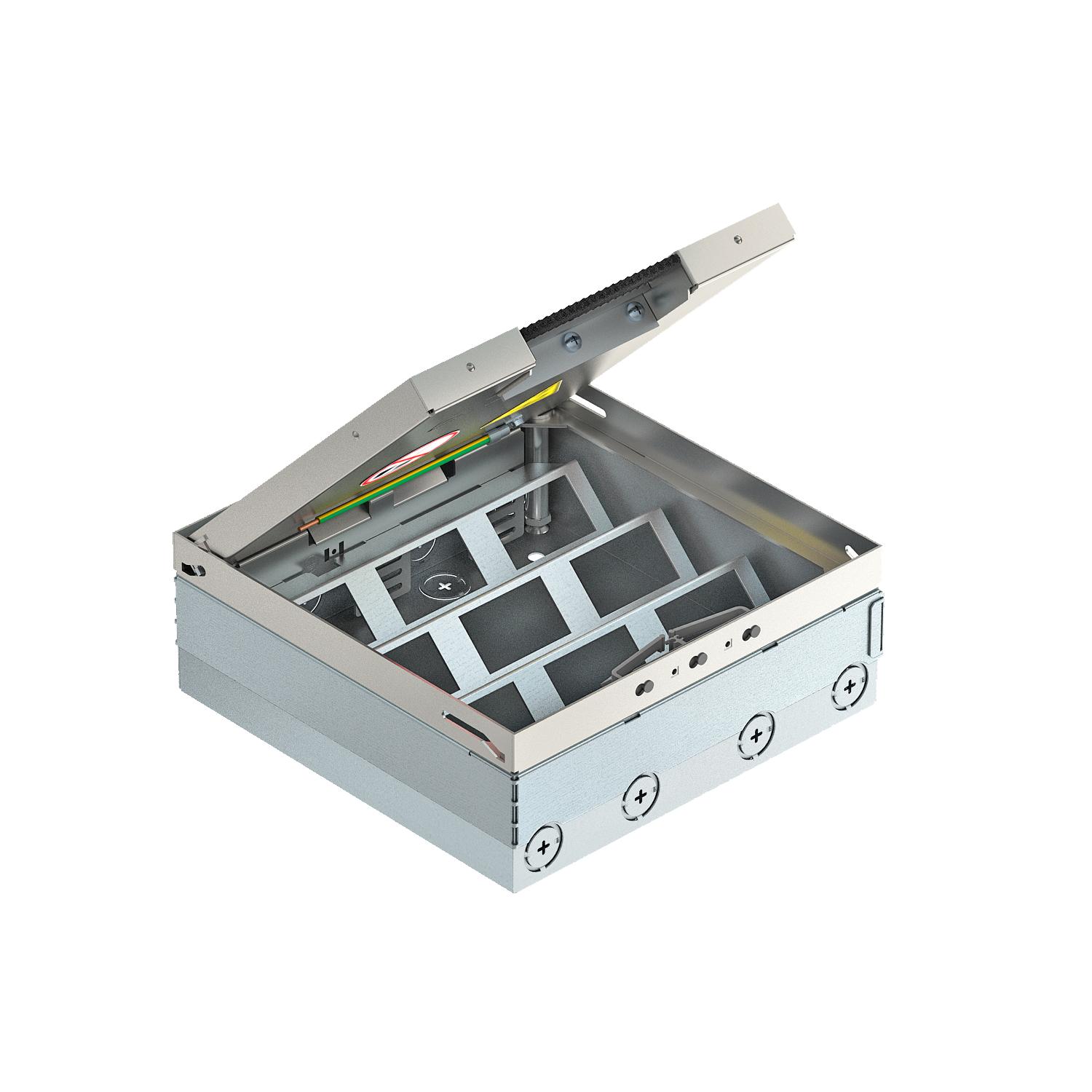

Device support made of galvanised sheet steel for 9x FLF 3/5.
Lid can be covered with floor covering, 15 mm.
- Technical data
-
Technical data

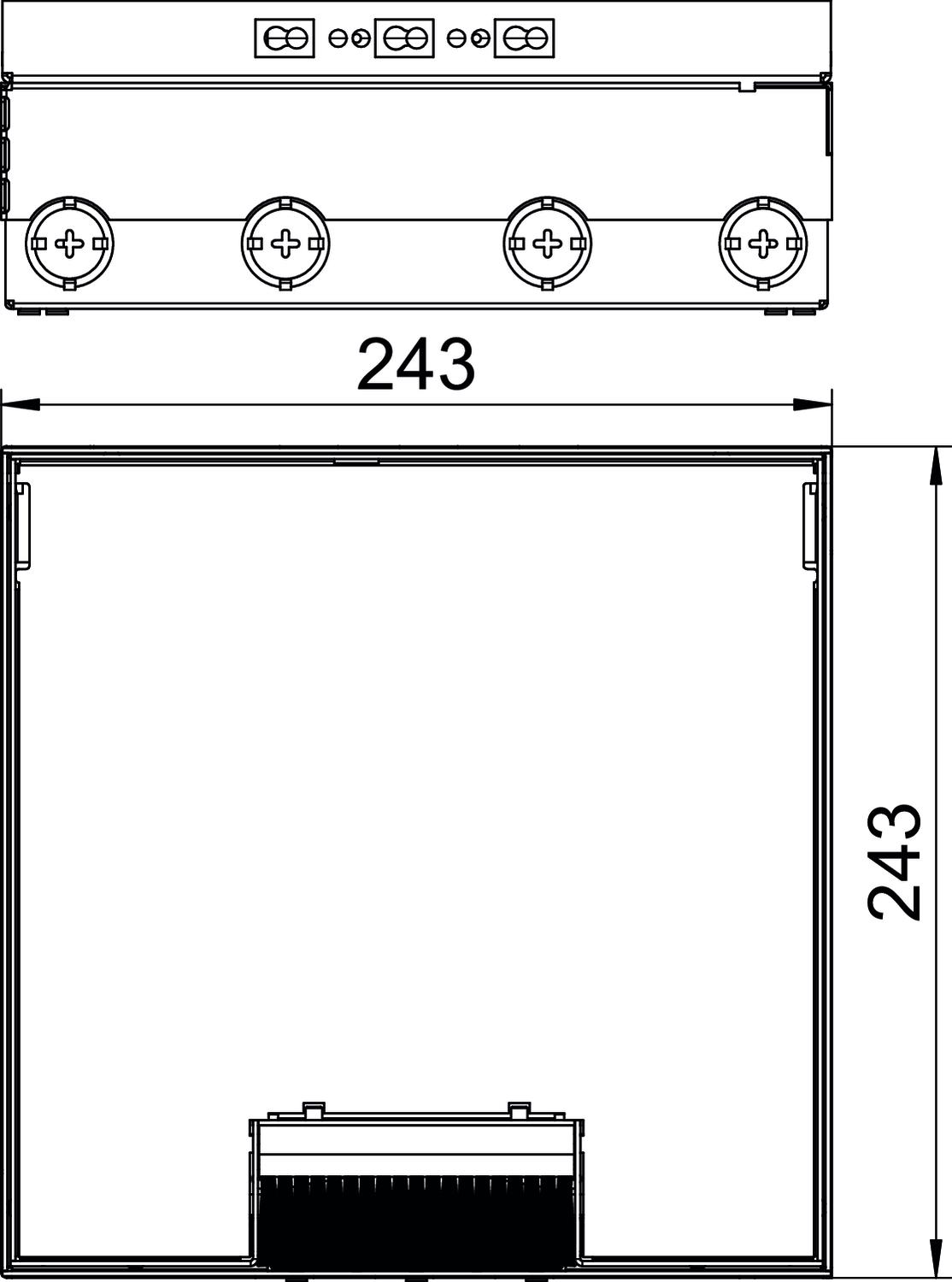

Cable outlet version Brush bar Cover version Floor covering recess Equipment FLF supports Floor covering thickness 15 mm Floor height, max. 125 mm Floor height, min. 95 mm Height-adjustment range, max. 125 mm Height-adjustment range, min. 95 mm Length of external dimensions 243 mm Length of installation dimensions 246 mm Material Stainless steel Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Screed height, max. 110 mm Screed height, min. 95 mm Wide external dimensions 243 mm Wide installation dimensions 246 mm Dimensions
Dimension h 95 mm Length 246 mm Width 246 mm - All types
- Downloads
-
Data sheet UDHOME9 2V U PE / 7427332 , 0.23MB , pdfREACH Declaration of conformity UDHOME9 2V U PE / 7427332 , 0.12MB , pdfRoHS Declaration of conformity UDHOME9 2V U PE / 7427332 , 0.12MB , pdfMounting instructions Mounting instructions, floor box UDHOME 4/9 , 0.08MB , pdfNo invitation to tender text is available for this product.
