Floor plate for industrial pole

Item no. 6290416 | EAN 4012196191499

6290416 / ISS160160BP
250 mm
250 mm
8 mm
White aluminium; RAL 9006
Product description

Product description

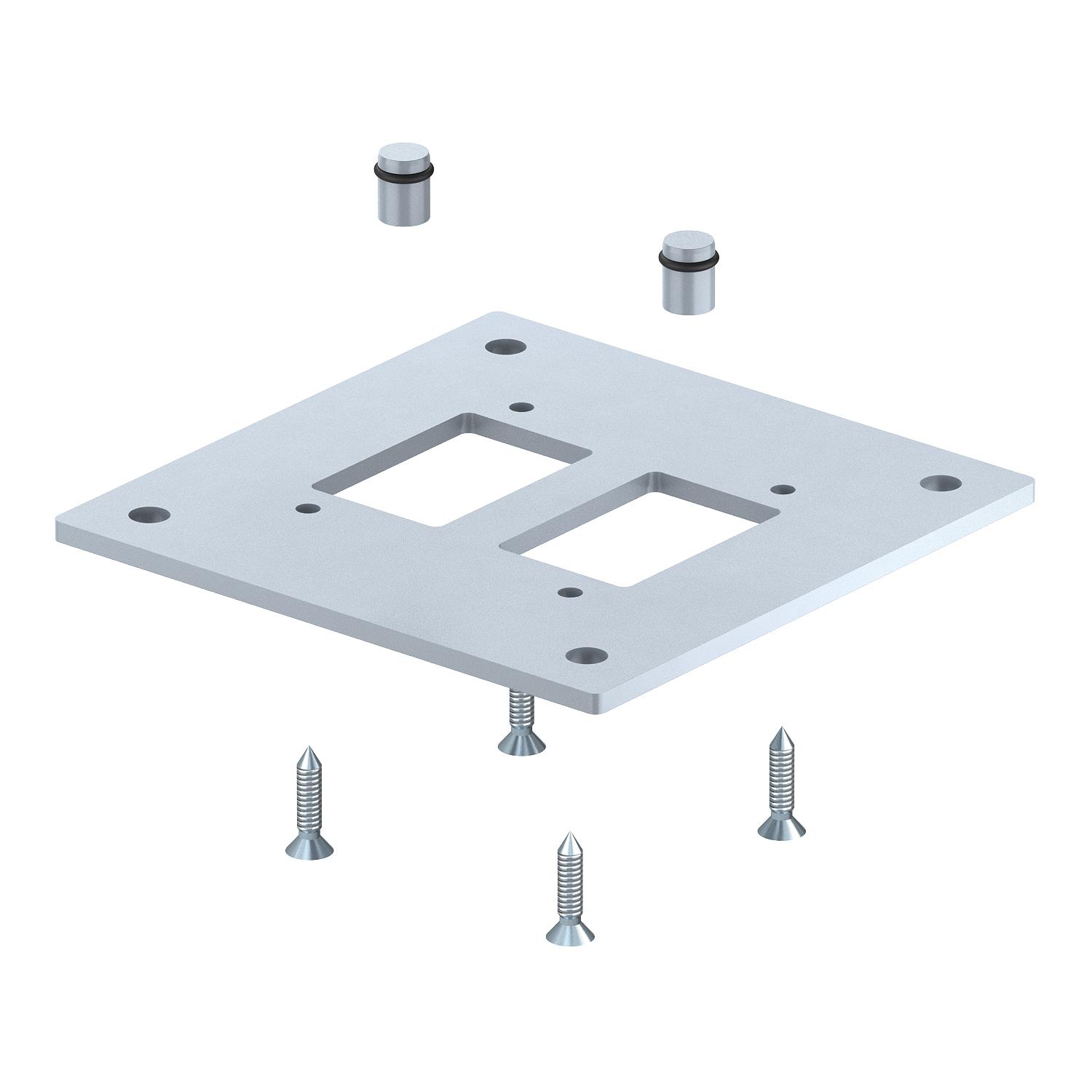

Plate to fasten the ISS industrial pole to the floor. The scope of delivery comprises of four fastening screws to mount the floor plate onto the pole profile and two sealing plugs to make the compressed air channels airtight.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour White aluminium; RAL 9006

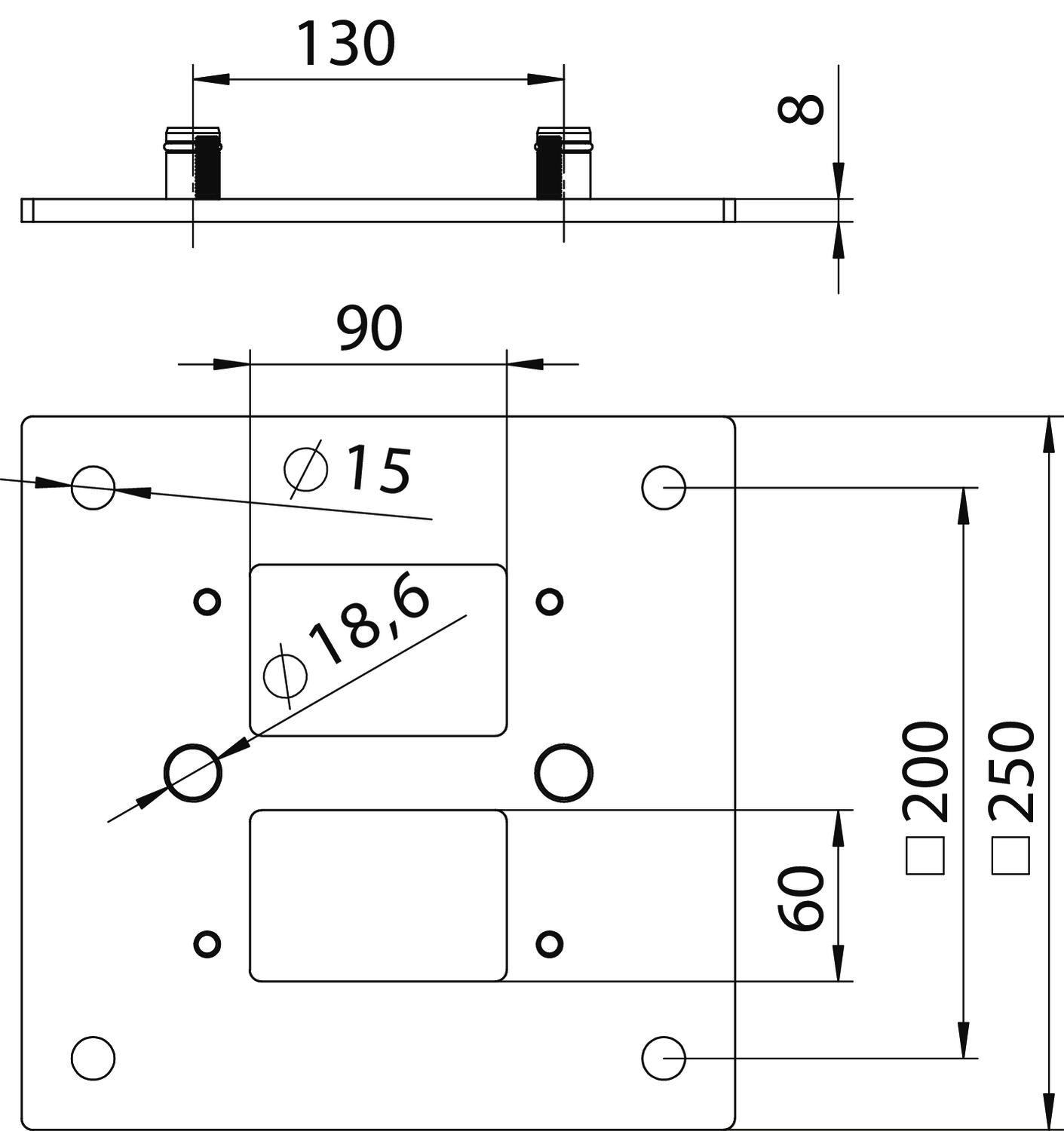

Dimension 250x250x8mm
Halogen-free yes
Height 8 mm
Length 250 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Surface Strip galvanized / plastic coated
Width 250 mm
xxxxx. no
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
ISS160160BP 250 mm 250 mm 8 mm White aluminium; RAL 9006 6290416
1 piece
