Floor plate for ISS110100R 170 | 160 | 3 | Pure white; RAL 9010
morepic-1 morepic-2

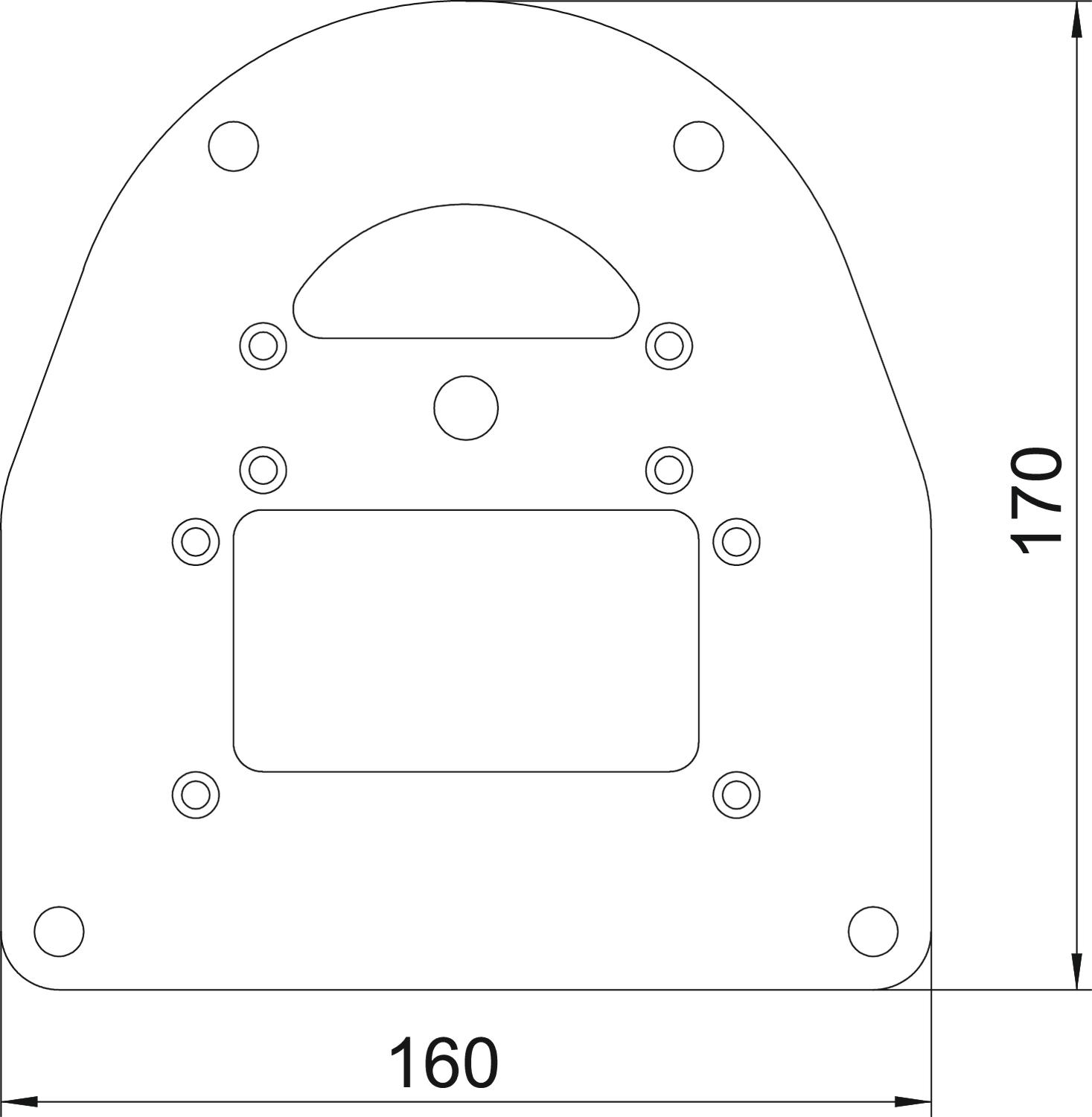

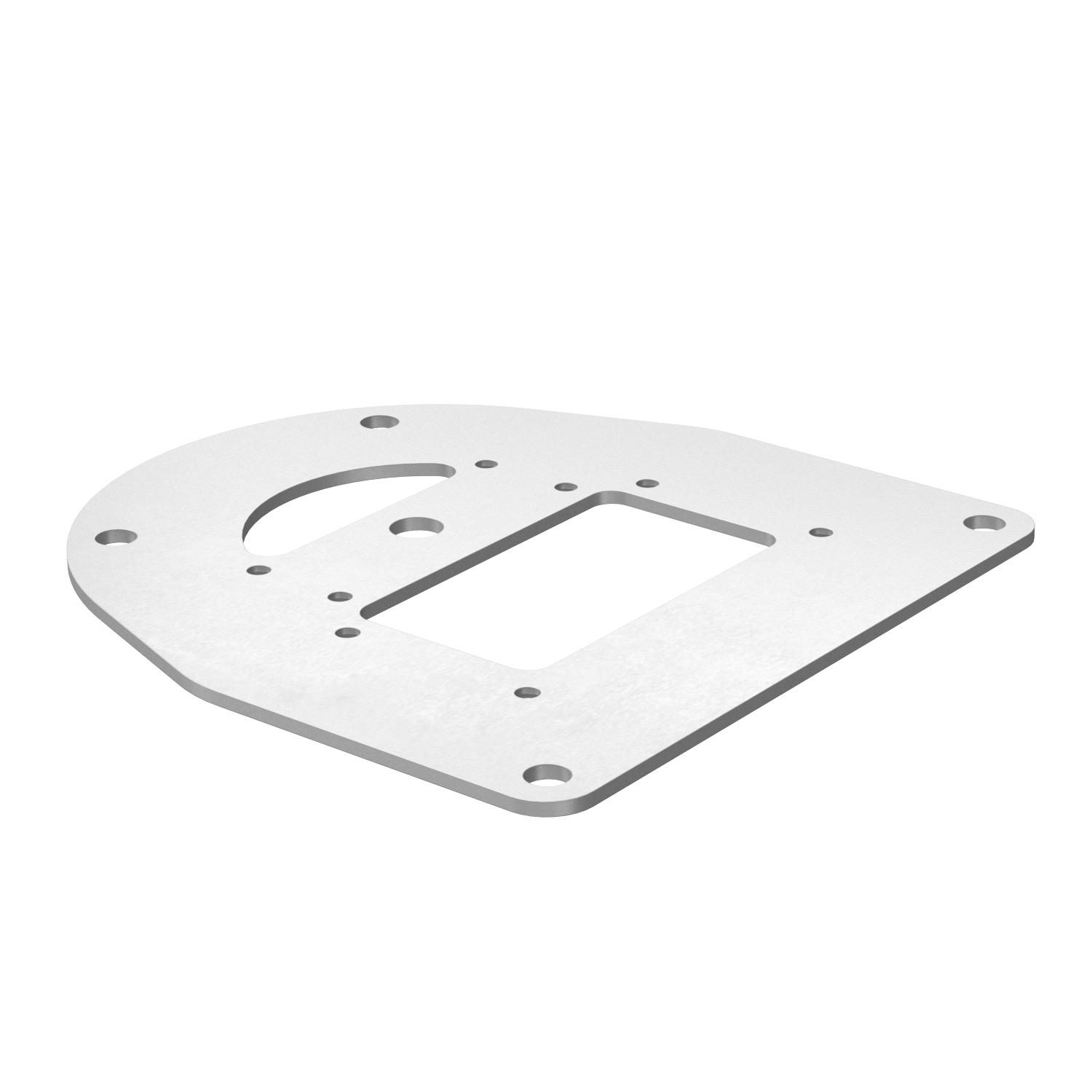

Floor plate for ISS110100R

Item no. 6290330 | EAN 4012195816966

170 mm
160 mm
3 mm
Product description

Product description

Floor plate to fasten the ISS110100R on the floor. The floor plate with visible edge has four fastening holes of Ø 8.5 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 170x160x3
Halogen-free yes
Height 3 mm
Length 170 mm
Material Steel
Surface Strip galvanized / plastic coated
Width 160 mm
xxxxx. no
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
ISSBP110100RW 170 mm 160 mm 3 mm Pure white; RAL 9010 6290330
1 piece
ISSBP110100WA 170 mm 160 mm 3 mm White aluminium; RAL 9006 6290331
1 piece
Downloads

Download

Download

Download
UK Declaration of Conformity ISSBP110100RW / 6290330 , 0.14MB , pdf
