Floor plate for ISS140100R

Item no. 6290336 | EAN 4012195816997

200 mm
160 mm
3 mm
Product description

Product description

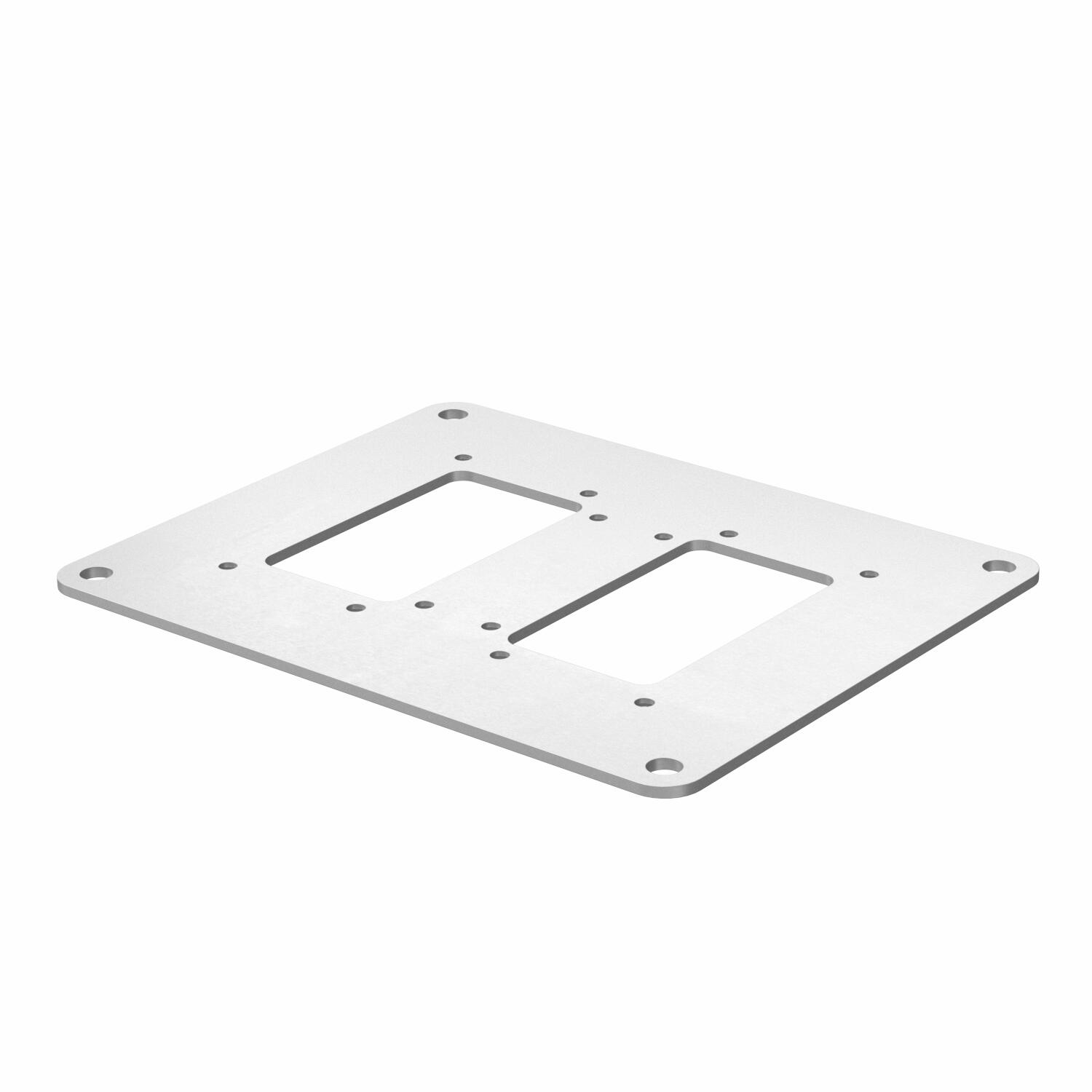

Floor plate to fasten the ISS140100R on the floor. The floor plate with a visible edge has four fastening holes Ø 8.5 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 200x160x3
Halogen-free yes
Material Steel
Surface Strip galvanized / plastic coated
xxxxx. no

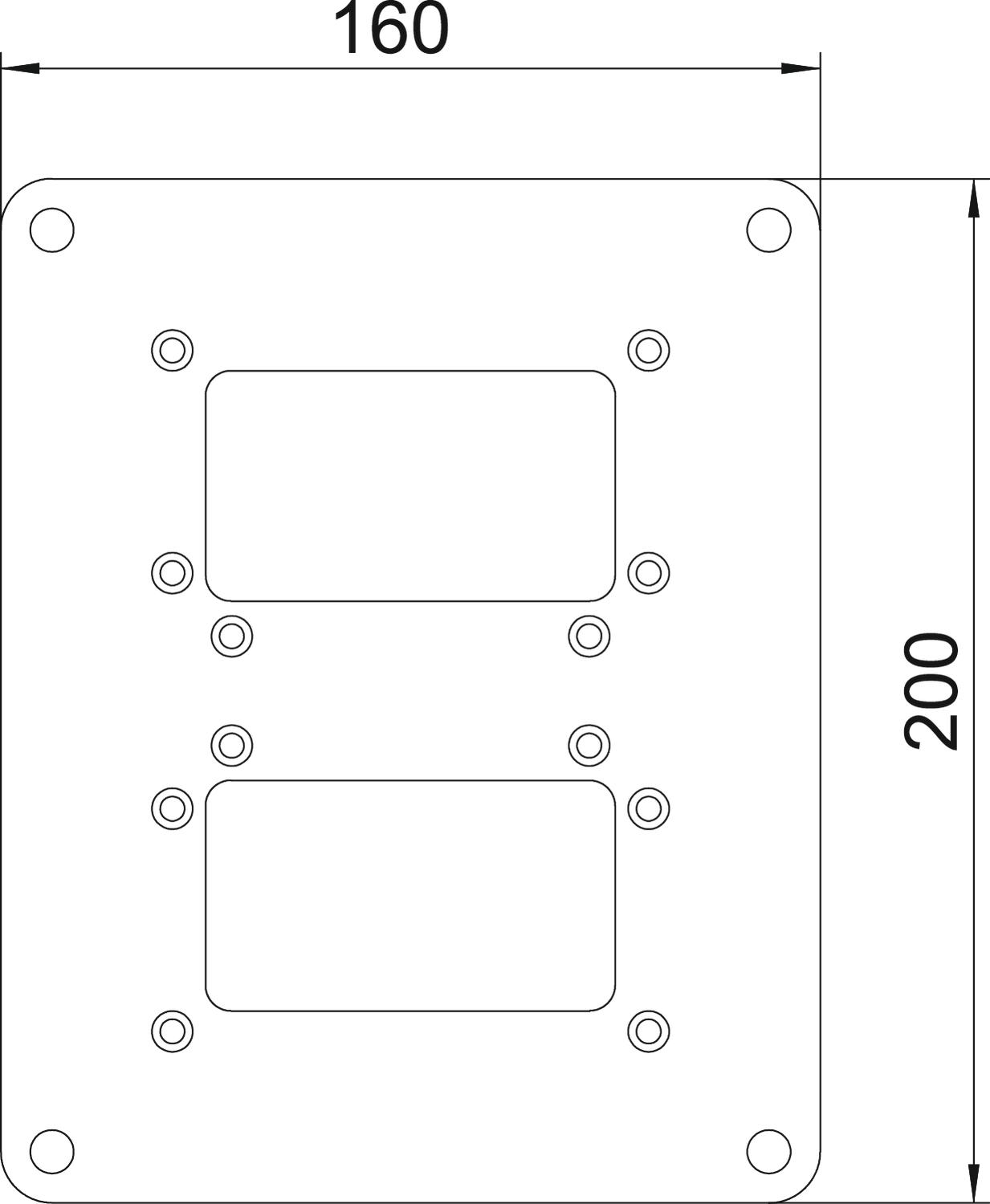

Dimensions

Height 3 mm
Length 200 mm
Width 160 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
ISSBP140100RW 200 mm 160 mm 3 mm Pure white; RAL 9010 6290336
1 piece
ISSBP140100WA 200 mm 160 mm 3 mm White aluminium; RAL 9006 6290337
1 piece
