Floor plate for ISS70110 170 | 130 | 3 | White aluminium; RAL 9006
morepic-1 morepic-2

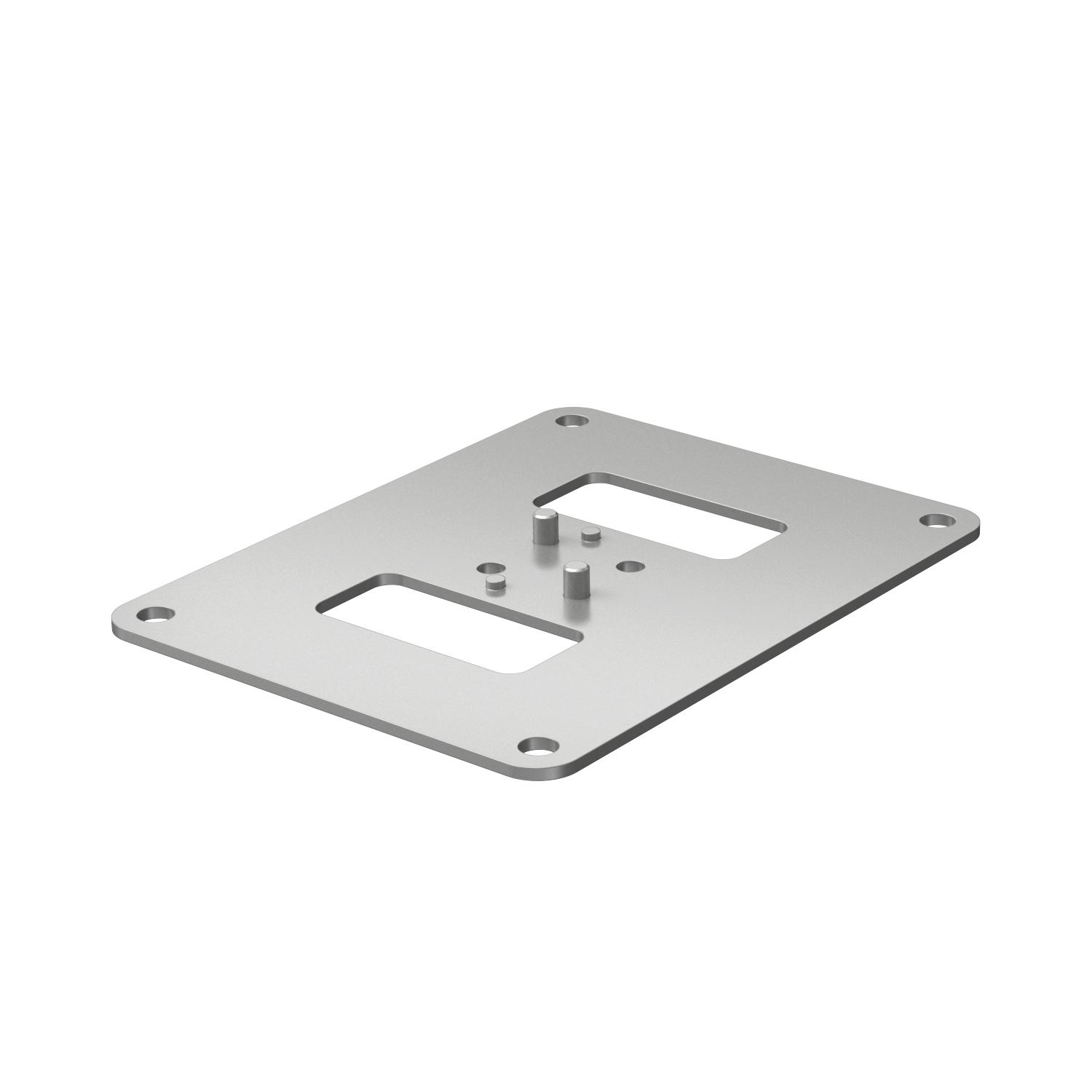

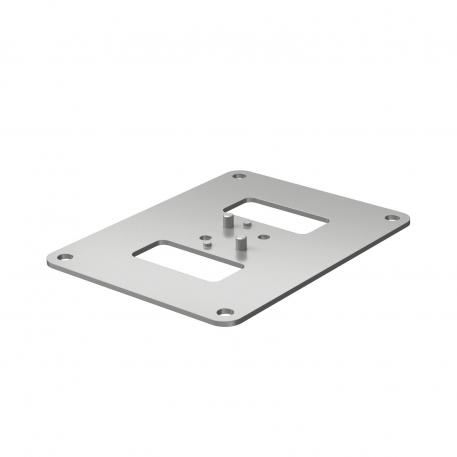

Floor plate for ISS70110

Item no. 6290104 | EAN 4012195161585

170 mm
130 mm
3 mm
Product description

Product description

Floor plate with 30 mm visible edge and four fastening holes Ø 8.5 mm. The floor plate is suitable for installation on the service poles of type ISS70110.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour White aluminium; RAL 9006

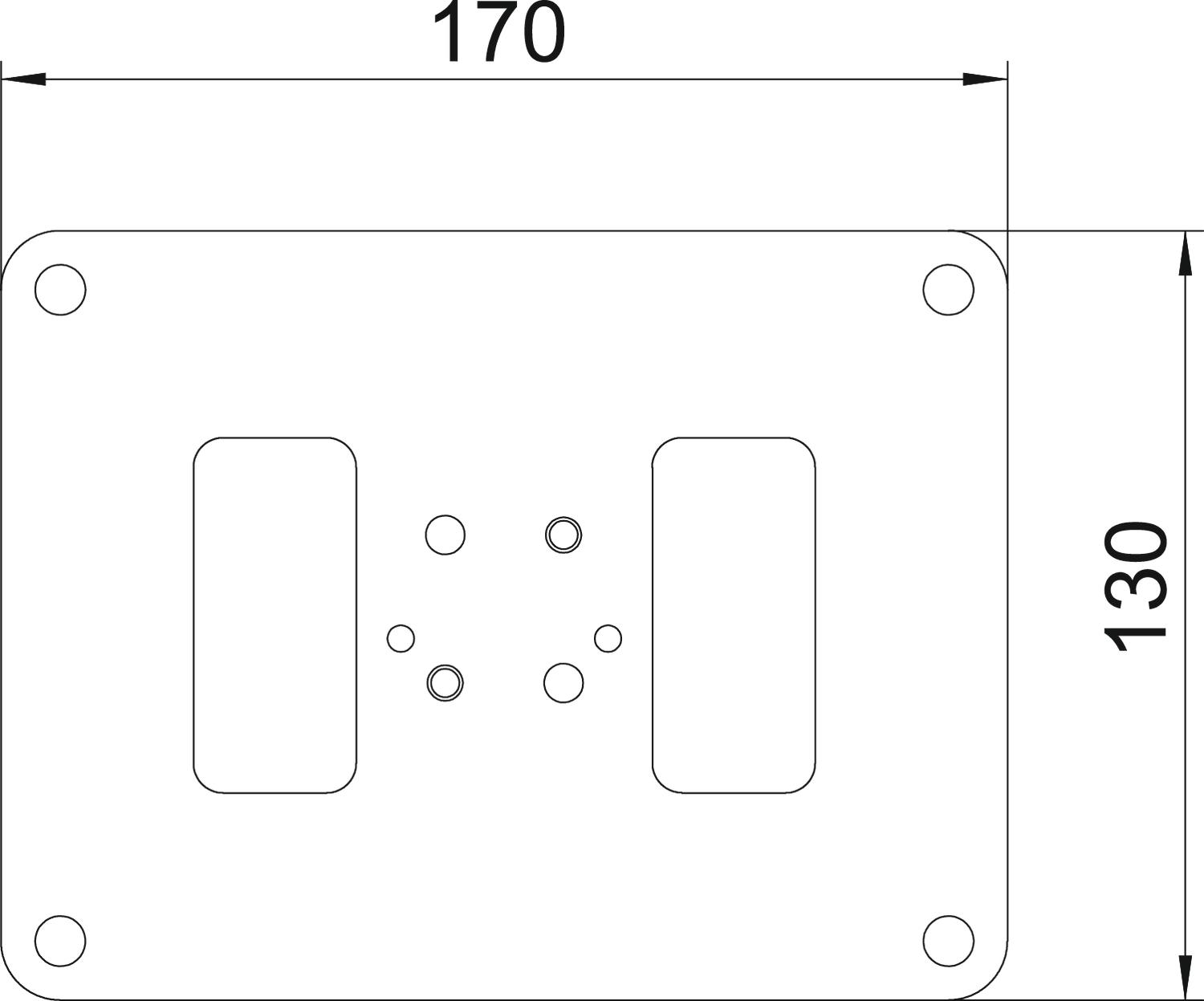

Dimension 170x130x3
Halogen-free yes
Height 3 mm
Length 170 mm
Material Steel
Surface Strip galvanized / plastic coated
Width 130 mm
xxxxx. no
All types

All types

Types Length Width Height Colour Item no. Quantity SSU

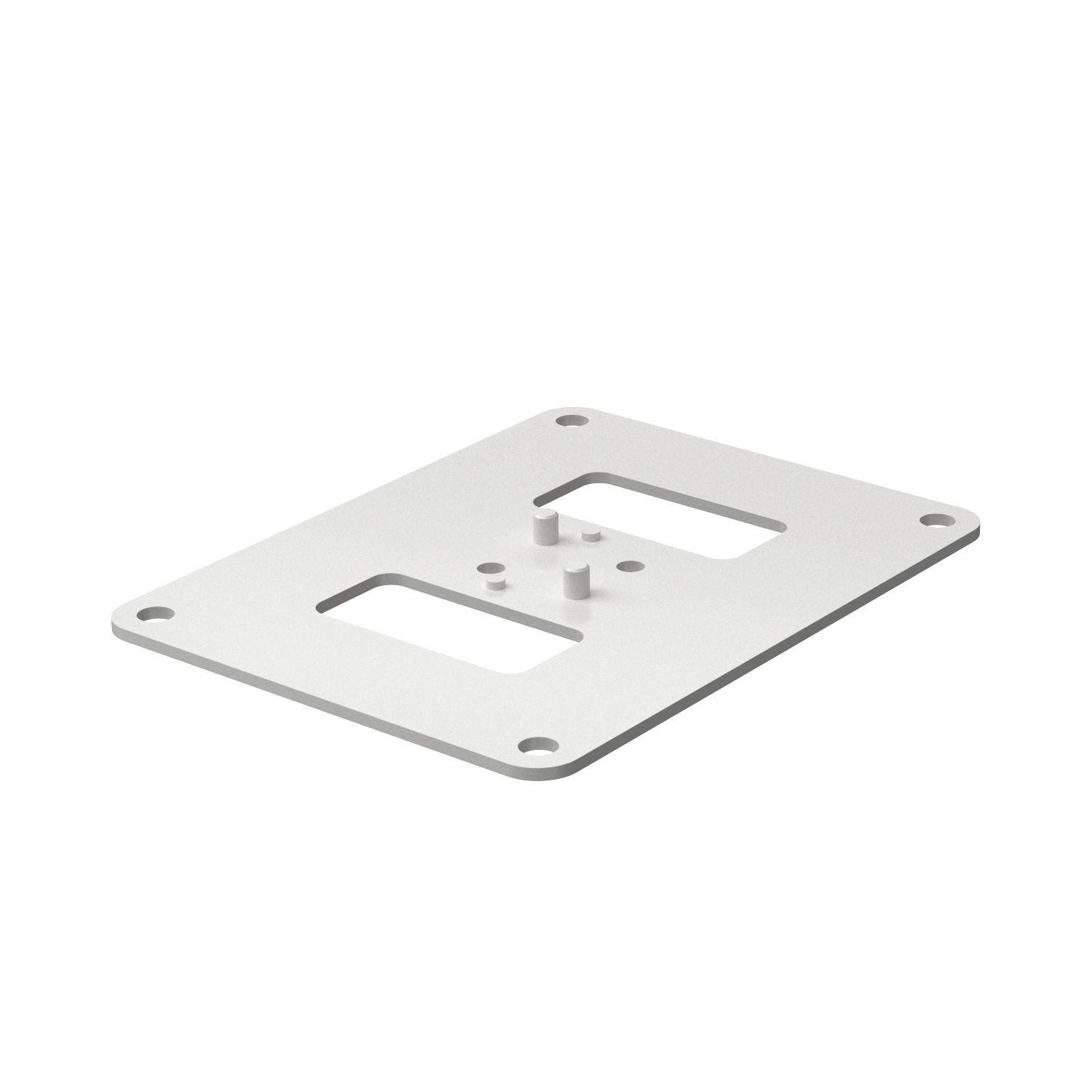

ISSBP70110RW 170 mm 130 mm 3 mm Pure white; RAL 9010 6290100
1 piece
ISSBP70110WA 170 mm 130 mm 3 mm White aluminium; RAL 9006 6290104
1 piece
Downloads

Download

Download

Declaration of conformity ISSBP70110WA / 6290104 , 0.13MB , pdf
Download
UK Declaration of Conformity ISSBP70110WA / 6290104 , 0.14MB , pdf
Download

No invitation to tender text is available for this product.
