Fold fastening 51 | 30 | 16 | 121

morepic-1

morepic-2

Fold fastening

Item no. 5408992 | EAN 4012195613428

Item no. / Types	5408992 / 101 F-16

Dimension B	51 mm

Dimension d min.	30 mm

Dimension d Ø	16 mm

Dimension L	121 mm

Product description

Product description

• To fasten a GFK rod on constructions of 4 to 20 mm

• Dimension D Ø: 16 mm

Technical data

Technical data

Clamping range, max.	20 mm
Clamping range, min.	4 mm
Dimension	180x60x60
Dimension B	51 mm

Dimension d min.	30 mm
Dimension d Ø	16 mm
Dimension L	121 mm
Material	Stainless steel

All types

All types

Types	Dimension B	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU
101 F-16	51 mm	30 mm	16 mm	121 mm	5408992	piece	10 piece

Downloads

Data sheet 101 F-16 / 5408992 , 0.19MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

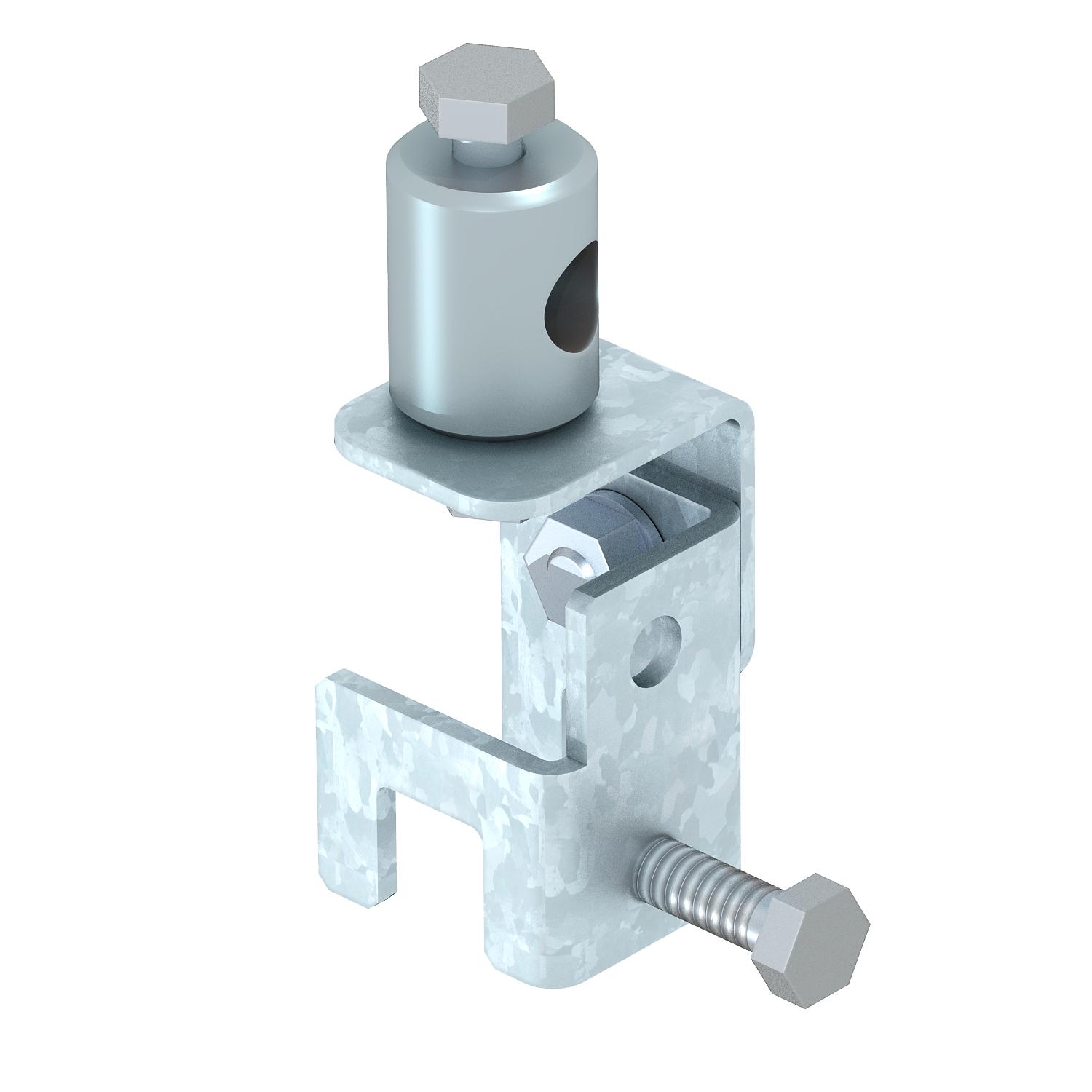

Product graphic 101 F-16 / 5408992, 72.17 kB, jpg

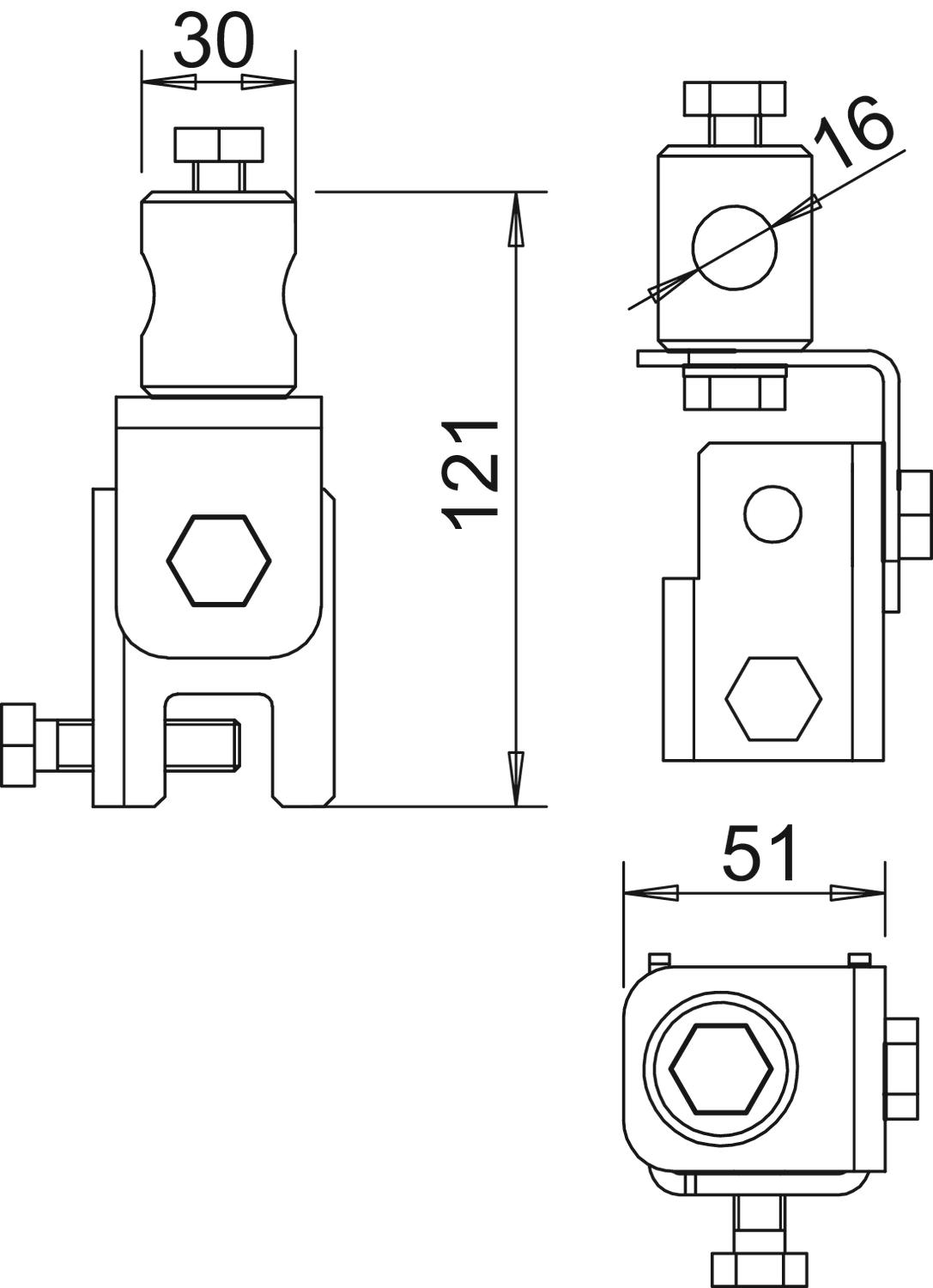

Scale drawing 101 F-16 / 5408992, 73.08 kB, jpg
