Folding clamp Rd 8-10 up to 10 mm plate thickness A2 Rd 8-10 | 10 |
morepic-1 morepic-2 video-1

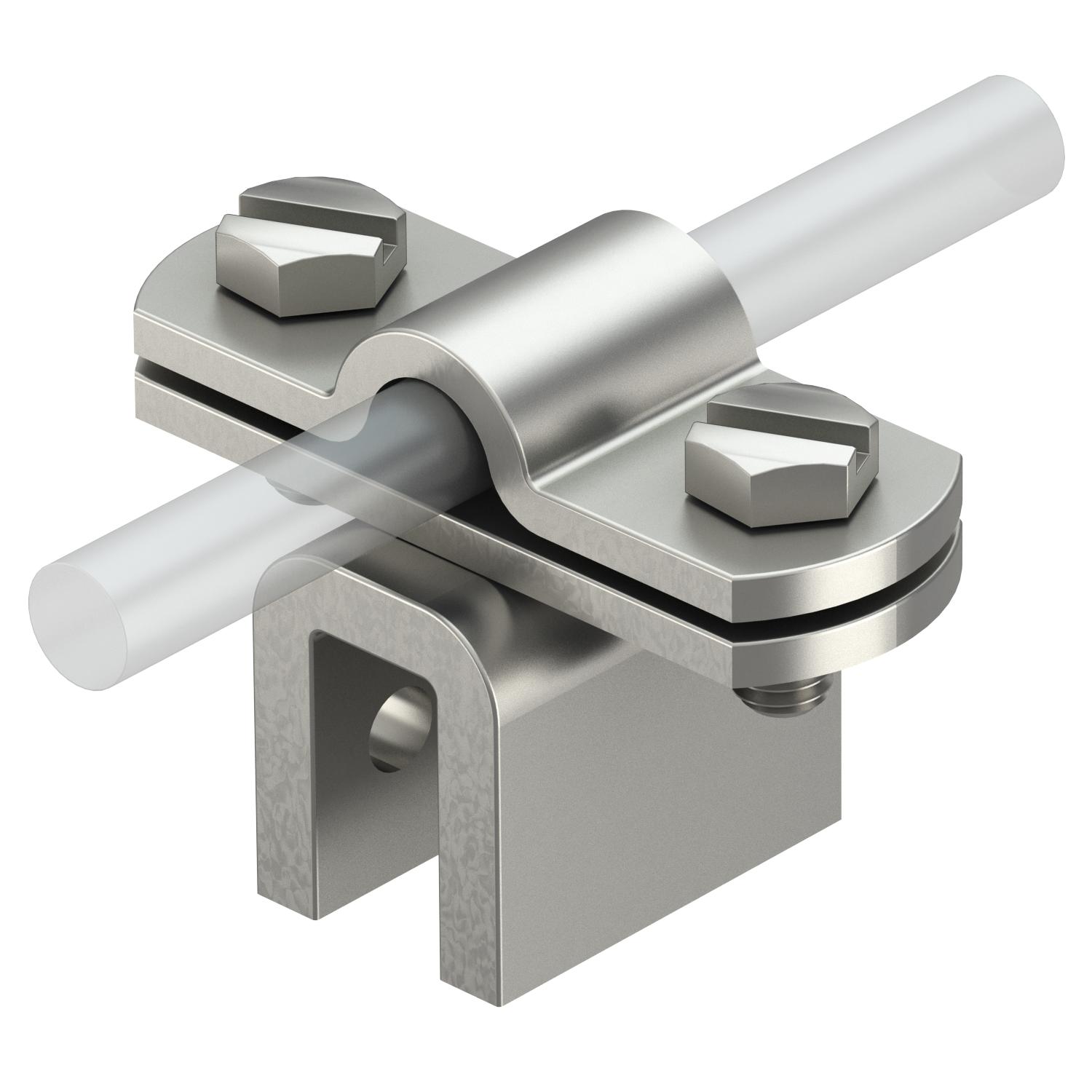

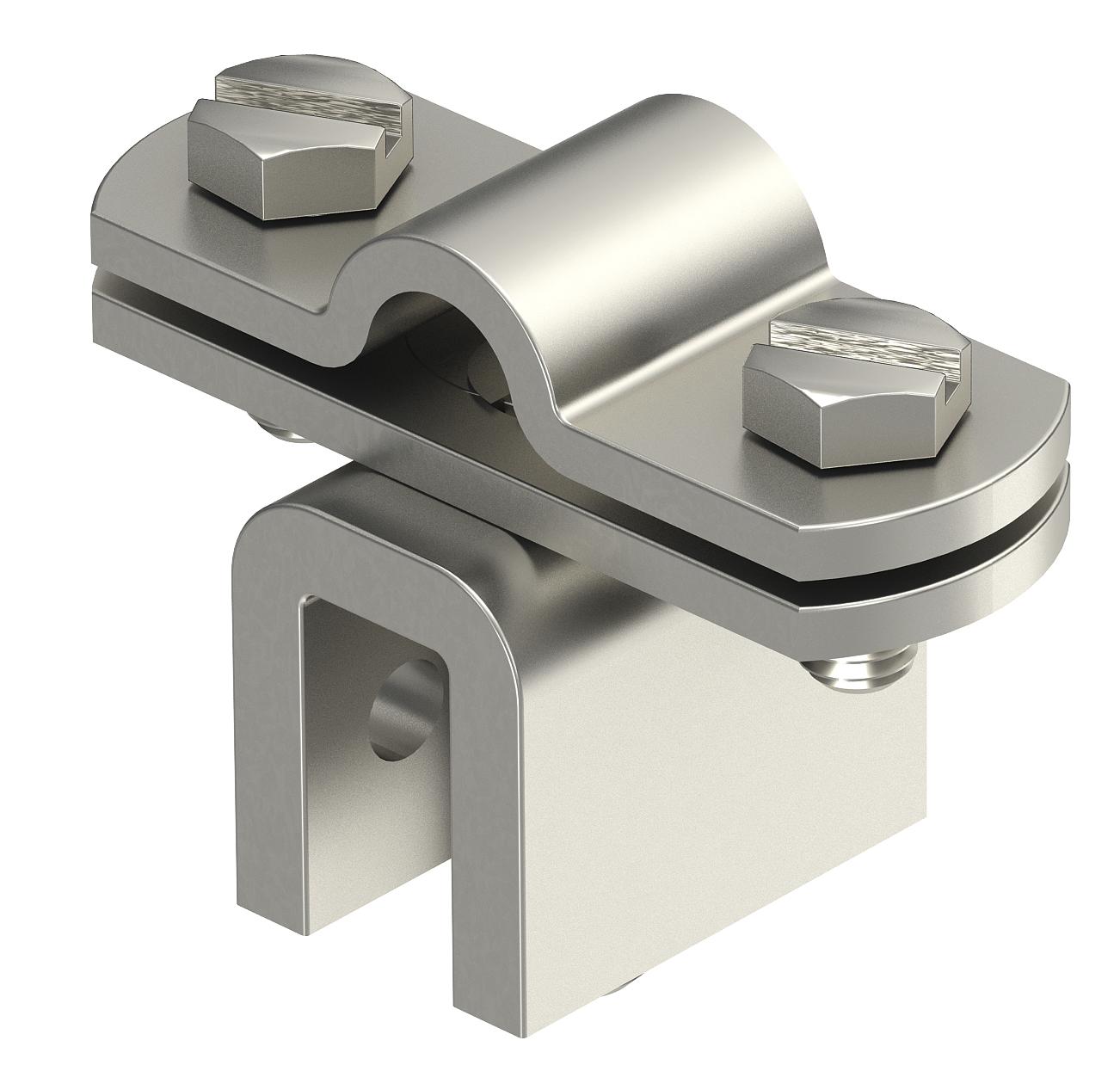

Folding clamp Rd 8-10 up to 10 mm plate thickness A2

Item no. 5317208 | EAN 4012195893158

5317208 / 270 8-10 VA
Rd 8-10 mm
10 mm
Product description
Product description
• Metal thickness to 10 mm

• For conductor routing transverse and in parallel to the plate

• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 10 mm
Dimension 8/10mm
Fit Rd 8-10 mm
Lightning current carrying capacity N/50 kA
Material Stainless steel
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
270 8-10 VA Rd 8-10 mm 10 mm 5317208
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 270 8-10 VA / 5317208 , 0.06MB , pdf
Download
REACH Declaration of conformity 270 8-10 VA / 5317208 , 0.12MB , pdf
Download
RoHS Declaration of conformity 270 8-10 VA / 5317208 , 0.12MB , pdf
Download

270 8-10 VA / 5317208
