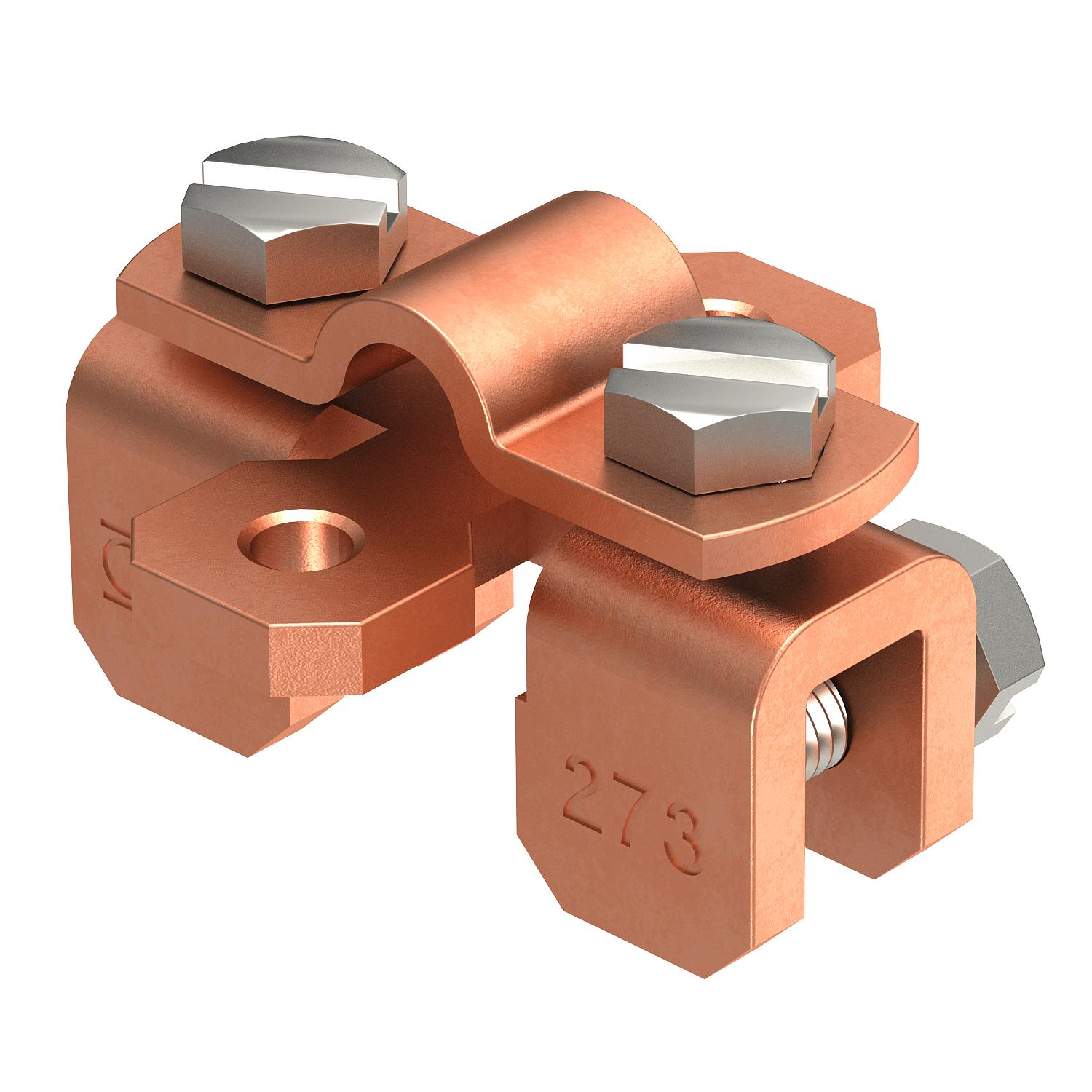

Folding clamp up to 10 mm plate thickness Cu
Item no. 5317274 | EAN 4012195420736
- Product description
-
Product description• Plate thickness to 10 mm

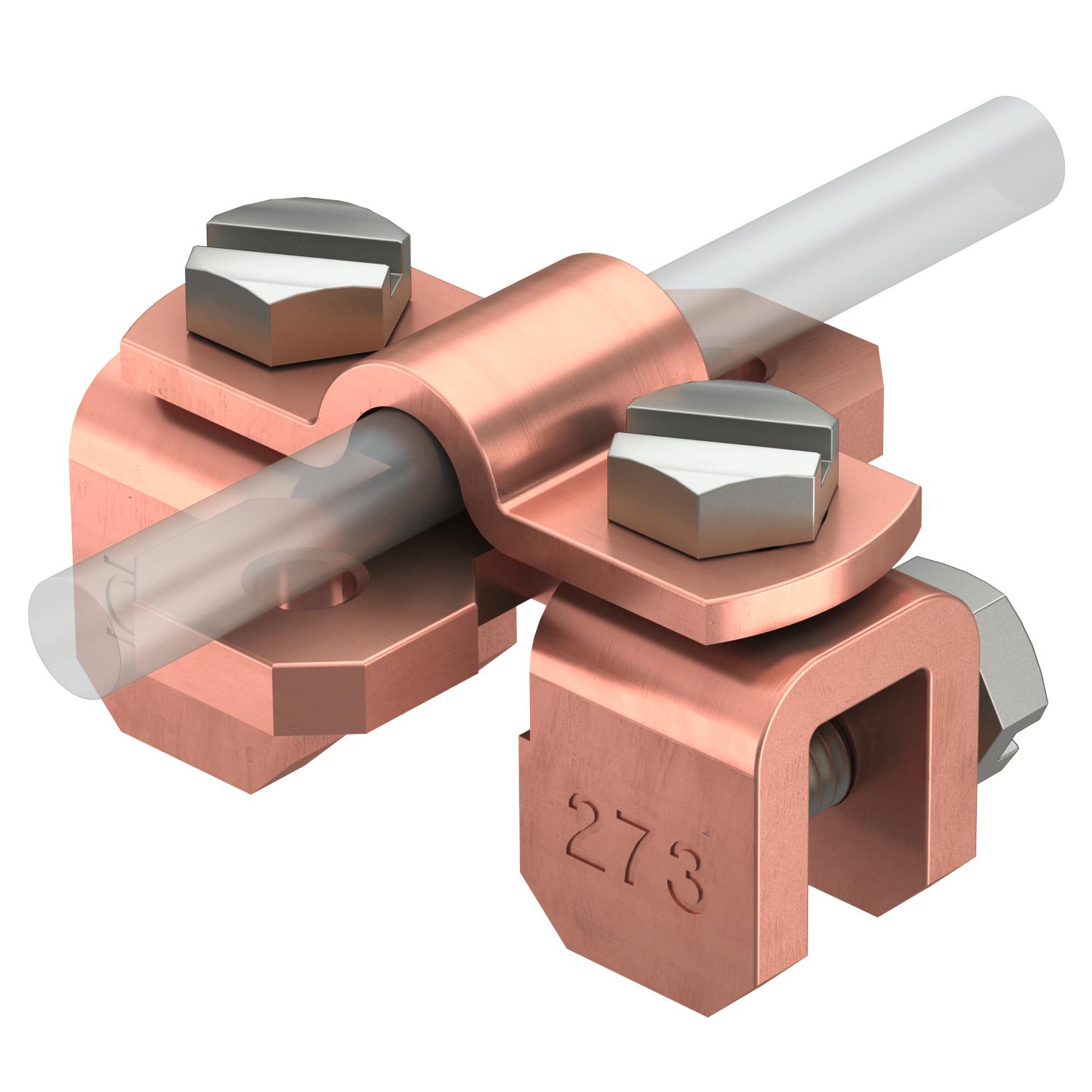

• Conductor routing transverse and longitudinal to plate with 2 hexagonal bolts M8 x 10 and 2 hexagonal bolts M8 x 16 (F)
• 273 Cu: with hexagonal bolts, stainless steel (VA)
-
- Technical data
-
Technical data
Clamping range, max. 10 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Copper Type of connector Folding clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 273 CU / 5317274 , 0.19MB , pdfEU declaration of conformity 273 CU / 5317274 , 0.06MB , pdf
