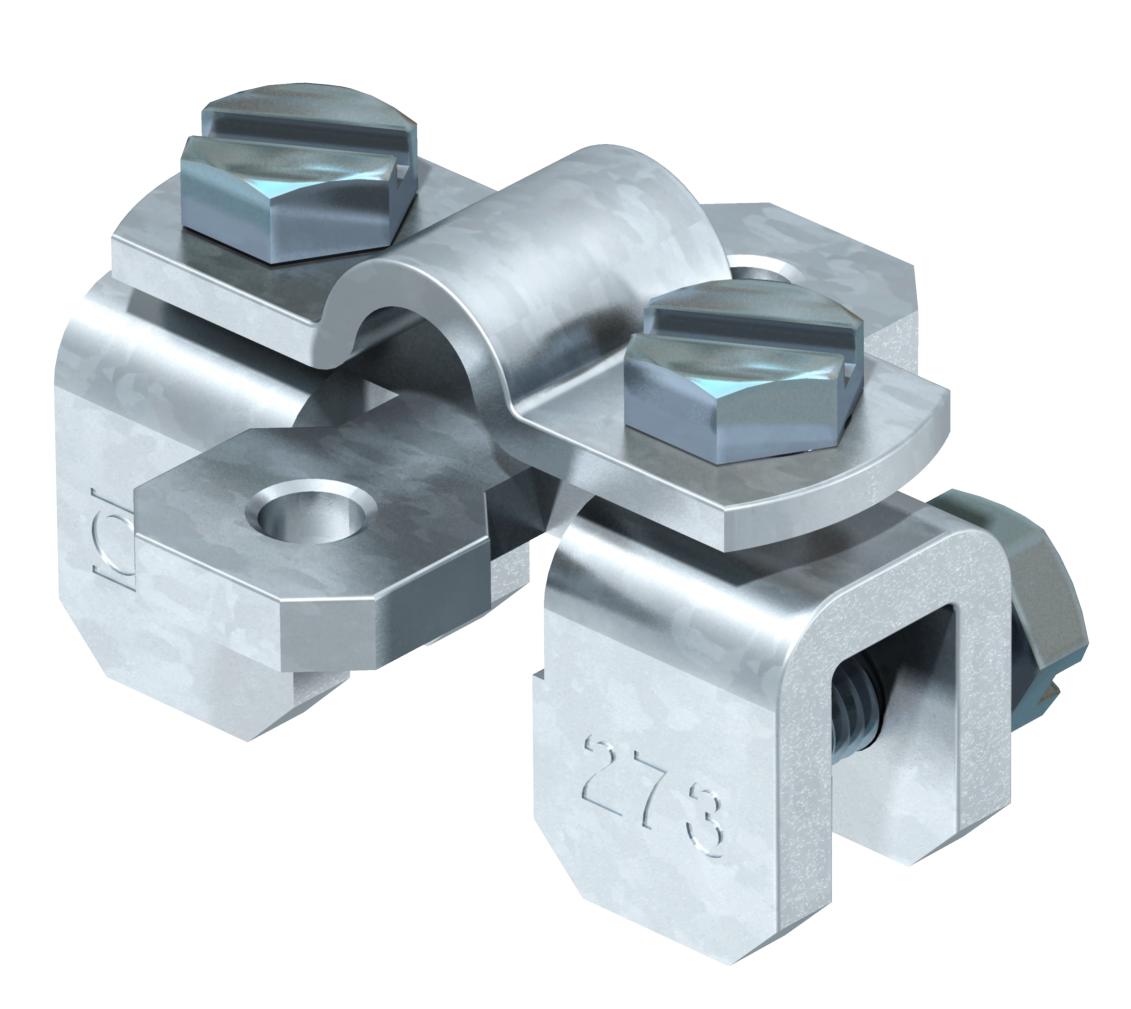

Folding clamp up to 10 mm plate thickness FT

Item no. 5317223 | EAN 4012195420613

5317223 / 273 8-10
Rd 8-10 mm
10 mm
Product description

Product description

• Plate thickness to 10 mm

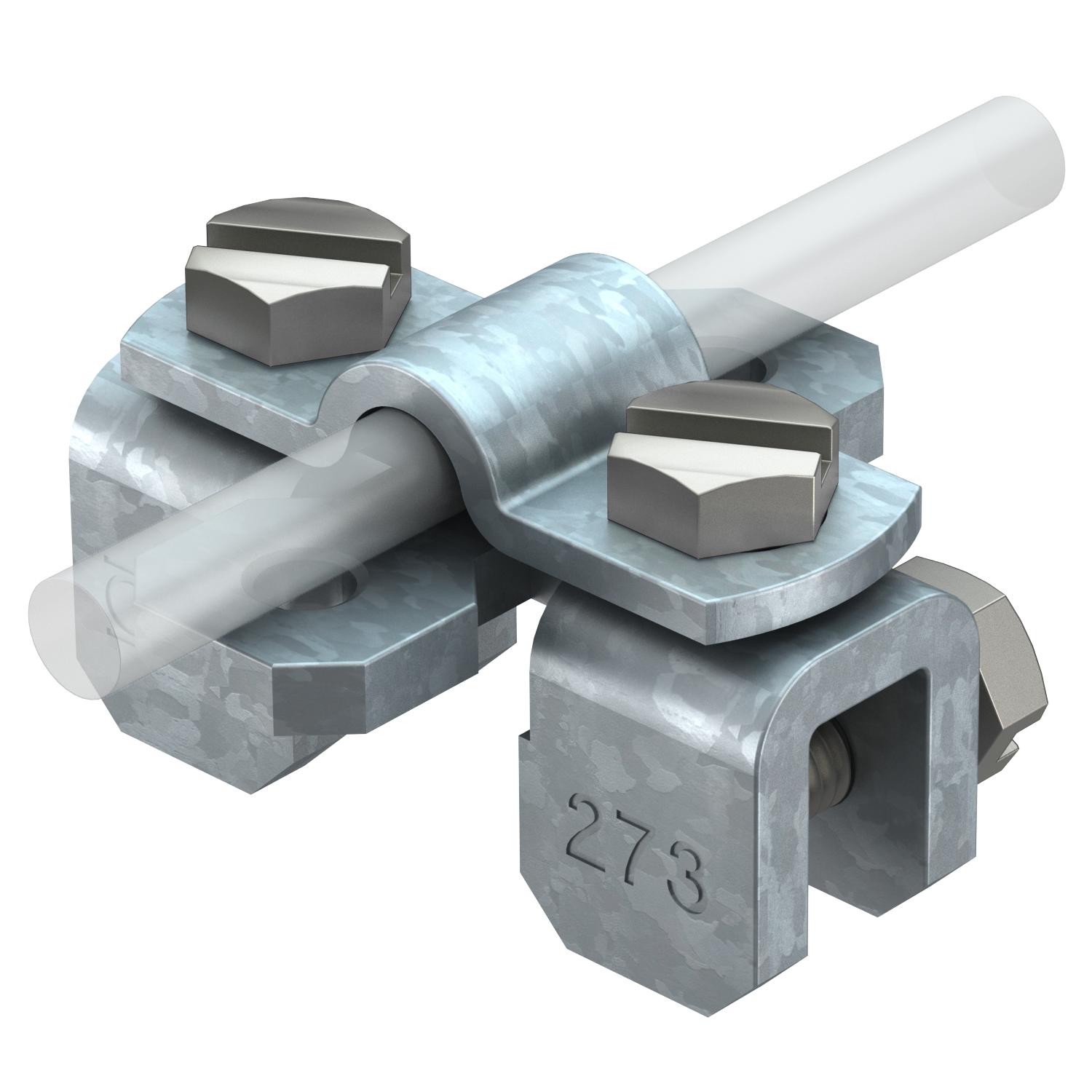

• Conductor routing transverse and longitudinal to plate with 2 hexagonal bolts M8 x 10 and 2 hexagonal bolts M8 x 16 (F)
• 273 Cu: with hexagonal bolts, stainless steel (VA)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 10 mm
Dimension 8/10mm
Fit Rd 8-10 mm
Lightning current carrying capacity N/50 kA
Material Steel
Surface Hot-dip galvanised
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
273 8-10 Rd 8-10 mm 10 mm 5317223
50 piece
