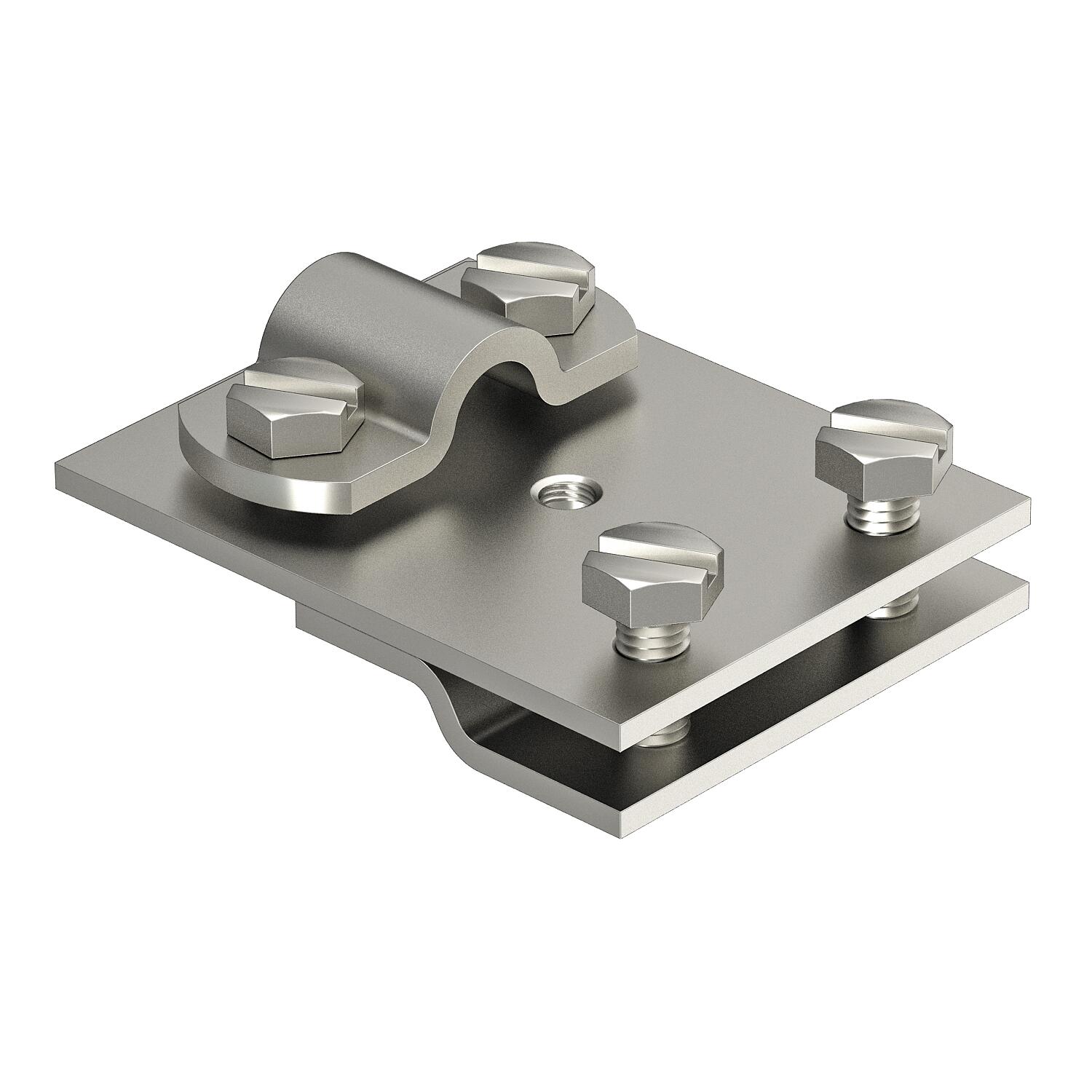

Folding clamp up to 5 mm plate thickness A2

Item no. 5317481 | EAN 4012195850861

5317481 / 271 8-10 VA
Rd 8-10 mm
5 mm
Product description

Product description

• Plate thickness to 5 mm

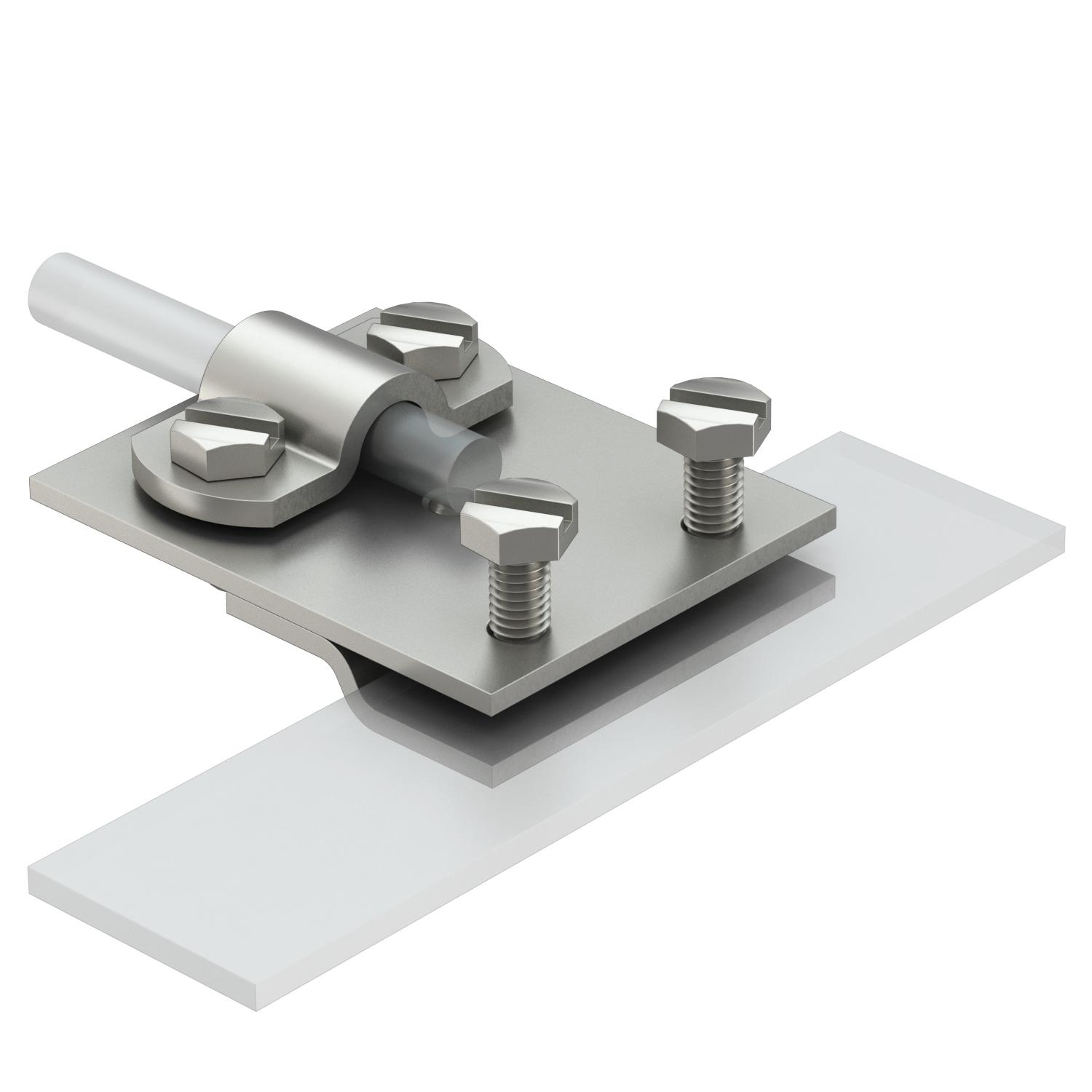

• For conductor routing transverse and longitudinal to plate
• With 4 hexagonal bolts M6 x 12
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• 271 Cu: with hexagonal bolts stainless steel (VA)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 5 mm
Dimension 8/10mm
Fit Rd 8-10 mm
Lightning current carrying capacity N/50 kA
Material Stainless steel
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
271 8-10 VA Rd 8-10 mm 5 mm 5317481
10 piece
