- Product description
-

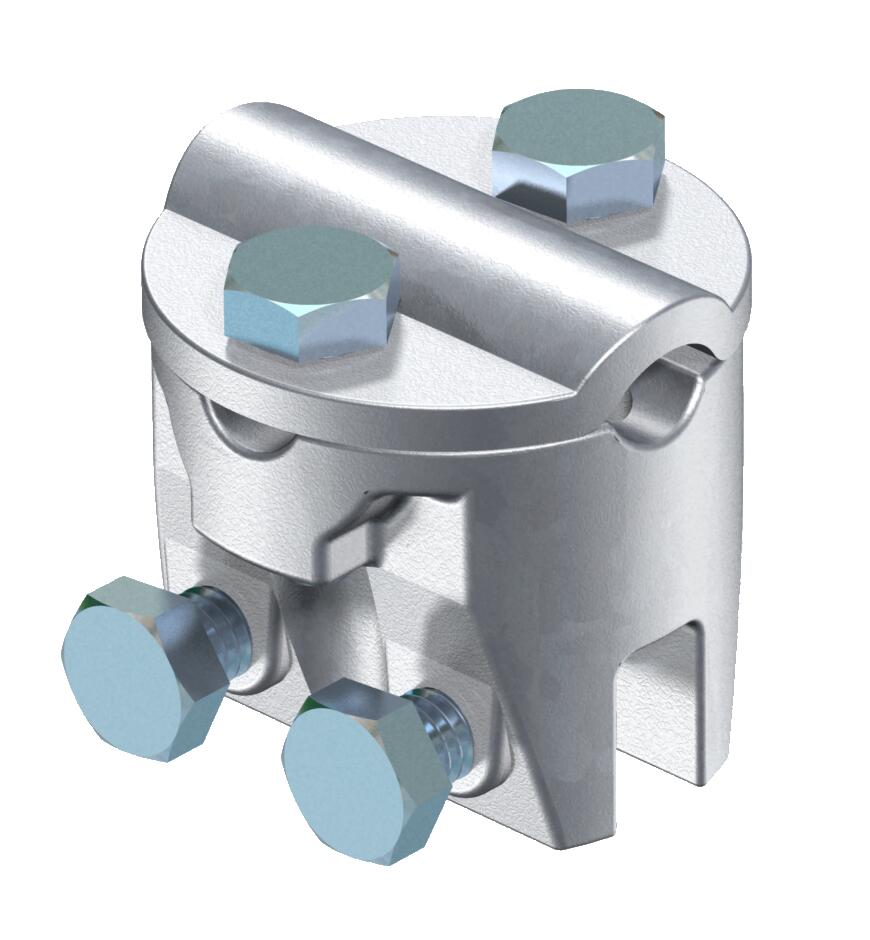

Product description• Plate thickness to 7 mm

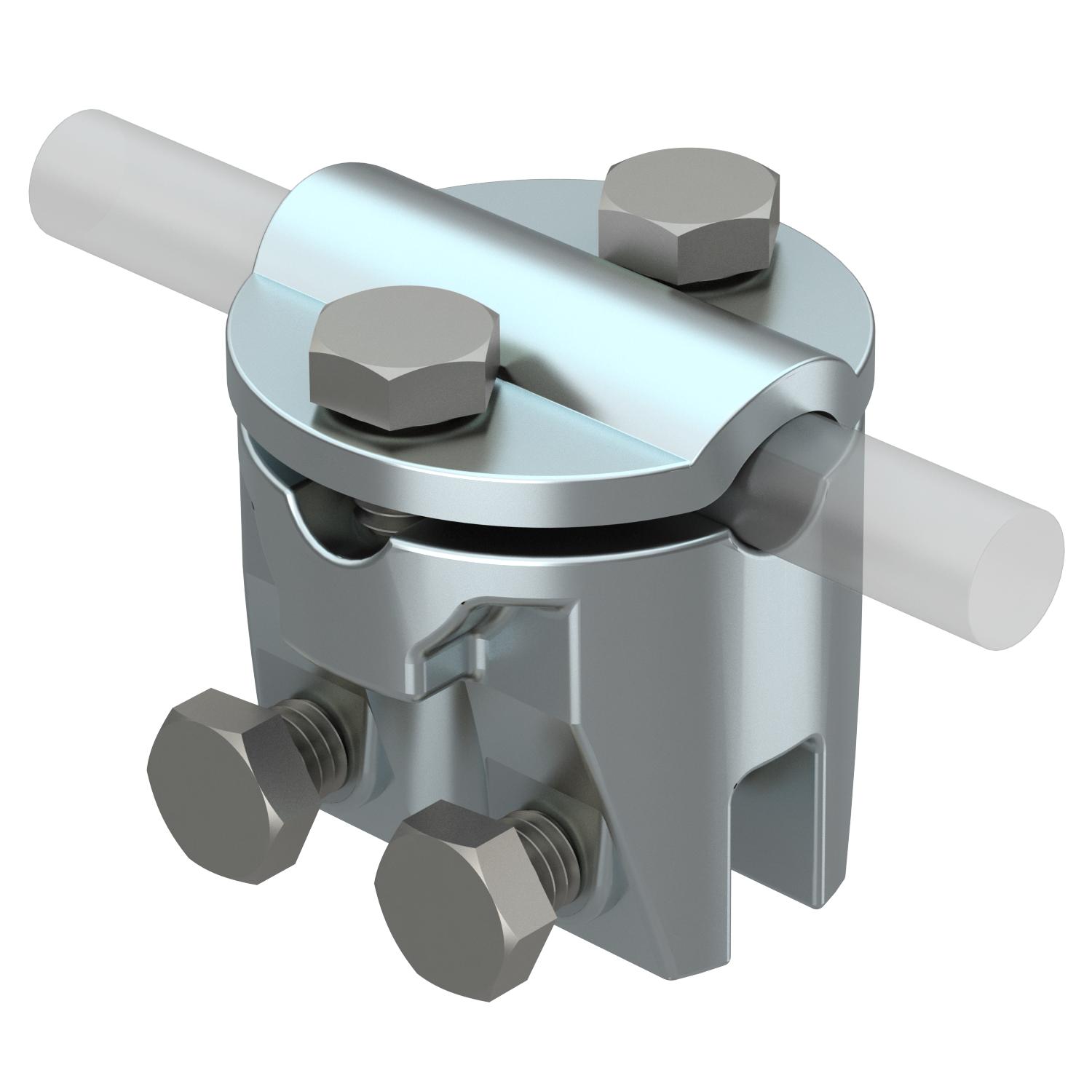

• For cable routing across and parallel to the plate with 4 hexagonal bolts M6 x 16
• Meets the requirements of VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data

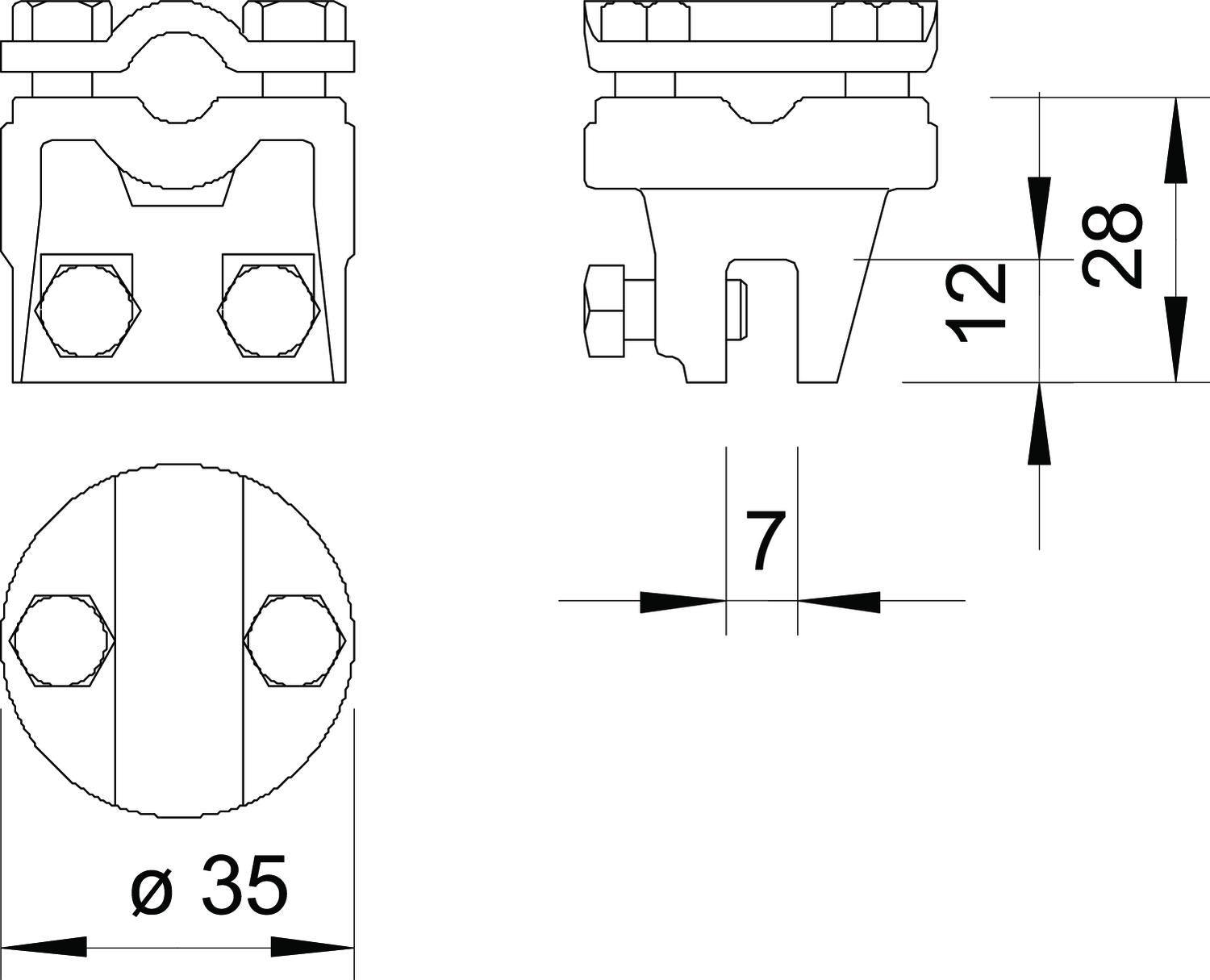

Clamping range, max. 7 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Die-cast zinc Surface Electrogalvanized Type of connector Folding clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 269 8-10 / 5317010 , 0.18MB , pdfEU declaration of conformity 269 8-10 / 5317010 , 0.06MB , pdfREACH Declaration of conformity 269 8-10 / 5317010 , 0.27MB , pdfRoHS Declaration of conformity 269 8-10 / 5317010 , 0.12MB , pdf
