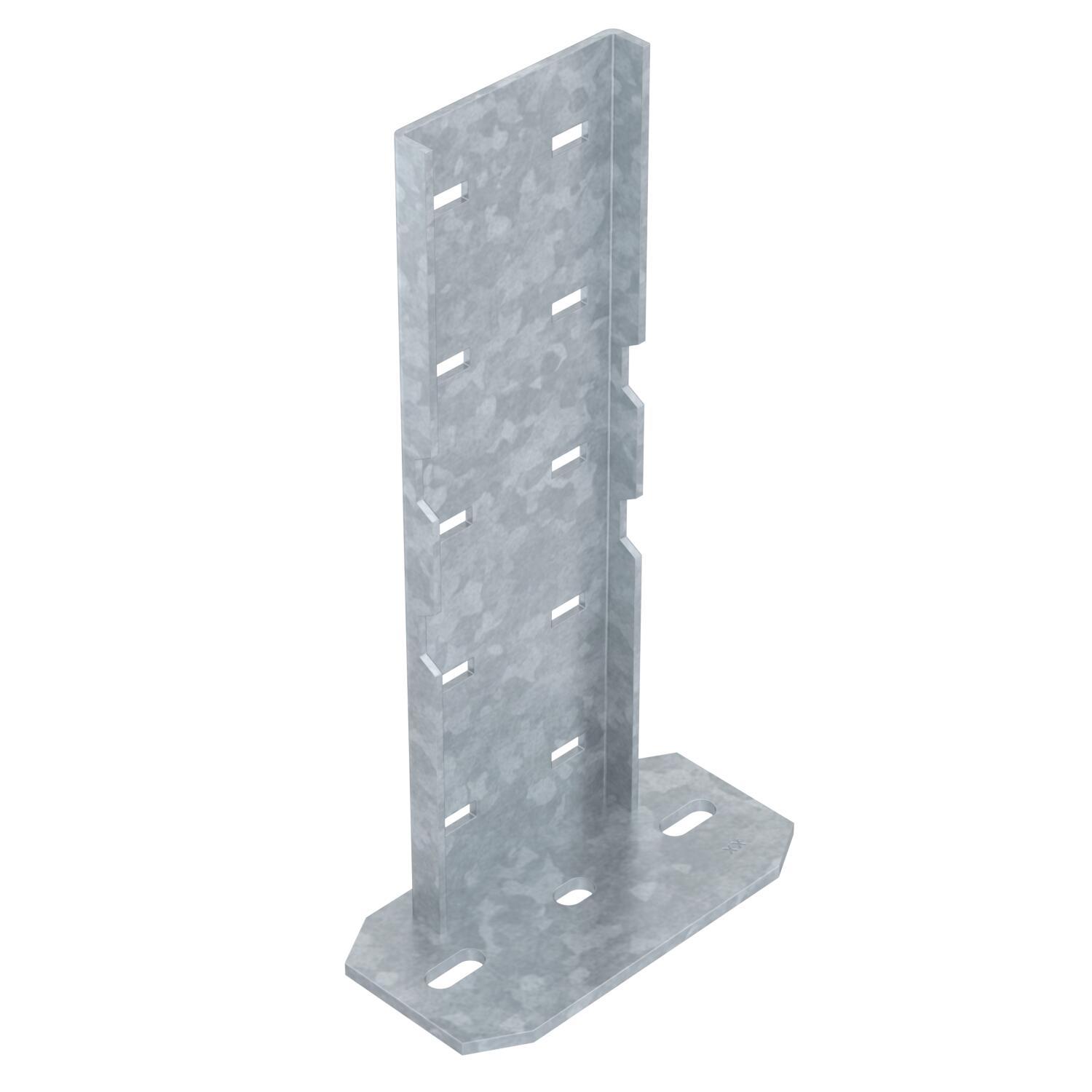

Foot plate for wide-span systems

Item no. 6232500 | EAN 4012196423583

Product description
Product description
Base plate for accepting wide span systems, for example, for vertical routing of wide span cable trays.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

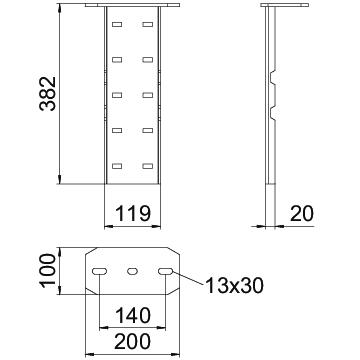

Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Colour zinc
Height 110 mm
Length 380 mm
Material Steel
Rustproof steel, pickled no
Suitable for panel fastening no
Suitable for profile shapes C profile
Surface Hot-dip galvanised
Version for Screw head plate
Width 200 mm
All types

All types

Types Item no. Quantity SSU
WFP 110 FT 6232500
1 piece
WFP 160 FT 6232510
1 piece
