Frame cassette for cord outlet, RKS, nominal size 350-3, stainless steel 15 | 13
morepic-1 morepic-2

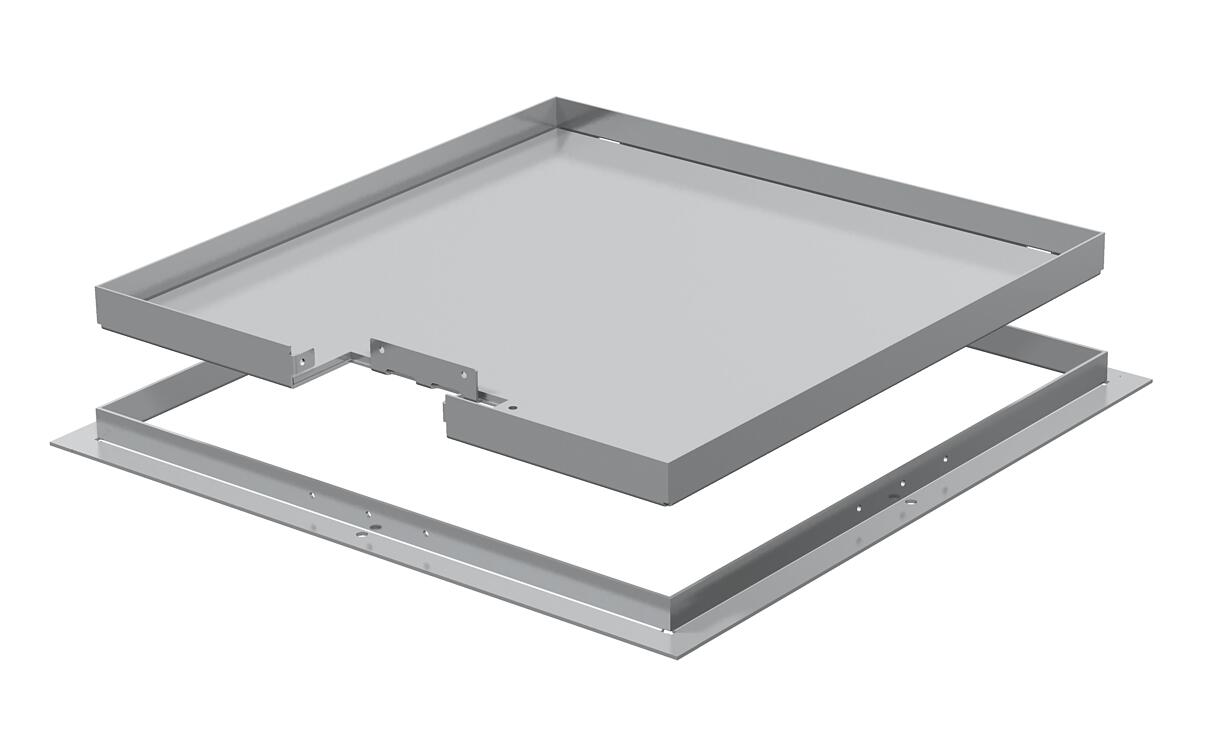

Frame cassette for cord outlet, RKS, nominal size 350-3, stainless steel

Item no. 7406526 | EAN 4012195108719

Product description
Product description
Frame cassette for cord outlet, for UZD350-3, for the installation of accessories in dry or wet-cleaned floors for indoor use.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Device support to accept mounting boxes no

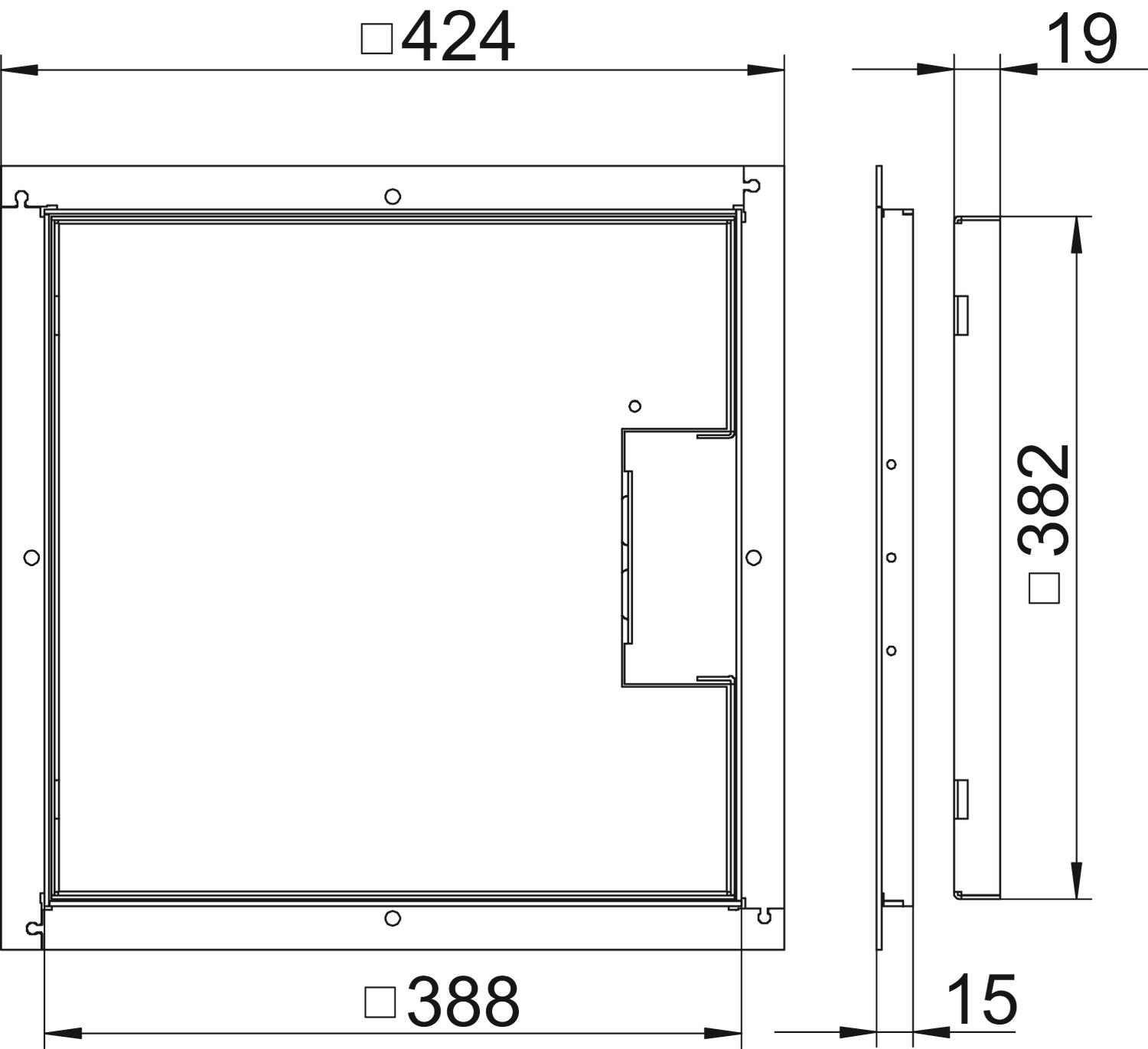

Dimension 383x383x15
Dimension A 424 mm
Dimension B 388 mm
Dimension C 382 mm
Dimension h 15 mm
Floor care Dry
Floor covering thickness 13 mm
Material Stainless steel
Number of cable outlets 1
All types

All types

Types Dimension h Floor covering thickness Item no. Quantity SSU
RKS V3 15 15 mm 13 mm 7406526
1 piece
RKS V3 20 20 mm 18 mm 7406530
1 piece
RKS V3 25 25 mm 23 mm 7406534
1 piece
Downloads

Download

Download

EU declaration of conformity RKS V3 15 / 7406526 , 0.11MB , pdf
Download
UK Declaration of Conformity RKS V3 15 / 7406526 , 0.14MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
