Frame cassette for cord outlet, RKS, nominal size 350-3, stainless steel 20 | 18
morepic-1 morepic-2

Frame cassette for cord outlet, RKS, nominal size 350-3, stainless steel

Item no. 7406530 | EAN 4012195108726

Product description
Product description
Frame cassette for cord outlet, for UZD350-3, for the installation of accessories in dry or wet-cleaned floors for indoor use.
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Device support to accept mounting boxes no

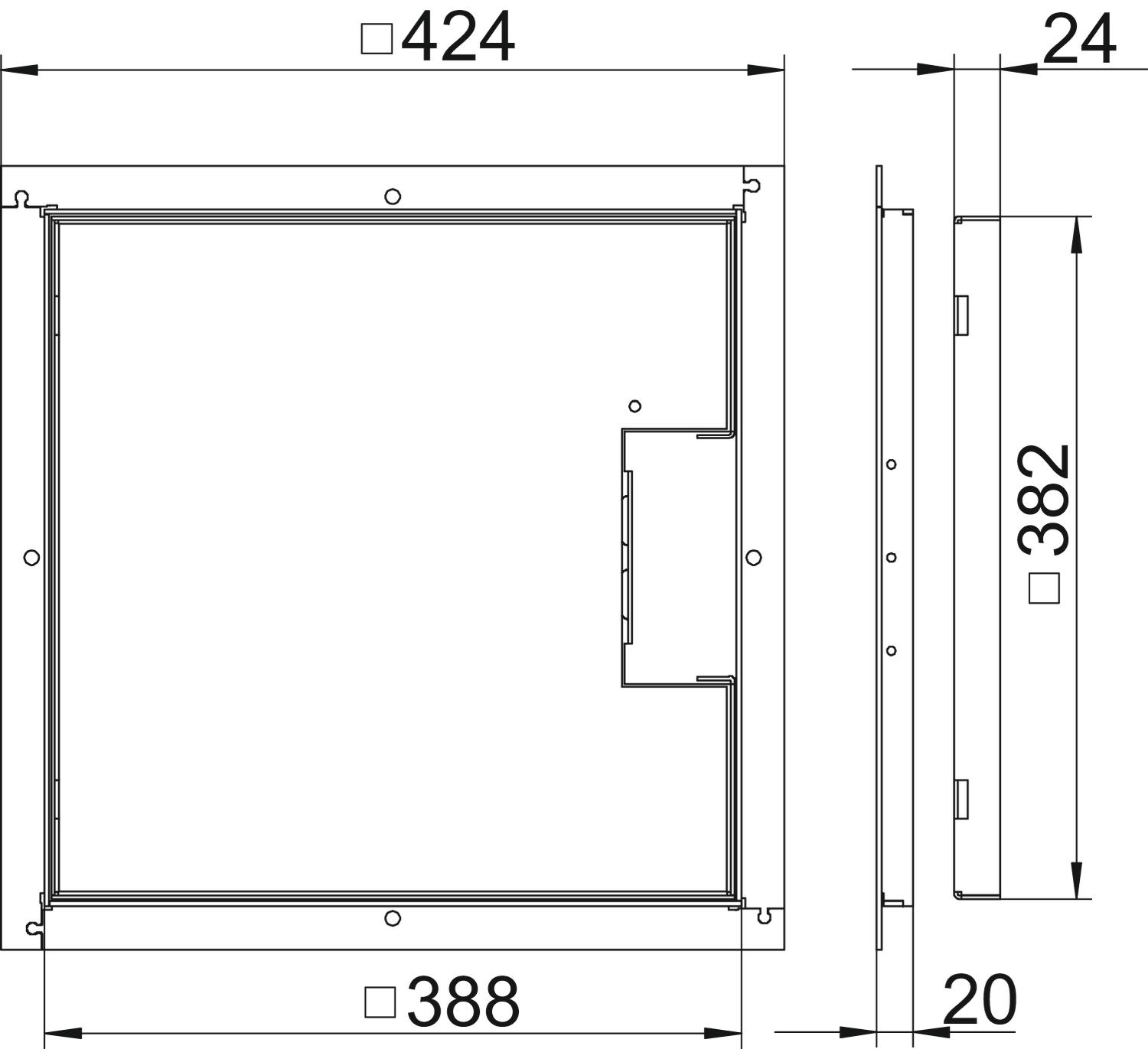

Dimension 383x383x20
Dimension A 424 mm
Dimension B 388 mm
Dimension C 382 mm
Dimension h 20 mm
Floor care Dry
Floor covering thickness 18 mm
Material Stainless steel
Number of cable outlets 1
All types

All types

Types Dimension h Floor covering thickness Item no. Quantity SSU
RKS V3 15 15 mm 13 mm 7406526
1 piece
RKS V3 20 20 mm 18 mm 7406530
1 piece
RKS V3 25 25 mm 23 mm 7406534
1 piece
Downloads

Download

EU declaration of conformity RKS V3 20 / 7406530 , 0.11MB , pdf
Download
UK Declaration of Conformity RKS V3 20 / 7406530 , 0.14MB , pdf
Download

No invitation to tender text is available for this product.
