Frame eyelet

Item no. 3472086 | EAN 4012195309550

3472086 / 869 M8X40 G
2 kN
M8
Product description

Product description

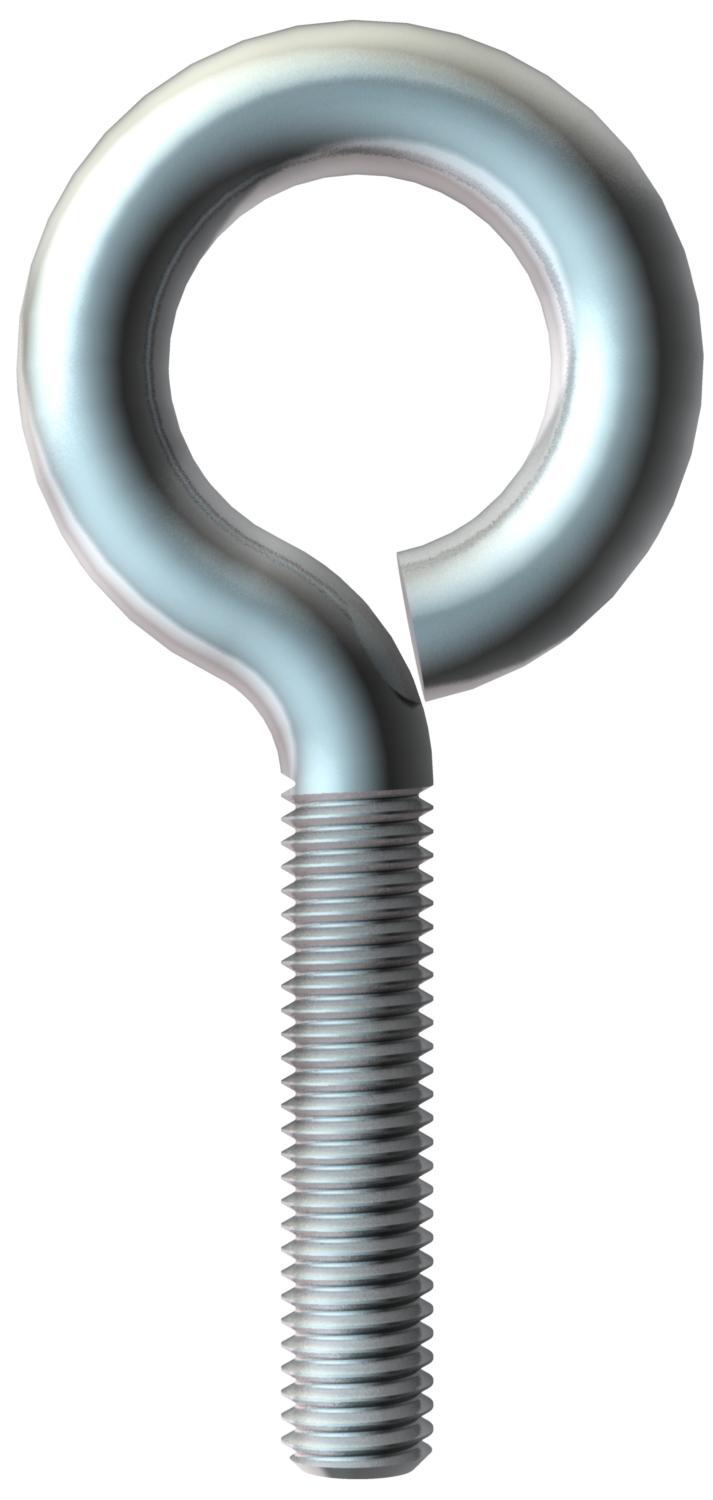

Frame eyelet M8 x 40mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 2 kN

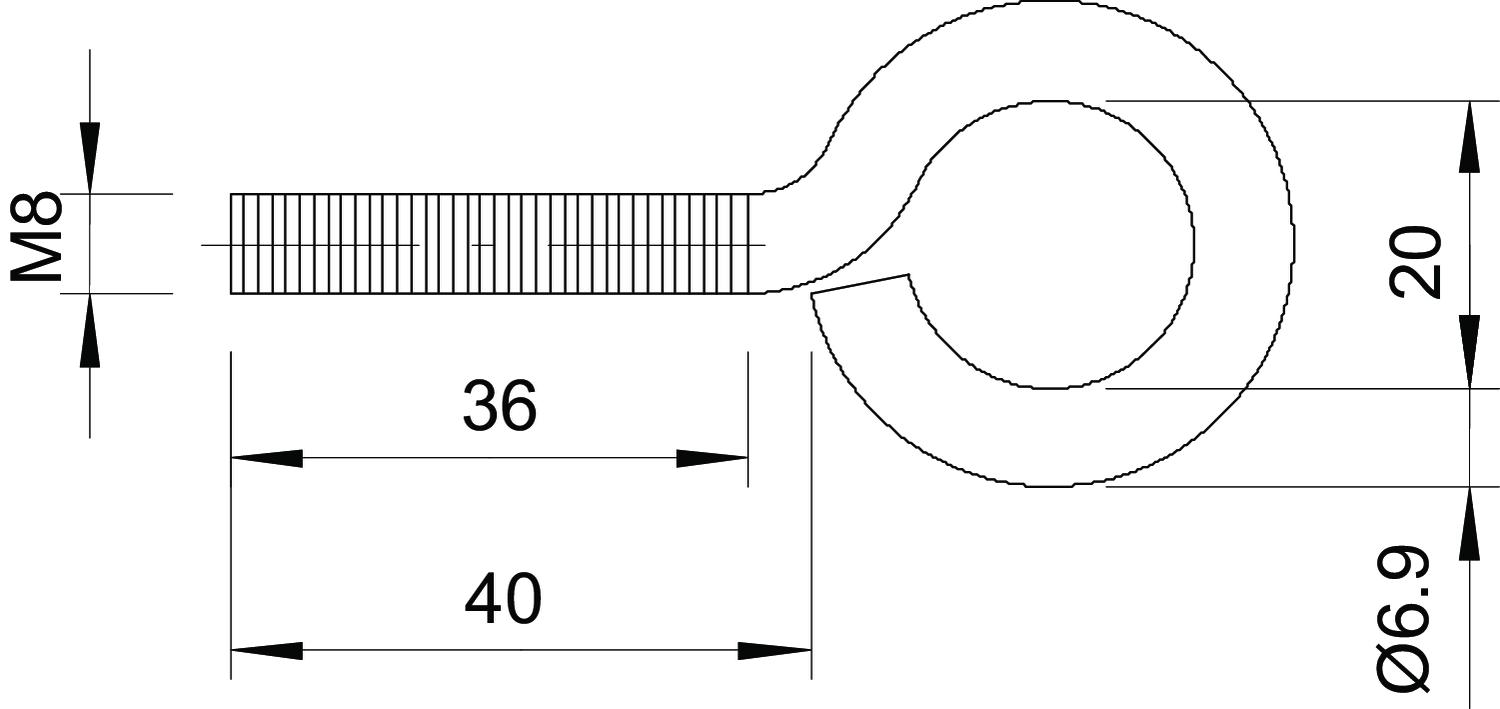

Dimension M8x40mm
hook diameter 20 mm
Length 70 mm
Material Steel
Plastic-covered no
Shank length 40
Surface Electrogalvanized
Thread M8
Thread length 36 mm
All types

All types

Types Breaking load Thread Item no. Quantity SSU
869 M8X40 G 2 kN M8 3472086
25 piece
